SANYO DENKI P30B06040HXS8R 伺服電機

1.產 品 資 料 介 紹：

 SANYO DENKI  P30B06040HXS8R 伺服電機 英文資料：

SANYO DENKI P30B0604HXS8R is a low-power AC servo motor with a rated power of 0.4kW and a rated speed of 3000rpm. Calculated using the torque formula T=9550P/n, the output torque is approximately 1.27N · m. It is designed for high precision and low inertia, and is suitable for light load scenarios such as semiconductor wafer handling arms and micro precision assembly machines that require strict power and precision.

8-15 units of this motor can achieve high-speed collaborative control through EtherCAT industrial bus, driving multi axis precision execution components, such as the pin bending mechanism of electronic chip packaging lines, which can synchronize the timing of each axis action. Combined with its low inertia characteristics, it ensures that the bending size tolerance is controlled within ± 0.01mm, improving the packaging qualification rate to over 99.8%.

Suitable for three-phase 200V-230V industrial standard power supply, with an allowable range of input voltage fluctuation of ± 10% (180V-253V), it can adapt to slight fluctuations in power supply voltage in electronic workshops without the need for additional voltage stabilization equipment, reducing the cost of circuit deployment in precision production lines.

Adopting a small-sized flange design, the body length is only about 150mm, which can be embedded inside compact equipment. With a standard shaft diameter design, it can directly adapt to lightweight elastic couplings without the need for customized modifications to the transmission system, meeting the spatial layout requirements of precision equipment.

It is seamlessly compatible with small servo drives of the same brand (such as 60BA series low-power models), supports the "automatic reading of motor parameters" function, and can quickly identify the motor model and load matching parameters after power on, avoiding manual setting errors and shortening debugging time to less than 20 minutes.

Built in 2500 line high-precision incremental encoder, combined with high-frequency sampling technology of the driver, can provide real-time feedback on the motor's operating position and speed, with a position control repeatability of ± 0.003mm, meeting the core requirements of the semiconductor industry for micrometer level positioning.

The optimized low inertia design of the rotor reduces rotational inertia, and the motor has a fast start stop response speed. The start-up time from static to rated speed only takes 0.15 seconds, which is suitable for intermittent work scenarios with frequent start stop in chip testing equipment, reducing the time required for process connection.

The body protection level reaches IP54, and oil resistant sealing strips are used at the joints of the shell. The output shaft end is equipped with a double lip sealing ring, which can effectively block trace dust and condensed water in the clean workshop, while avoiding lubricating oil leakage and pollution conditions, and is suitable for semiconductor clean room environment.

The stator winding is made of H-grade high-temperature resistant enameled wire, combined with the overheat protection function of the built-in temperature sensor. When the winding temperature exceeds 155 ℃, the power supply will be automatically cut off to avoid motor burnout caused by long-term high load operation and extend the service life to more than 15000 hours.

The overall performance is outstanding in high-precision control, low inertia response, and environmental adaptability. Whether it is a single unit used for micro precision equipment or more than 10 units deployed in batches on automated production lines in the semiconductor and electronics industries, it can provide stable and reliable power support for servo systems.

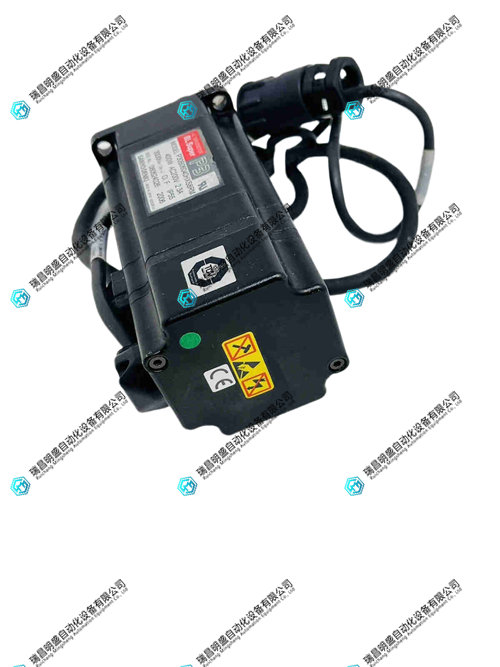

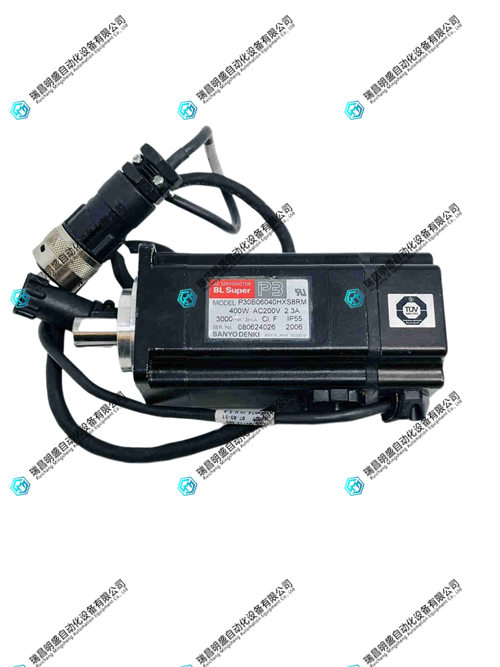

 SANYO DENKI  P30B06040HXS8R 伺服電機 產品展示

 產品視頻
