ABB 22DILE 輔助接觸器
1.產 品 資 料 介 紹：
中文資料：
22DILE 是 Eaton（伊頓） 生產的 輔助接觸器，主要用于電氣控制系統中的信號傳輸和電路切換。它通常與主接觸器或繼電器配合使用，實現遠程控制、邏輯控制和狀態指示。
主要特點
輔助控制：用于控制主電路之外的輔助電路，如指示燈、電磁閥等。
高可靠性：接觸件采用耐磨材料，確保長壽命和穩定運行。
模塊化設計：可與伊頓的DIL系列接觸器兼容，便于擴展。
緊湊結構：適合狹小空間安裝，支持 DIN 導軌 安裝。
技術規格
額定電壓：24V、110V、230V AC/DC（視型號而定）。
觸點配置：2常開（NO）+ 2常閉（NC）。
額定電流：一般為 10A，適用于低功率控制電路。
安裝方式：DIN導軌 或 螺釘安裝。
應用領域
工業自動化：用于PLC、繼電器控制系統的輔助電路控制。
電力系統：用于電氣柜、配電系統中的狀態信號切換。
機械設備：控制啟動/停止信號，輔助主接觸器工作。
22DILE 輔助接觸器結構緊湊、性能穩定，是工業和商業電控系統中的常見組件。
英文資料：
22DILE is an auxiliary contactor produced by Eaton, mainly used for signal transmission and circuit switching in electrical control systems. It is usually used in conjunction with the main contactor or relay to achieve remote control, logic control, and status indication.
main features
Auxiliary control: used to control auxiliary circuits outside the main circuit, such as indicator lights, solenoid valves, etc.
High reliability: The contact parts are made of wear-resistant materials to ensure long service life and stable operation.
Modular design: Compatible with Eaton's DIL series contactors for easy expansion.
Compact structure: suitable for installation in narrow spaces, supports DIN rail installation.
technical specifications
Rated voltage: 24V, 110V, 230V AC/DC (depending on the model).
Contact configuration: 2 normally open (NO)+2 normally closed (NC).
Rated current: generally 10A, suitable for low-power control circuits.
Installation method: DIN rail or screw installation.
application area
Industrial automation: Used for auxiliary circuit control of PLC and relay control systems.
Power system: used for switching status signals in electrical cabinets and distribution systems.
Mechanical equipment: controls start/stop signals and assists in the operation of the main contactor.
The 22DILE auxiliary contactor has a compact structure and stable performance, and is a common component in industrial and commercial electronic control systems.

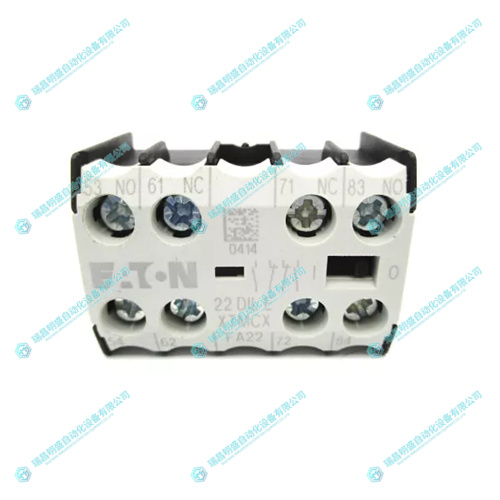

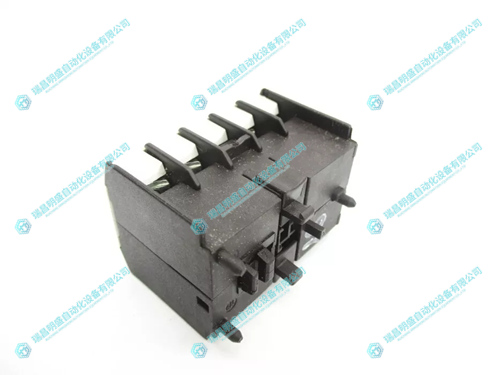

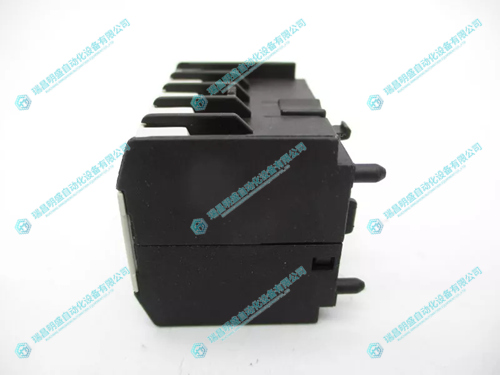

2.產 品 展 示
