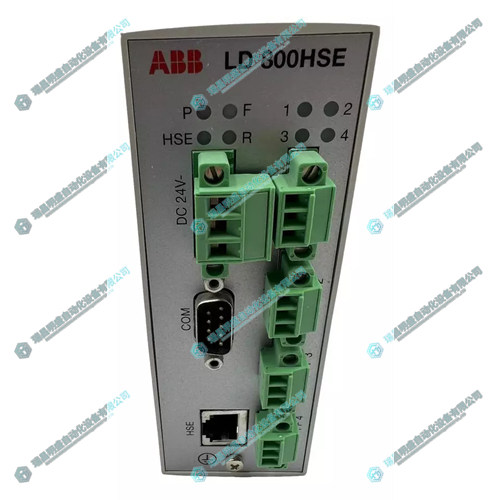

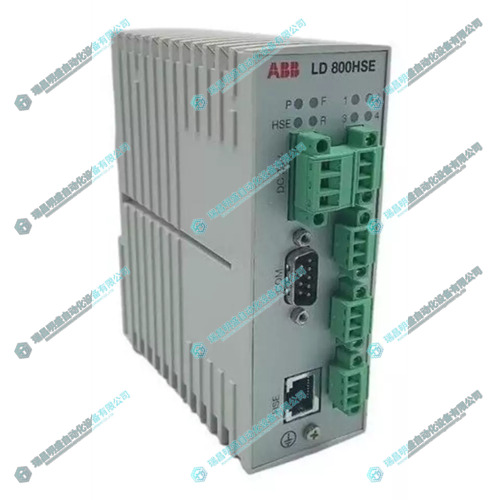

ABB LD800HSEEX 3BSE073314R1控制器模塊

1.產 品 資 料 介 紹：

中文資料：

ABB LD800HSE EX（型號：3BSE073314R1）是一款FOUNDATION Fieldbus（FF）鏈接設備，用于連接FF高速以太網（HSE）和H1設備，常用于過程自動化和工業控制系統。該設備支持四個獨立的H1鏈路和一個HSE連接器，適用于DIN導軌安裝，并具備ATEX和IECEx的Zone 2危險區域認證。

主要特點

• 通信接口

  • 1個10BASE-T/100BASE-TX以太網端口（自動感應）
  • 4個31.25 kbit/s H1現場總線接口
  • 符合FF HSE Class 42c標準，支持冗余配置

• 電源要求

  • 工作電壓：24 V DC（±20%）
  • 典型電流消耗：200 mA
  • 功耗：約4.8 W

• 環境適應性

  • 工作溫度范圍：0°C至+55°C
  • 存儲溫度范圍：-20°C至+70°C
  • 相對濕度：0%至95%（無冷凝）

• 安裝與結構

  • 適用于35 mm DIN導軌安裝
  • 需要水平安裝以確保良好通風
  • 適用于危險區域（符合ATEX和IECEx Zone 2標準）

LD800HSE EX的設計符合工業自動化高可靠性要求，確保在嚴苛環境下提供穩定的通信連接，廣泛用于過程控制、石油化工、制藥、能源等行業。

英文資料：

ABB LD800HSE EX (model: 3BSE073314R1) is a FOUNDATION Fieldbus (FF) linking device used to connect FF high-speed Ethernet (HSE) and H1 devices, commonly used in process automation and industrial control systems. This device supports four independent H1 links and one HSE connector, suitable for DIN rail installation, and has ATEX and IECEx Zone 2 hazardous area certification.

main features

communication interface

1 10BASE-T/100BASE-TX Ethernet port (auto sensing)

Four 31.25 kbit/s H1 fieldbus interfaces

Complies with FF HSE Class 42c standard and supports redundant configuration

Power requirements

Working voltage: 24 V DC (± 20%)

Typical current consumption: 200 mA

Power consumption: approximately 4.8 W

Environmental adaptability

Working temperature range: 0 ° C to+55 ° C

Storage temperature range:- 20 ° C to+70 ° C

Relative humidity: 0% to 95% (without condensation)

Installation and Structure

Suitable for 35mm DIN rail installation

Horizontal installation is required to ensure good ventilation

Suitable for hazardous areas (compliant with ATEX and IECEx Zone 2 standards)

The design of LD800HSE EX meets the high reliability requirements of industrial automation, ensuring stable communication connections in harsh environments. It is widely used in industries such as process control, petrochemicals, pharmaceuticals, and energy.
