INDRAMAT TDM1.3-050-300-W1-000 驅動模塊  是一種用于電機驅動的模塊，由 INDRAMAT（現為 Bosch Rexroth）的電動驅動系統生產。

INDRAMAT TDM1.3-050-300-W1-000 驅動模塊  詳情介紹：

INDRAMAT TDM1.3-050-300-W1-000 是一種用于電機驅動的模塊，由 INDRAMAT（現為 Bosch Rexroth）的電動驅動系統生產。它用于精確控制和驅動伺服電機，廣泛應用于工業自動化和機器人系統。以下是該驅動模塊的一些主要特點和技術規格：

主要特性

1. 高性能驅動：

• 提供精確的電機驅動控制，適用于要求高性能的自動化和運動控制應用。

2. 靈活性：

• 支持多種電機類型和控制模式，適合不同的工業需求。

3. 工業級設計：

• 設計用于工業環境，具有高耐用性和穩定性。

4. 集成控制：

• 集成了運動控制功能，可以直接與電機和其他系統集成。

技術規格

• 驅動電壓：

• 電源電壓：通常為 AC 或 DC 電源，具體電壓范圍取決于型號。TDM1.3-050-300-W1-000 的額定電壓為 300V DC。

• 電流輸出：

• 額定電流：通常為 50A 的額定電流。

• 功率：

• 功率范圍：根據電流和電壓規格，可以支持的功率范圍。

• 控制模式：

• 支持多種控制模式，如位置控制、速度控制和扭矩控制等。

• 通訊接口：

• 通常支持工業標準通訊接口，如 Profibus、Ethernet/IP、CANopen 等，便于與其他系統集成。

• 工作溫度范圍：

• 工業級設計，通常在 -10°C 到 +40°C 之間工作，具體溫度范圍取決于實際應用環境。

• 安裝方式：

• 設計為 DIN 導軌安裝或其他工業標準安裝方式，以便于集成到控制柜或設備中。

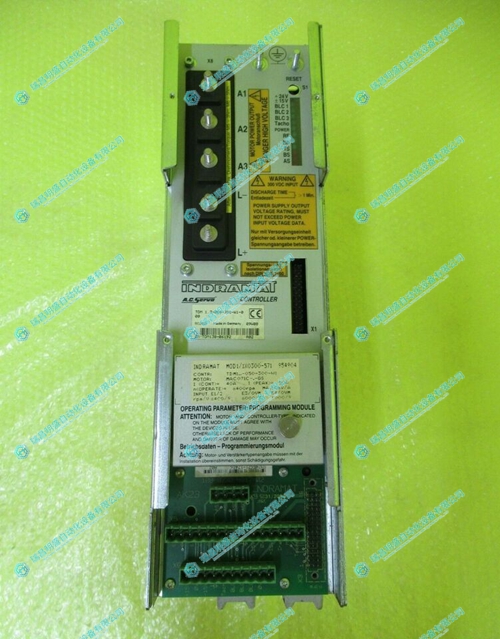

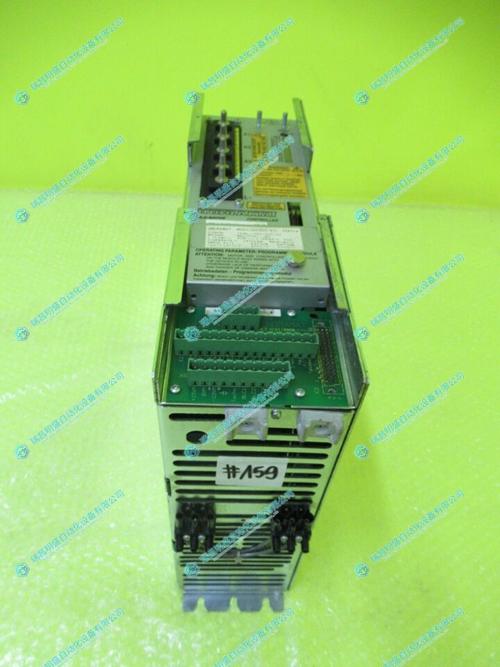

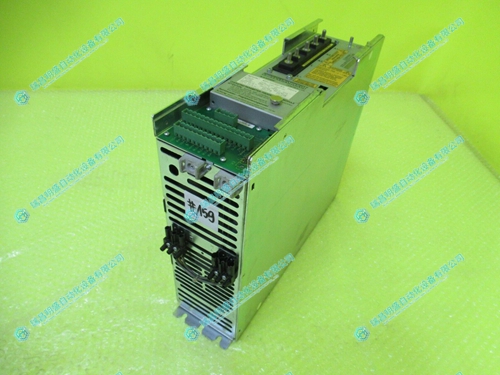

INDRAMAT TDM1.3-050-300-W1-000 驅動模塊  實物圖片：

english introduction:

INDRAMAT TDM1.3-050-300-W1-000 is a module for motor drive, produced by INDRAMAT's (now Bosch Rexroth) electric drive system. It is used for precise control and driving of servo motors, and is widely used in industrial automation and robot systems. Here are some of the main features and technical specifications of the driver module:

Main characteristics

High performance driver:

Provide precise motor drive control, suitable for high-performance automation and motion control applications.

Flexibility:

Supports multiple motor types and control modes, suitable for different industrial needs.

Industrial grade design:

Designed for industrial environments, it has high durability and stability.

Integrated control:

Integrated motion control function, which can be directly integrated with motors and other systems.

technical specifications

Driving voltage:

Power supply voltage: usually AC or DC power supply, the specific voltage range depends on the model. The rated voltage of TDM1.3-050-300-W1-000 is 300V DC.

Current output:

Rated current: Typically rated current of 50A.

Power:

Power range: The power range that can be supported based on current and voltage specifications.

Control mode:

Supports multiple control modes, such as position control, speed control, and torque control.

Communication interface:

Usually supports industrial standard communication interfaces such as Profibus, Ethernet/IP, CANopen, etc., making it easy to integrate with other systems.

Working temperature range:

Industrial grade design typically operates between -10 ° C and+40 ° C, with the specific temperature range depending on the actual application environment.

Installation method:

Designed for DIN rail installation or other industry standard installation methods to facilitate integration into control cabinets or equipment.
