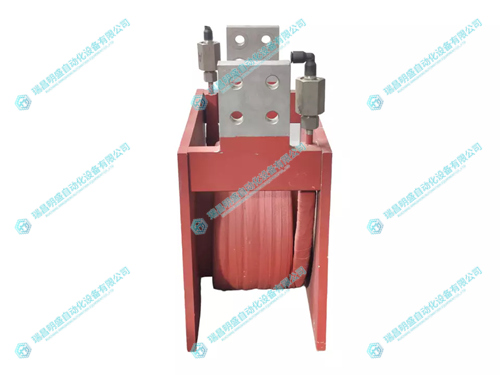

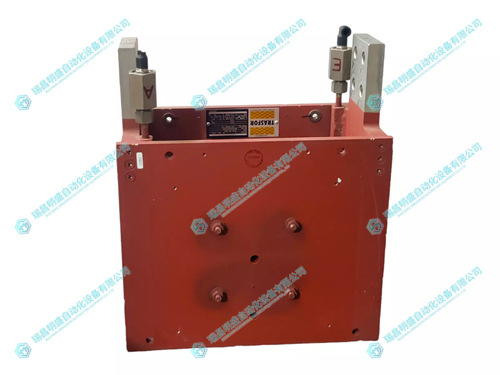

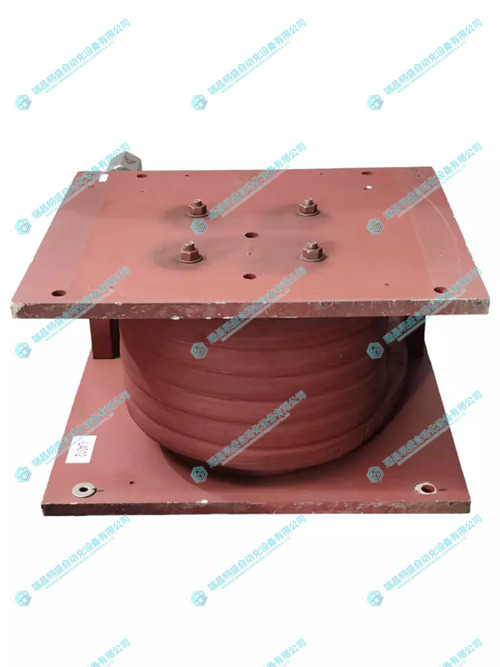

ABB 3BHB009181P0001反應器

1.產 品 資 料 介 紹：

中文資料：

3BHB009181P0001 是ABB公司生產的一款電力電子反應器（Reactor），主要用于工業變頻器、新能源變流器等系統中，實現電流平滑、諧波抑制和能量緩沖功能。以下是詳細技術分析：

1. 產品基本信息

• 型號：3BHB009181P0001（ABB物料號）

• 類型：鐵芯式/空芯式電抗器（具體類型需確認）

• 品牌：ABB（電力和自動化領域全球領導者）

• 典型應用：

  • 變頻器輸入/輸出濾波

  • 光伏/風電變流器的直流側平波

  • 工業電源的諧波治理

2. 核心功能與特點

? 電流平滑：抑制di/dt突變，保護IGBT模塊
? 諧波抑制：降低THD（總諧波失真），符合IEEE 519標準
? 能量緩沖：在瞬態過程中穩定直流母線電壓
? 高可靠性：

• 絕緣等級：通常Class H（180°C）

• 防護等級：IP00（需安裝在電柜內）或IP54（戶外型）

3. 典型應用場景

(1) 工業變頻器系統（如ABB ACS880）

• 輸入電抗器：

  • 抑制電網側諧波（如5次、7次）

  • 限制啟動沖擊電流

• 輸出電抗器：

  • 降低長電纜驅動的電機端過電壓

(2) 新能源發電

• 光伏逆變器：DC側平波電抗器

• 風電變流器：網側濾波電抗器

(3) 電能質量治理

• SVG/SVC系統中的濾波電抗器

• 工業UPS的輸入諧波抑制

英文資料：

3BHB009181P0001 is a power electronic reactor produced by ABB, mainly used in industrial frequency converters, new energy converters and other systems to achieve current smoothing, harmonic suppression and energy buffering functions. The following is a detailed technical analysis:

1. Basic product information

Model: 3BHB009181P0001 (ABB material number)

Type: Iron core/hollow core reactor (specific type to be confirmed)

Brand: ABB (Global Leader in Power and Automation)

Typical applications:

Inverter input/output filtering

DC side smoothing of photovoltaic/wind power converters

Harmonic Control of Industrial Power Supply

2. Core functions and features

?  Current smoothing: Suppressing di/dt mutations and protecting IGBT modules

?  Harmonic suppression: reduces THD (total harmonic distortion) and complies with IEEE 519 standard

?  Energy buffering: stabilizing DC bus voltage during transient processes

?  High reliability:

Insulation Class: Typically Class H (180 ° C)

Protection level: IP00 (to be installed inside the electrical cabinet) or IP54 (outdoor type)

3. Typical application scenarios

(1) Industrial frequency converter system (such as ABB ACS880)

Input reactor:

Suppress harmonics on the grid side (such as 5th and 7th order)

Limit the starting impulse current

Output reactor:

Reduce overvoltage at the motor end driven by long cables

(2) New energy generation

Photovoltaic inverter: DC side smoothing reactor

Wind power converter: grid side filtering reactor

(3) Power quality management

Filter Reactor in SVG/SVC System

Input harmonic suppression of industrial UPS
