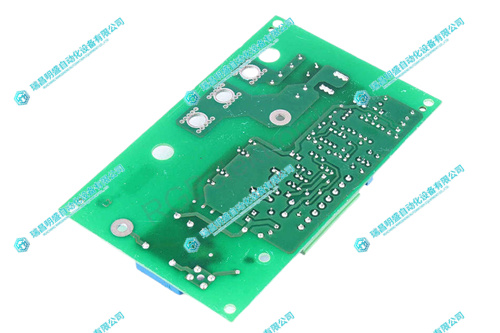

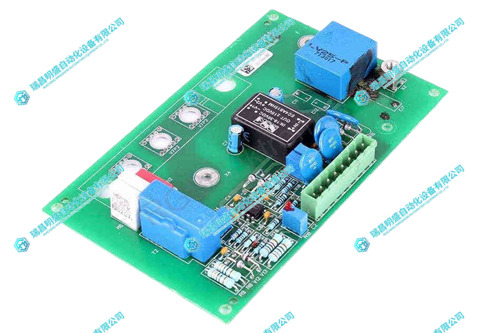

Huttinger   TE991290 ID138232激光電路板

1.產 品 資 料 介 紹：

產品概述

Huttinger TE991290（ID138232） 是一款 激光控制電路板，用于工業和科研激光系統的 信號調制與功率控制。該電路板可與 Huttinger 激光器、射頻控制模塊及功率放大器協同工作，實現 高精度激光輸出、實時控制和穩定性能。模塊設計注重 低噪聲、高可靠性和工業級耐用性。

技術參數（典型特征）

• 功能類型：激光信號調制與控制電路

• 控制接口：

  • 模擬控制信號（電壓或電流調制）

  • 數字控制接口（可選，支持遠程監控）

• 輸出特性：激光功率調節、脈沖調制及狀態監測

• 工作電源：工業標準直流供電

• 工業級設計：抗振動、抗沖擊，支持連續運行

• 尺寸與安裝：板載緊湊設計，可嵌入激光控制系統機箱或模塊化機架

• 兼容性：可與 Huttinger 系列射頻控制模塊和激光功率模塊配合使用

應用場景

1. 工業激光系統：激光切割、焊接、打標等應用的功率和調制控制

2. 科研實驗：精密激光實驗平臺

3. 醫療設備：激光治療儀器控制

4. 通信系統：激光通信設備中的調制控制

5. 軍事與航空航天：激光測距、雷達或光學系統控制

6. 工業自動化：激光加熱、材料處理等

 Huttinger  C40-0851 C40-0851.02射頻單元板  英文資料：

Product Overview

Huttinger TE991290 (ID138232) is a laser control circuit board used for signal modulation and power control in industrial and scientific laser systems. This circuit board can work in conjunction with Huttinger lasers, RF control modules, and power amplifiers to achieve high-precision laser output, real-time control, and stable performance. Module design emphasizes low noise, high reliability, and industrial grade durability.

Technical parameters (typical features)

Function type: Laser signal modulation and control circuit

Control interface:

Analog control signal (voltage or current modulation)

Digital control interface (optional, supports remote monitoring)

Output characteristics: laser power regulation, pulse modulation, and status monitoring

Working power supply: Industrial standard DC power supply

Industrial grade design: anti vibration, anti impact, supports continuous operation

Size and Installation: Compact onboard design, can be embedded in laser control system chassis or modular rack

Compatibility: Can be used in conjunction with Huttinger series RF control modules and laser power modules

Application scenarios

Industrial laser systems: power and modulation control for applications such as laser cutting, welding, and marking

Research experiment: Precision laser experimental platform

Medical equipment: laser therapy instrument control

Communication System: Modulation Control in Laser Communication Equipment

Military and Aerospace: Laser Ranging, Radar or Optical System Control

Industrial automation: laser heating, material processing, etc

Huttinger  C40-0851 C40-0851.02射頻單元板  產品展示

 產品視頻
