NI PXIE-5122 779967-03高速數字化儀卡
1.產 品 資 料 介 紹：
中文資料：
NI PXIe-5122（部件號 779967-03）是一款由國家儀器（National Instruments）生產的高性能 PXI Express 示波器模塊。它提供兩個通道，模擬帶寬為 100 MHz，采樣率最高可達 100 MS/s，分辨率為 14 位。該設備適用于需要高分辨率、低噪聲測量的時域和頻域應用。
主要特點：
高分辨率和低噪聲：提供高達 14 位的分辨率和低噪聲性能，確保精確的信號捕獲和分析。
靈活的輸入配置：支持多種耦合、阻抗和電壓范圍設置，滿足不同應用需求。
多種觸發模式：包括邊沿、數字、立即和軟件觸發模式，增強了觸發靈活性。
大容量板載內存：配備高達 512 MB 的板載內存，支持長時間的數據采集。
高級同步和數據流功能：支持 PXI 同步和數據流功能，適用于多通道和混合信號應用。
應用領域：
雷達和超聲波測試：適用于需要短觸發重裝載時間的應用，如雷達和超聲波測試。
事件識別：在需要捕獲和分析快速事件的應用中表現出色。
英文資料：
NI PXIe-5122 (part number 779967-03) is a high-performance PXI Express oscilloscope module produced by National Instruments. It provides two channels, with an analog bandwidth of 100 MHz, a sampling rate of up to 100 MS/s, and a resolution of 14 bits. This device is suitable for time-domain and frequency-domain applications that require high-resolution, low-noise measurements.
Main features:
High resolution and low noise: Provides up to 14 bit resolution and low noise performance, ensuring accurate signal capture and analysis.
Flexible input configuration: supports multiple coupling, impedance, and voltage range settings to meet different application requirements.
Multiple triggering modes: including edge, digital, immediate, and software triggering modes, enhancing triggering flexibility.
Large capacity onboard memory: equipped with up to 512 MB of onboard memory, supporting long-term data acquisition.
Advanced synchronization and data streaming functions: Supports PXI synchronization and data streaming functions, suitable for multi-channel and mixed signal applications.
Application areas:
Radar and Ultrasonic Testing: Suitable for applications that require short trigger reload times, such as radar and ultrasonic testing.
Event recognition: performs well in applications that require capturing and analyzing rapid events.

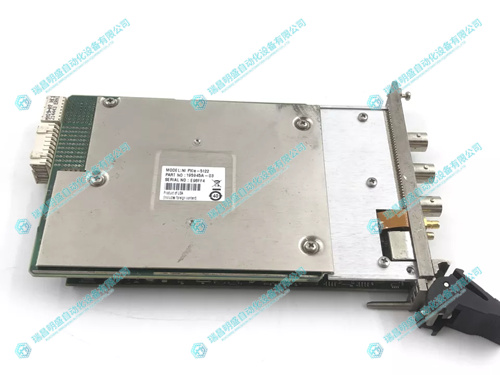

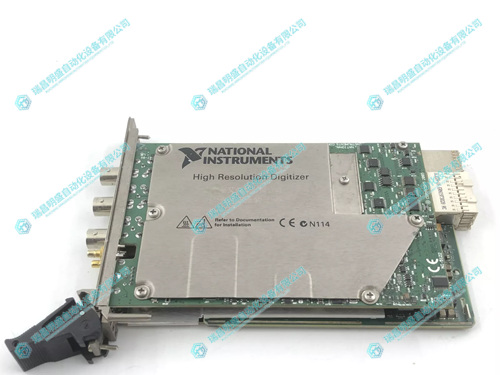

2.產 品 展 示
