VIBRO-METER 200-566-000-113 通信板
1.產 品 資 料 介 紹：
中文資料：
一、基本信息
產品型號：200-566-000-113
產品名稱：通信板（Communication Interface Board）
制造商：VIBRO-METER（現為 Meggitt 旗下品牌）
設備類別：狀態監測系統接口模塊
典型應用：工業旋轉機械狀態監測系統中的數據通信中繼或采集接口模塊
二、功能概述
VIBRO-METER 200-566-000-113 是一款專為機械振動監測系統設計的通信接口板，主要作為監測系統與上層控制系統（如 DCS、PLC、SCADA）之間的信號傳輸橋梁。它能夠?qū)?lái)自傳感器模塊（如速度、加速度、位移等）或前端采集單元的模擬/數字信號，轉換為標準通信協議進行傳輸。
三、技術特點
| 項目 | 參數說明 |
|---|---|
| 通信功能 | 提供與上位系統（如分析主機或SCADA系統）之間的數據通信功能 |
| 接口類型 | 可能支持 RS-232 / RS-422 / RS-485 / Modbus / CAN（根據具體配置） |
| 安裝方式 | 通常安裝于 19 英寸機架或?qū)Ｓ脵C(jī)箱內部 |
| 適配系統 | Vibro-Meter VM600、VM600Mk2、COMPASS 等狀態監測平臺 |
| 兼容模塊 | 可配合 MPC4、IOC4T、CPUM Mk2 等核心模塊聯動 |
| 工作電源 | 通常為 24V DC（需結合系統供電設計） |
| 隔離保護 | 通信接口帶電氣隔離設計，防止系統內干擾 |
| 使用環境 | 工業級耐溫防干擾，適用于機組控制室、渦輪發電設備監測間等復雜電磁環境 |
英文資料：
1、 Basic Information
Product model: 200-566-000-113
Product Name: Communication Interface Board
Manufacturer: VIBRO-METER (now a brand under Meggitt)
Equipment category: Interface module for status monitoring system
Typical application: Data communication relay or acquisition interface module in industrial rotating machinery status monitoring system
2、 Function Overview
VIBRO-METER 200-566-000-113 is a communication interface board designed specifically for mechanical vibration monitoring systems, primarily serving as a signal transmission bridge between the monitoring system and upper level control systems such as DCS, PLC, SCADA. It can convert analog/digital signals from sensor modules (such as speed, acceleration, displacement, etc.) or front-end acquisition units into standard communication protocols for transmission.
3、 Technical features
Project parameter description
The communication function provides data communication between the upper system (such as the analysis host or SCADA system)
Interface types may support RS-232/RS-422/RS-485/Modbus/CAN (depending on specific configuration)
The installation method is usually installed inside a 19 inch rack or dedicated chassis
Adaptation system Vibro Meter VM600, VM600Mk2, COMPASS and other status monitoring platforms
Compatible modules can be linked with core modules such as MPC4, IOC4T, CPUM Mk2, etc
The working power supply is usually 24V DC (depending on the system power supply design)
Isolation protection communication interface with electrical isolation design to prevent interference within the system
Industrial grade temperature resistance and anti-interference are suitable for complex electromagnetic environments such as unit control rooms and turbine power generation equipment monitoring rooms

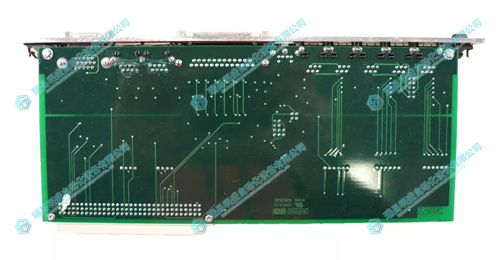

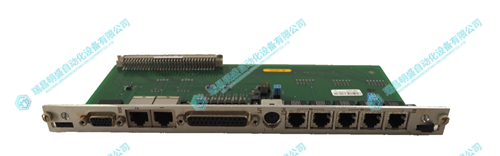

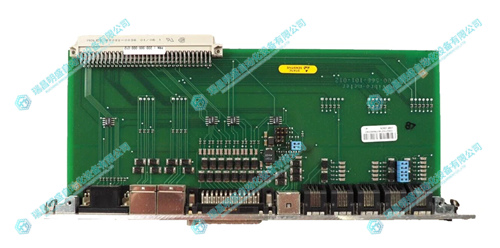

2.產 品 展 示
