Extreme Networks 220-24t-10GE2網絡交換機
1.產 品 資 料 介 紹：
- 高密度千兆接入設計：Extreme Networks 220-24t-10GE2 配備 24 個 10/100/1000Base-T 電口，作為非 PoE 機型專注純數據接入場景，可同時連接 PC、服務器、無線 AP 等 24 臺終端設備，適配企業辦公區、數據機房的高密度接入需求。
- 萬兆上行擴展通道：機身預留 2 個 10G Base-X SFP + 光口，支持萬兆光纖鏈路連接，相比千兆上行帶寬提升 10 倍，可高效銜接核心交換機或存儲設備，滿足高清視頻流、大數據備份等高速傳輸場景。
- 全端口線速轉發能力：依據端口性能計算公式，24 個千兆口理論需 35.71 Mpps 轉發速率，220-24t-10GE2 以 96 Gbps 交換容量與 71.4 Mpps 轉發速率，實現所有千兆口與萬兆口線速處理，確保數據傳輸無阻塞。
- 二三層融合轉發架構：具備完整二層特性（VLAN、鏈路聚合等），同時支持 IPv4/IPv6 靜態路由及 RIP 動態路由協議，可靈活劃分網絡網段，適配中小型企業的多層網絡架構需求。
- 冗余電源擴展支持：搭載固定內置 AC 電源，同時預留冗余電源插槽，可擴展接入 Extreme 專用冗余電源模塊，通過雙電源并聯架構實現故障自動切換，保障財務系統、業務平臺等核心場景的持續供電。
- 堆疊與電源協同冗余：支持多臺設備堆疊形成虛擬集群，每臺 220-24t-10GE2 均可獨立擴展冗余電源，構建分布式供電保障體系，單臺電源故障時集群仍能通過其他節點維持運行，提升整體網絡可用性。
Extreme Networks 220-24t-10GE2網絡交換機 英文資料：
1、 Port configuration and expansion capability
High density gigabit access design: Extreme Networks 220-24-10GE2 is equipped with 24 10/100/1000Base-T electrical ports. As a non PoE model, it focuses on pure data access scenarios and can simultaneously connect 24 terminal devices such as PCs, servers, and wireless APs, adapting to the high-density access needs of enterprise office areas and data centers.
10 Gigabit Upstream Expansion Channel: The body is reserved with 2 10G Base-X SFP+optical ports, supporting 10 times the bandwidth of gigabit upstream links. It can efficiently connect core switches or storage devices and meet high-speed transmission scenarios such as high-definition video streaming and big data backup.
2、 Core performance and forwarding efficiency
Full port line speed forwarding capability: According to the port performance calculation formula, 24 gigabit ports theoretically require a forwarding rate of 35.71 Mpps. 220-24-10GE2 has a switching capacity of 96 Gbps and a forwarding rate of 71.4 Mpps, achieving line speed processing for all gigabit and ten gigabit ports to ensure unobstructed data transmission.
Layer 2 and 3 Fusion Forwarding Architecture: It has complete layer 2 features (VLAN, link aggregation, etc.), supports IPv4/IPv6 static routing and RIP dynamic routing protocols, and can flexibly divide network segments to meet the multi-layer network architecture needs of small and medium-sized enterprises.
3、 Reliability and redundancy design
Redundant power supply expansion support: Equipped with a fixed built-in AC power supply and reserved redundant power supply slots, it can be extended to access Extreme dedicated redundant power supply modules. Through a dual power parallel architecture, automatic fault switching is achieved to ensure continuous power supply for core scenarios such as financial systems and business platforms.
Stacking and Power Supply Collaborative Redundancy: Supports stacking multiple devices to form a virtual cluster, and each 220-24-10GE2 can independently expand redundant power supplies, building a distributed power supply guarantee system. In the event of a single power supply failure, the cluster can still maintain operation through other nodes, improving overall network availability.

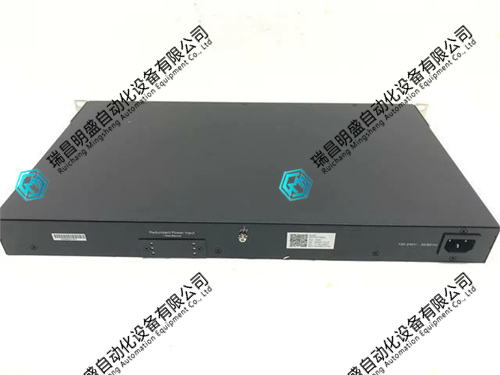

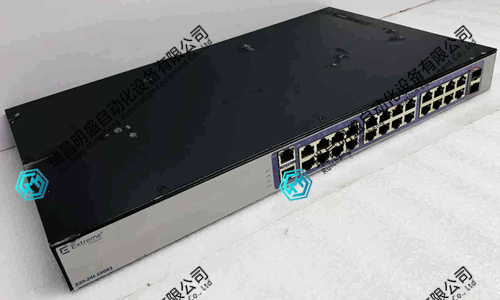

Extreme Networks 220-24t-10GE2網絡交換機 產品展示
