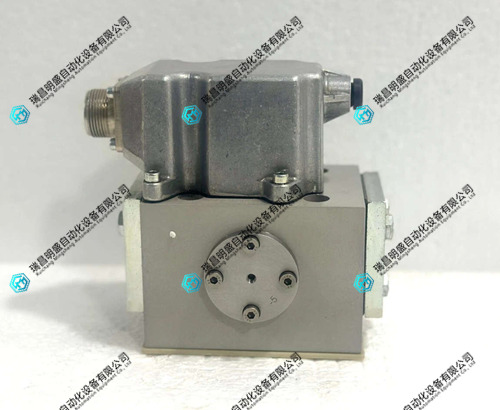

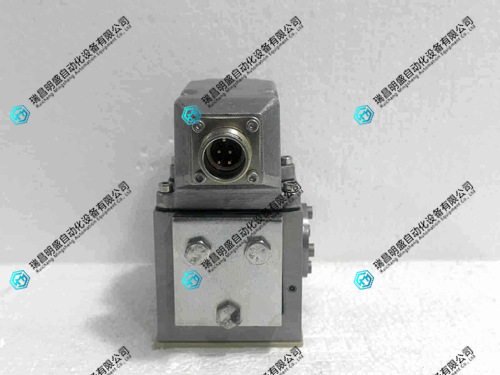

MOOG G631伺服閥
1.產 品 資 料 介 紹：
- 兩級電液放大架構：Moog G631 采用先導級與輸出級組合的兩級設計，先導級由干式力矩馬達驅動雙噴嘴擋板閥，通過低摩擦結構提升響應靈敏度；輸出級為四通滑閥，借助懸臂彈簧桿實現閥芯位置機械反饋，相比直動式設計在大流量場景下更具控制穩定性。
- 標準化集成設計：安裝底面符合 ISO 4401 標準，可直接適配工業設備的標準化閥塊接口，部分型號提供第五油口選項，支持獨立先導油源控制，靈活滿足不同液壓系統的集成需求，降低改裝成本。
- 維護友好型結構：先導閥配備可現場更換的圓盤過濾器，無需拆解閥體即可完成濾芯維護，減少液壓油污染導致的故障風險；閥芯與閥套采用精密配合工藝，組件互換性強，縮短停機維修時間。
- 寬量程壓力流量適配：供油口最大工作壓力可達 31.5MPa（部分型號支持 35MPa），在 7MPa 壓降下額定流量覆蓋 3.8-76L/min，最大流量可至 150L/min，能匹配從精密測試設備到重型液壓執行機構的多功率需求。
- 高動態響應特性：100% 階躍響應時間僅 10-15ms（210bar 工況下），頻率響應達 40-60Hz，干式力矩馬達的低摩擦設計大幅降低信號滯后，可快速跟隨指令調整流量，適配高速運動控制場景。
- 高精度控制指標：滯環誤差低于 0.5%，分辨率優于 0.1%，通過機械反饋閉環確保閥芯位移與輸入電流精準對應，在壓力、速度閉環控制系統中可實現微米級調節精度。
- 伺服放大器精準匹配：需搭配外部伺服放大器使用，適配 ±15mA 或 ±50mA 額定控制信號，與 Moog 0062 系列等放大器的電流輸出特性高度兼容，通過放大器的 PWM 驅動與雙閉環控制，進一步提升系統整體精度。
- 惡劣環境耐受能力：油液與環境溫度適應范圍寬達 - 29℃至 135℃，閥體采用高強度合金材料，可抵御振動、沖擊及液壓油污染影響，適配航空航天測試臺、汽車制造等嚴苛工況。
MOOG G631伺服閥 英文資料：
1、 Infrastructure and Design Characteristics
Two stage electro-hydraulic amplification architecture: Moog G631 adopts a two-stage design combining a pilot stage and an output stage. The pilot stage is driven by a dry torque motor to form a dual nozzle baffle valve, which enhances response sensitivity through a low friction structure; The output stage is a four-way slide valve, which uses a cantilever spring rod to achieve mechanical feedback of the valve core position. Compared with the direct acting design, it has more control stability in high flow scenarios.
Standardized integrated design: The installation bottom meets the ISO 4401 standard and can directly adapt to the standardized valve block interface of industrial equipment. Some models offer a fifth oil port option and support independent pilot oil source control, flexibly meeting the integration needs of different hydraulic systems and reducing modification costs.
Maintenance friendly structure: The pilot valve is equipped with a disc filter that can be replaced on site, and the filter element maintenance can be completed without disassembling the valve body, reducing the risk of failure caused by hydraulic oil pollution; The valve core and valve sleeve adopt precision matching technology, with strong component interchangeability, which shortens the downtime for maintenance.
2、 Core performance and control accuracy
Wide range pressure and flow adaptation: The maximum working pressure of the oil supply port can reach 31.5MPa (some models support 35MPa), and the rated flow rate covers 3.8-76L/min under a pressure ｄｒｏｐ of 7MPa. The maximum flow rate can reach 150L/min, which can match the multi power requirements from precision testing equipment to heavy-duty hydraulic actuators.
High dynamic response characteristics: The 100% step response time is only 10-15ms (under 210bar operating conditions), and the frequency response reaches 40-60Hz. The low friction design of the dry torque motor greatly reduces signal lag and can quickly adjust the flow rate according to instructions, adapting to high-speed motion control scenarios.
High precision control indicators: hysteresis error less than 0.5%, resolution better than 0.1%, mechanical feedback closed-loop ensures accurate correspondence between valve core displacement and input current, and micrometer level adjustment accuracy can be achieved in pressure and speed closed-loop control systems.
3、 Adaptability and System Collaboration
Precise matching of servo amplifier: It needs to be used in conjunction with an external servo amplifier to adapt to ± 15mA or ± 50mA rated control signals. It is highly compatible with the current output characteristics of amplifiers such as Moog 0062 series, and further improves the overall accuracy of the system through PWM drive and dual closed-loop control of the amplifier.
Endurance to harsh environments: The oil and environmental temperature can adapt to a wide range of -29 ℃ to 135 ℃. The valve body is made of high-strength alloy material, which can resist vibration, impact, and hydraulic oil pollution, and is suitable for harsh working conditions such as aerospace test benches and automotive manufacturing.
