MOOG 77-159氣門閥
1.產 品 資 料 介 紹：
- 電液驅動集成架構：Moog 77-159 氣門閥采用 “力矩馬達 + 液壓執行” 一體化設計，核心由永磁力矩馬達、雙噴嘴擋板先導級與滑閥執行級組成，相比傳統機械氣門省去凸輪軸傳動結構，可通過電信號直接控制氣門開度，適配發動機可變氣門正時（VVT）系統的柔性調節需求。
- 發動機工況適配設計：閥體采用緊湊型輕量化結構，重量控制在 200-300g 區間，適配發動機缸蓋狹小安裝空間；安裝接口符合汽車行業標準化尺寸，可直接集成于柴油或汽油發動機的配氣機構，降低改裝適配成本。
- 抗污染密封結構：閥芯與閥套采用間隙密封配合，表面經氮化硬化處理提升耐磨性，配合可更換的進口防塵密封圈，能抵御發動機艙內油污、粉塵侵蝕，減少因雜質導致的閥芯卡滯故障。
- 寬域壓力適配能力：最大工作壓力可達 21MPa，適配發動機液壓系統的典型壓力范圍，在 5-18MPa 區間內均能保持穩定的氣門驅動精度，滿足怠速、加速、高速等不同工況下的配氣需求。
- 毫秒級動態響應：100% 階躍響應時間≤8ms，頻率響應達 50Hz 以上，力矩馬達的低摩擦設計大幅降低信號滯后，可快速跟隨 ECU 指令調整氣門開啟 / 關閉時機，保障發動機在變工況下的動力輸出平順性。
- 高精度開度控制：滯環誤差低于 0.3%，氣門開度分辨率達 0.1mm，通過閥芯位置機械反饋形成閉環控制，確保不同轉速下氣門升程與正時的精準匹配，助力發動機實現低油耗與高功率的平衡。
- 故障安全保護機制：內置機械零偏結構，當控制信號丟失或斷電時，彈簧力可驅動閥芯復位至 “氣門關閉” 狀態，防止氣門突開導致的發動機超速風險，提升動力系統運行安全性。
- ECU 精準協同適配：支持 0-5V 模擬信號或 PWM 脈沖信號輸入，可直接與發動機 ECU 控制系統對接，無需額外信號轉換模塊，通過 ECU 的實時工況計算，實現氣門參數的動態優化調節。
MOOG 77-159氣門閥 英文資料：
1、 Infrastructure and Design Characteristics
Integrated architecture of electro-hydraulic drive: The Moog 77-159 valve adopts an integrated design of "torque motor+hydraulic execution", consisting of a permanent magnet torque motor, a dual nozzle baffle pilot stage, and a slide valve execution stage. Compared with traditional mechanical valves, it eliminates the camshaft transmission structure and can directly control the valve opening through electrical signals, adapting to the flexible adjustment requirements of the engine's variable valve timing (VVT) system.
Engine operating condition adaptation design: The valve body adopts a compact and lightweight structure, with a weight controlled within the range of 200-300g, suitable for the narrow installation space of the engine cylinder head; The installation interface conforms to the standardized dimensions of the automotive industry and can be directly integrated into the valve mechanism of diesel or gasoline engines, reducing the cost of modification and adaptation.
Anti pollution sealing structure: The valve core and valve sleeve adopt a gap sealing fit, and the surface is treated with nitride hardening to improve wear resistance. Combined with replaceable imported dust-proof sealing rings, it can resist oil and dust erosion in the engine compartment and reduce valve core jamming faults caused by impurities.
2、 Core performance and control accuracy
Wide range pressure adaptation capability: The maximum working pressure can reach 21MPa, and it can adapt to the typical pressure range of the engine hydraulic system. It can maintain stable valve driving accuracy within the range of 5-18MPa, meeting the valve control requirements under different working conditions such as idle, acceleration, and high speed.
Millisecond level dynamic response: 100% step response time ≤ 8ms, frequency response above 50Hz, low friction design of torque motor significantly reduces signal lag, can quickly follow ECU instructions to adjust valve opening/closing timing, ensuring smooth power output of the engine under variable operating conditions.
High precision opening control: hysteresis error is less than 0.3%, valve opening resolution reaches 0.1mm, and closed-loop control is formed through mechanical feedback of valve core position to ensure precise matching of valve lift and timing at different speeds, helping the engine achieve a balance between low fuel consumption and high power.
3、 Security and system collaboration
Fault safety protection mechanism: Built in mechanical zero bias structure. When the control signal is lost or power is cut off, the spring force can drive the valve core to reset to the "valve closed" state, preventing the risk of engine overspeed caused by sudden valve opening and improving the safety of power system operation.
ECU precise collaborative adaptation: supports 0-5V analog signal or PWM pulse signal input, can be directly connected to the engine ECU control system, without the need for additional signal conversion modules, and dynamically optimizes and adjusts valve parameters through real-time working condition calculation of the ECU.

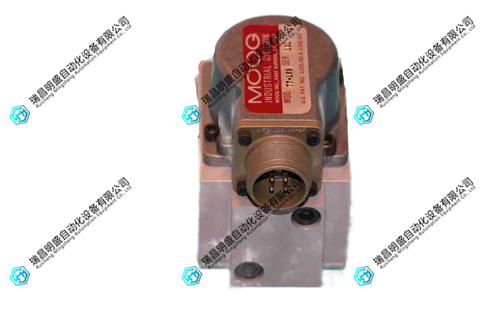

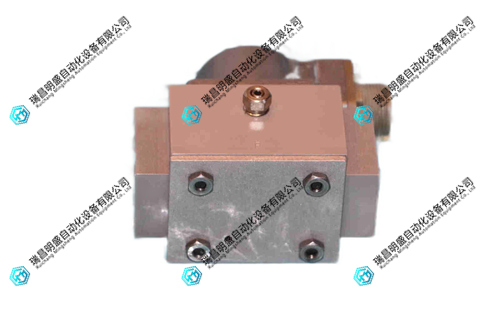

MOOG 77-159氣門閥 產品展示
產品視頻
