TRICONEX 3511脈沖輸入模塊
1.產 品 資 料 介 紹：
- 高精度脈沖采集：TRICONEX 3511 脈沖輸入模塊專為脈沖信號設計，支持 0-10kHz 脈沖輸入，采集精度達 ±1 個脈沖，能精準捕捉編碼器、流量計等設備的脈沖信號，適配轉速、流量計量場景。
- 多通道獨立監測：TRICONEX 3511 集成 8 路獨立脈沖輸入通道，每路可單獨設置采集參數，互不干擾，能同時監測多個脈沖源數據，滿足多設備同步計量需求。
- 三重冗余?？煽?/span>：TRICONEX 3511 沿用品牌標志性 TMR 架構，三個獨立通道同步采集并校驗脈沖數據，單個通道故障不影響結果準確性，符合 SIL 3 安全標準，高危場景可用。
- 快速脈沖響應：TRICONEX 3511 的脈沖信號響應時間低至 10μs，能快速捕捉高頻脈沖變化，比普通脈沖輸入模塊響應快 30%，適合對脈沖時效性要求高的高速設備監測場景。
- 抗干擾能力強：TRICONEX 3511 的信號通道具備 1500V DC 隔離防護，能抵御電磁輻射、電網波動，在變頻器密集、電機多的車間，脈沖信號誤讀率低于 0.01%。
- 全面故障保護：TRICONEX 3511 自帶過壓、過流保護，輸入脈沖異常或電壓超標時，自動切斷該路信號，避免模塊損壞，無需額外加裝保護元件，降低維護成本。
- 支持在線維護：TRICONEX 3511 可帶電熱插拔，系統運行中能更換模塊或校準采集參數，不用停線操作，尤其適合石油、化工等連續生產場景，提升設備利用率。
- 狀態直觀可視：TRICONEX 3511 的每路通道都配 LED 指示燈，正常采集亮綠燈、故障亮紅燈，還能通過系統日志記錄脈沖異常數據，快速定位問題，減少排查時間。
- 寬溫環境適配：TRICONEX 3511 的工作溫度覆蓋 - 40℃至 70℃，電路板做防潮涂層，能適應 95% 無凝露高濕度、多粉塵環境，不用額外裝溫控或防塵設備。
- 無縫對接系統：TRICONEX 3511 可直接接入 TRICONEX TMR 安全控制系統，無需修改核心程序，插裝后即可為控制器傳輸脈沖數據，快速搭建脈沖監測鏈路。
TRICONEX 3511脈沖輸入模塊 英文資料：
High precision pulse acquisition: The TRICONEX 3511 pulse input module is designed specifically for pulse signals, supporting 0-10kHz pulse input with an acquisition accuracy of ± 1 pulse. It can accurately capture pulse signals from encoders, flow meters, and other devices, and is suitable for speed and flow measurement scenarios.
Multi channel independent monitoring: The TRICONEX 3511 integrates 8 independent pulse input channels, each of which can set separate acquisition parameters without interference, and can simultaneously monitor data from multiple pulse sources to meet the synchronous measurement needs of multiple devices.
Triple redundancy ensures reliability: The TRICONEX 3511 adopts the brand's iconic TMR architecture, with three independent channels synchronously collecting and verifying pulse data. A single channel failure does not affect the accuracy of the results and meets SIL 3 safety standards, making it suitable for high-risk scenarios.
Fast pulse response: The TRICONEX 3511 has a pulse signal response time as low as 10 μ s, which can quickly capture high-frequency pulse changes and respond 30% faster than ordinary pulse input modules. It is suitable for high-speed equipment monitoring scenarios that require high pulse timeliness.
Strong anti-interference ability: The signal channel of TriconeX 3511 has 1500V DC isolation protection, which can resist electromagnetic radiation and power grid fluctuations. In workshops with dense frequency converters and multiple motors, the pulse signal misreading rate is less than 0.01%.
Comprehensive fault protection: The TRICONEX 3511 comes with overvoltage and overcurrent protection. When the input pulse is abnormal or the voltage exceeds the standard, the signal will be automatically cut off to avoid module damage, without the need for additional protective components, reducing maintenance costs.
Support online maintenance: The TRICONEX 3511 can be equipped with hot swappable technology, allowing for module replacement or parameter calibration during system operation without the need for downtime. It is particularly suitable for continuous production scenarios such as petroleum and chemical industries, improving equipment utilization.
Visual and intuitive status: Each channel of the TRICONEX 3511 is equipped with LED indicator lights, which can collect normal data with green lights and fault lights with red lights. It can also record pulse abnormal data through system logs, quickly locate problems, and reduce troubleshooting time.
Wide temperature environment adaptation: The working temperature range of the TRICONEX 3511 is from -40 ℃ to 70 ℃. The circuit board is coated with a moisture-proof layer, which can adapt to high humidity and dusty environments with 95% no condensation, without the need for additional temperature control or dust prevention equipment.
Seamless integration system: The TriconeX 3511 can be directly connected to the TriconeX TMR safety control system without modifying the core program. After insertion, it can transmit pulse data to the controller and quickly establish a pulse monitoring link.

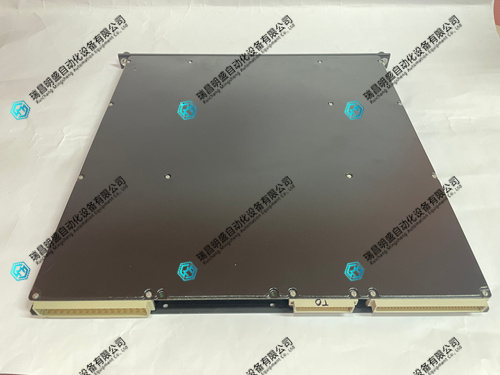

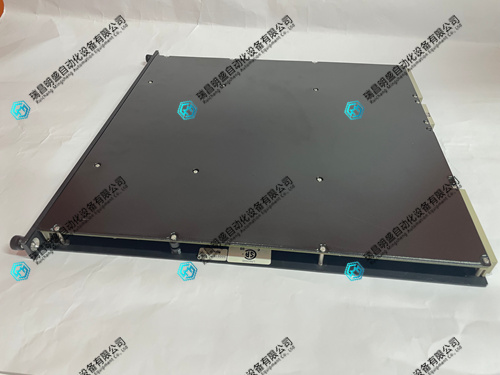

TRICONEX 3511脈沖輸入模塊 產品展示
