TRICONEX 3503E直流數字輸入模塊
1.產 品 資 料 介 紹：
- 精準直流信號采集：專為直流信號設計，支持 24V DC 標準輸入，能精準捕捉傳感器、開關等設備的狀態信號，采集誤差小于 ±0.5%，適配工業設備狀態監測場景。
- 多通道并行處理：集成 16 路獨立數字輸入通道，每路可單獨監測信號，不用共享資源，能同時采集多個設備狀態，滿足多點位同步監測需求。
- 三重冗余保穩定：沿用 TRICONEX TMR 架構，三個獨立通道同步采集并校驗信號，單個通道故障不影響數據準確性，符合 SIL 3 安全標準，高危場景可用。
- 快速信號響應：輸入信號響應時間低至 1ms，能迅速捕捉設備狀態變化，比普通模塊快 20%，適合對信號時效性要求高的緊急聯鎖場景。
- 自帶抗干擾保護：信號通道具備 1500V DC 隔離能力，能抵御電磁輻射、電網波動，在變頻器多、電機密集的車間，信號誤判率低于 0.01%。
- 全面故障防護：自帶過壓、過流保護，輸入電壓異常時自動切斷該路信號，避免模塊損壞，不用額外加裝保護元件，降低維護成本。
- 支持在線維護：可帶電熱插拔，系統運行中能更換模塊或校準參數，不用停線操作，尤其適合石油、化工等連續生產場景，提升設備利用率。
- 智能狀態可視：每路通道配 LED 指示燈，信號正常亮綠燈、故障亮紅燈，還能通過系統日志記錄異常，快速定位問題，減少排查時間。
- 寬溫環境適配：工作溫度覆蓋 - 40℃至 70℃，電路板做防潮涂層，能適應高濕度（95% 無凝露）、多粉塵環境，不用額外裝溫控設備。
- 無縫對接系統：可直接接入 TRICONEX TMR 安全控制系統，不用修改核心程序，插裝后即可為 I/O 模塊、控制器傳輸信號，快速搭建監測鏈路。
TRICONEX 3503E直流數字輸入模塊 英文資料：
Accurate DC signal acquisition: designed specifically for DC signals, supporting 24V DC standard input, capable of accurately capturing status signals of sensors, switches, and other devices, with an acquisition error of less than ± 0.5%, suitable for industrial equipment status monitoring scenarios.
Multi channel parallel processing: integrates 16 independent digital input channels, each of which can monitor signals separately without sharing resources, and can simultaneously collect the status of multiple devices to meet the requirements of multi-point synchronous monitoring.
Triple redundancy ensures stability: using the TRICONEX TMR architecture, three independent channels synchronously collect and verify signals, and a single channel failure does not affect data accuracy. It meets SIL 3 safety standards and can be used in high-risk scenarios.
Fast signal response: With an input signal response time as low as 1ms, it can quickly capture changes in device status, which is 20% faster than ordinary modules. It is suitable for emergency interlocking scenarios that require high signal timeliness.
Equipped with anti-interference protection: The signal channel has 1500V DC isolation capability, which can resist electromagnetic radiation and power grid fluctuations. In workshops with multiple frequency converters and dense motors, the signal misjudgment rate is less than 0.01%.
Comprehensive fault protection: Equipped with overvoltage and overcurrent protection, it automatically cuts off the signal when the input voltage is abnormal, avoiding module damage and reducing maintenance costs without the need for additional protective components.
Support online maintenance: It can be equipped with electric hot plugging, and modules can be replaced or parameters can be calibrated during system operation without downtime. It is especially suitable for continuous production scenarios such as petroleum and chemical industries, improving equipment utilization.
Intelligent status visualization: Each channel is equipped with LED indicator lights, with green lights for normal signals and red lights for faults. It can also record anomalies through system logs, quickly locate problems, and reduce troubleshooting time.
Wide temperature environment adaptation: The working temperature covers -40 ℃ to 70 ℃, and the circuit board is coated with moisture-proof material, which can adapt to high humidity (95% no condensation) and dusty environments without the need for additional temperature control equipment.
Seamless integration system: It can be directly connected to the TRICONEX TMR safety control system without modifying the core program. After insertion, it can transmit signals to I/O modules and controllers, and quickly build monitoring links.

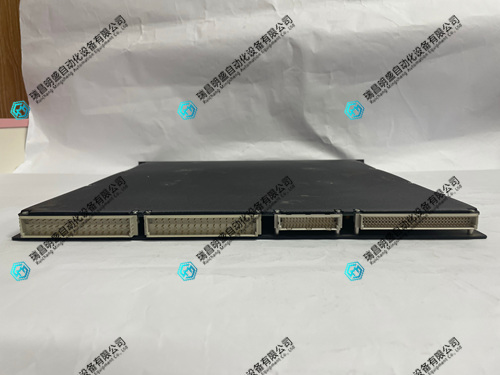

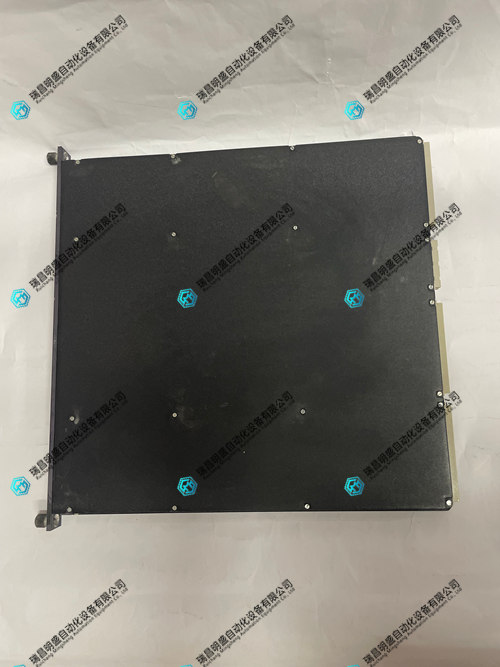

TRICONEX 3503E直流數字輸入模塊 產品展示
