TRICONEX 3700A分析模塊
1.產 品 資 料 介 紹：
- 高精度數據采集：能精準采集模擬量信號，測量誤差小于 ±0.1%，適配壓力、溫度等工業參數監測，數據準確度滿足油氣、化工等高精度需求。
- 多信號類型兼容：支持 4-20mA、0-10V 等常見工業信號，不用額外加信號轉換器，可直接對接傳感器、變送器，適配多種監測場景。
- 三重冗余保穩定：采用 TMR 架構，三個獨立通道同步處理數據，單個通道故障不影響分析結果，符合 SIL 3 安全標準，適合高危環境使用。
- 快速分析響應：數據處理延遲低至毫秒級，能實時輸出分析結果，異常參數出現時，可快速觸發預警，比普通模塊響應速度快 20%。
- 自帶故障診斷：實時監測自身硬件狀態，通道異常、信號失真時會主動報警，還能記錄故障信息，后期排查原因更便捷，減少維修時間。
- 抗干擾能力強：信號通道具備 1500V DC 隔離保護，能抵御電磁輻射、電壓波動，在電機多、變頻器密集的車間，數據傳輸仍穩定。
- 寬溫環境適配：工作溫度范圍 - 40℃至 70℃，電路板做了防潮處理，高濕度、多粉塵環境下也能正常工作，不用額外裝防護設備。
- 支持在線維護：可帶電插拔，系統運行時能更換模塊或校準參數，不用停線，維護過程不影響生產，提升設備利用率。
- 靈活對接系統：能無縫接入 TRICONEX TMR 安全控制系統，支持 Modbus TCP/IP 協議，和 PLC、監控平臺連接簡單，不用大量修改程序。
- 高耐用設計：外殼用防腐蝕金屬材質，關鍵元器件選工業級產品，平均無故障工作時間超 15 萬小時，適合長期連續監測場景。
TRICONEX 3700A分析模塊 英文資料：
High precision data collection: It can accurately collect analog signals with a measurement error of less than ± 0.1%, suitable for monitoring industrial parameters such as pressure and temperature, and the data accuracy meets the high-precision requirements of oil and gas, chemical and other industries.
Multi signal type compatibility: Supports common industrial signals such as 4-20mA and 0-10V, without the need for additional signal converters. It can directly interface with sensors and transmitters and adapt to various monitoring scenarios.
Triple redundancy ensures stability: adopting TMR architecture, three independent channels synchronously process data, and a single channel failure does not affect the analysis results. It meets SIL 3 safety standards and is suitable for use in high-risk environments.
Quick analysis response: With data processing latency as low as milliseconds, it can output analysis results in real-time. When abnormal parameters occur, it can quickly trigger warnings, which is 20% faster than the response speed of ordinary modules.
Equipped with fault diagnosis: Real time monitoring of its own hardware status, it will actively alarm when there are channel abnormalities or signal distortions, and can also record fault information, making it more convenient to investigate the cause later and reducing maintenance time.
Strong anti-interference ability: The signal channel has 1500V DC isolation protection, which can resist electromagnetic radiation and voltage fluctuations. In workshops with many motors and dense frequency converters, data transmission is still stable.
Wide temperature environment adaptation: The working temperature range is from 40 ℃ to 70 ℃. The circuit board has undergone moisture-proof treatment and can work normally even in high humidity and dusty environments without the need for additional protective equipment.
Support online maintenance: It can be plugged and unplugged with power, and modules or parameters can be replaced or calibrated during system operation without stopping the line. The maintenance process does not affect production and improves equipment utilization.
Flexible docking system: It can seamlessly integrate with the TRICONEX TMR safety control system, support Modbus TCP/IP protocol, and is easy to connect with PLCs and monitoring platforms without extensive program modifications.
High durability design: The casing is made of corrosion-resistant metal material, and key components are selected from industrial grade products. The average time between failures exceeds 150000 hours, making it suitable for long-term continuous monitoring scenarios.

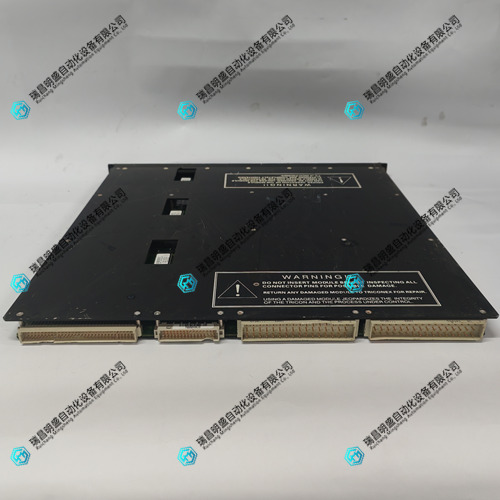

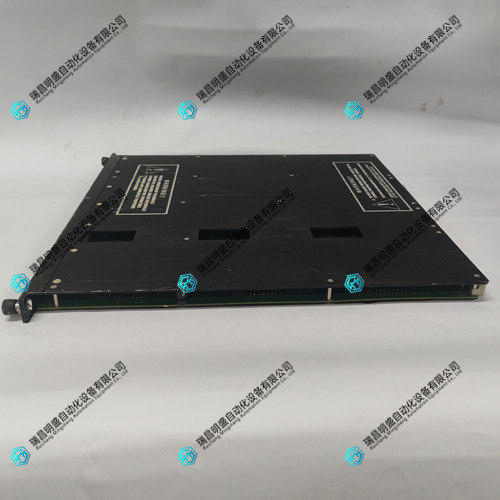

TRICONEX 3700A分析模塊 產品展示
產品視頻
