Extreme Networks  X440-G2千兆交換機

1.產 品 資 料 介 紹：

Extreme Networks X440-G2千兆交換機  英文資料：

Specification Gigabit Port Configuration: The X440-G2 series offers 12/24/48 port Gigabit electrical port models, covering non PoE and PoE+versions (such as 48P models). The PoE+model is compatible with the IEEE 802.3at standard, with a maximum power supply of 30W per port, and is compatible with IP cameras, wireless APs, and other terminals; Simultaneously equipped with 4-6 SFP/SFP+combo ports, balancing the flexibility of copper cable and fiber optic access, accurately matching high-density access scenarios at the edge of the park.

Upgradeable 10G uplink: All models come standard with 4 upgradable 10G ports (software authorization required), support SFP+optical module expansion, single port speed increased from 1G to 10G, and uplink bandwidth increased by 10 times. Combined with fiber optic transmission, it can achieve cross building and long-distance interconnection, easily connect with core layer switches, and meet the high bandwidth requirements for high-definition video and big data transmission.

ExtremeXOS system driver: equipped with the Extreme flagship ExtremeXOS operating system, providing continuous operation guarantee and efficient operation and maintenance capabilities, compatible with the management logic of the entire range of Extreme network devices. Supports intelligent layer 2 switching and layer 3 IPv4/IPv6 routing, seamlessly integrating into the existing Extreme campus network architecture to ensure functional consistency.

Full port line speed forwarding performance: adopting non blocking design, the 48 port model has a switching capacity of 130.9Gbps, a forwarding rate of 176Mpps, and all gigabit ports support line speed processing. Compatible with jumbo frames, reducing transmission latency for large files, and adapting to low latency services such as distributed storage and video surveillance.

Flexible stacking and expansion: Supports stacking up to 8 switches, with a single stacking bandwidth of 40G, and can virtualize multiple devices into a single logical node. After stacking, unified management and configuration greatly simplify the operation and maintenance complexity of multi area networks in the park, while improving the flexibility of port expansion.

Cloud based intelligent management: Supports centralized control of ExtremeCloud IQ and ExtremeCloud IQ Site Engine, achieving zero touch deployment (ZTP), and new devices can be automatically configured and launched upon power on. Simultaneously providing Web GUI, CLI command line, and SNMP v3 protocol to meet the dual management needs of cloud and local.

Comprehensive security protection: Built in role-based access policies and bidirectional ACL access control lists, capable of filtering traffic based on IP, port, and protocol. Support 802.1x authentication and MAC address binding to prevent unauthorized device access and DDoS attacks, ensuring the security of the campus intranet.

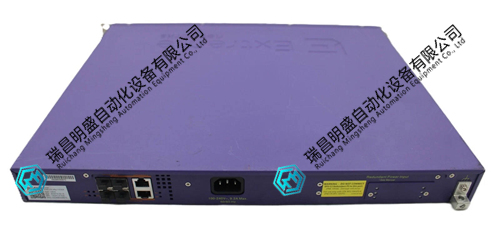

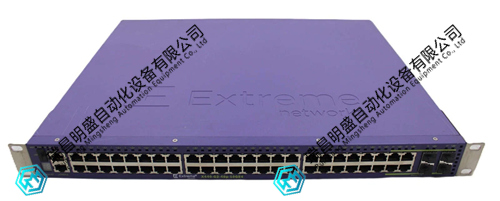

Extreme Networks  X440-G2千兆交換機 產品展示

 產品視頻
