MOOG D633-313B ?伺服閥
1.產 品 資 料 介 紹：
- 直動式 DDV 核心架構：MOOG D633-313B 延續 D633 系列經典直動式（DDV）設計，由永磁線性力馬達直接驅動閥芯，省去傳統伺服閥的噴嘴擋板先導級，無需外部先導油源即可實現雙向位移控制。相比多級結構減少約 30% 傳動環節，閥體體積更緊湊，同時大幅降低信號傳遞滯后，適配對響應速度要求嚴苛的閉環控制系統，如精密機床液壓伺服機構。
- 集成化電控模塊設計：內置閥芯位置控制電路板與脈寬調制（PWM）驅動電路，將信號處理、功率放大與閥芯反饋功能高度集成。電路板采用工業級 SMD 貼片工藝，支持 18-32V DC 寬壓輸入，可直接接收外部控制指令，無需額外配置驅動模塊，顯著簡化系統布線與集成流程，降低設備安裝調試難度。
- 抗污染精密結構：閥芯與閥套選用 AISI 440C 馬氏體不銹鋼材質，經超精密研磨處理，配合間隙小于 1μm，確保液壓油流場穩定。表面通過氮化硬化工藝提升耐磨性 3 倍以上，內置 10μm 過濾級濾芯，可耐受 NAS 6 級污染度液壓油，搭配可更換防塵密封圈，有效抵御粉塵、雜質侵入，降低惡劣工況下閥芯卡滯故障風險。
- 高壓適配與流量特性：最大工作壓力可達 35MPa，在 7MPa 閥壓降條件下，額定流量覆蓋 5-80L/min（根據具體參數細分），能為冶金設備油缸、液壓試驗臺作動器等提供穩定動力輸出。即便在 1-5bar 低壓差工況下，仍可保持流量輸出穩定性，適配多壓力等級場景，如注塑機模具開合控制、重型設備液壓執行機構驅動。
- 高頻響動態響應：頻率響應寬達 40-60Hz（±100% 輸入信號），100% 階躍響應時間≤15ms，部分工況下可低至 5ms。線性力馬達采用低摩擦設計，配合閥芯位置實時反饋，能快速跟隨控制指令調整流量，有效抑制液壓系統動態滯后，保障高速運動設備（如自動化生產線機械臂）的控制精度。
- 高精度控制指標：分辨率≤0.1%，滯環誤差低于 0.2%，通過線性位置傳感器（LVDT）實現閥芯位置閉環控制，確保輸入信號與流量輸出精準對應。最小可控流量低至 0.1L/min，可滿足半導體設備微進給、精密壓力調節等精細化需求，如光學元件加工設備的液壓伺服定位控制。
MOOG D633-313B ?伺服閥 英文資料：
1、 Infrastructure and Design Characteristics
Direct acting DDV core architecture: MOOG D633-313B continues the classic direct acting (DDV) design of the D633 series, with a permanent magnet linear force motor directly driving the valve core, eliminating the need for the nozzle baffle pilot stage of traditional servo valves, and achieving bidirectional displacement control without the need for an external pilot oil source. Compared to the multi-stage structure, which reduces the transmission links by about 30%, the valve body volume is more compact, and the signal transmission lag is significantly reduced, making it suitable for closed-loop control systems with strict response speed requirements, such as precision machine tool hydraulic servo mechanisms.
Integrated electronic control module design: Built in valve core position control circuit board and pulse width modulation (PWM) drive circuit, highly integrating signal processing, power amplification, and valve core feedback functions. The circuit board adopts industrial grade SMD surface mount technology and supports 18-32V DC wide voltage input. It can directly receive external control instructions without the need for additional driver modules, significantly simplifying the system wiring and integration process, and reducing the difficulty of equipment installation and debugging.
Anti pollution precision structure: The valve core and valve sleeve are made of AISI 440C martensitic stainless steel material, which has undergone ultra precision grinding treatment with a clearance of less than 1 μ m to ensure stable hydraulic oil flow field. The wear resistance of the surface is improved by more than 3 times through nitriding hardening process, and it is equipped with a 10 μ m filter element that can withstand NAS level 6 pollution hydraulic oil. It is matched with replaceable dust-proof sealing rings to effectively resist the invasion of dust and impurities, and reduce the risk of valve core jamming failure under harsh working conditions.
2、 Core performance and control accuracy
High pressure adaptation and flow characteristics: The maximum working pressure can reach 35MPa, and under the condition of 7MPa valve pressure ｄｒｏｐ, the rated flow covers 5-80L/min (subdivided according to specific parameters), which can provide stable power output for metallurgical equipment oil cylinders, hydraulic test bench actuators, etc. Even under low pressure ｄｒｏｐ conditions of 1-5 bar, the flow output stability can still be maintained, suitable for multi pressure level scenarios such as injection molding machine mold opening and closing control, and heavy-duty equipment hydraulic actuator drive.
High frequency dynamic response: The frequency response is as wide as 40-60Hz (± 100% input signal), with a 100% step response time of ≤ 15ms, and can be as low as 5ms under some working conditions. The linear force motor adopts a low friction design, coupled with real-time feedback of the valve core position, which can quickly follow the control instructions to adjust the flow rate, effectively suppress the dynamic lag of the hydraulic system, and ensure the control accuracy of high-speed moving equipment (such as automated production line robotic arms).
High precision control indicators: resolution ≤ 0.1%, hysteresis error below 0.2%, closed-loop control of valve core position achieved through linear position sensor (LVDT), ensuring accurate correspondence between input signal and flow output. The minimum controllable flow rate is as low as 0.1L/min, which can meet the refined needs of semiconductor equipment such as micro feed and precision pressure regulation, such as hydraulic servo positioning control for optical component processing equipment.

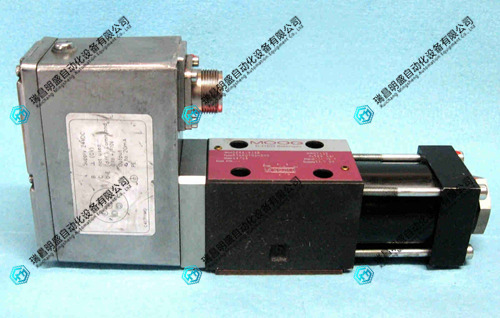

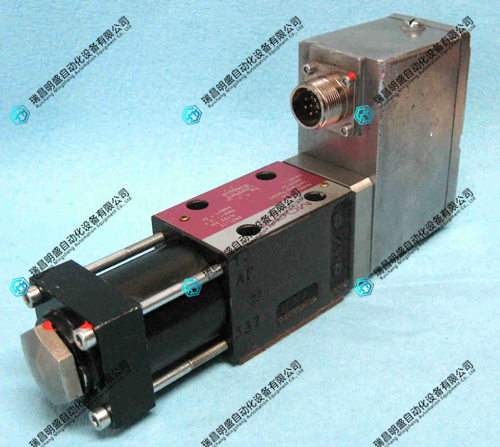

MOOG D633-313B ?伺服閥 產品展示
