TRICONEX 3664數字輸出模塊
1.產 品 資 料 介 紹：
- 高安全冗余輸出架構：TRICONEX 3664 數字輸出模塊延續品牌核心的三重模塊化冗余（TMR）設計，每路輸出信號均通過獨立硬件回路生成與校驗，可自動屏蔽單點故障，確保石油化工、核電等安全關鍵場景的輸出指令精準可靠。
- 高密度輸出通道配置：模塊集成 48 路數字輸出通道，單通道最大驅動電流達 2A，可直接驅動繼電器、電磁閥、指示燈等工業執行元件，無需額外配置功率放大模塊，大幅提升單模塊控制效率。
- 寬電壓兼容輸出：支持 24V DC/48V DC/110V AC 多規格輸出電壓，適配不同工業設備的電源需求，通過模塊參數軟件可靈活切換電壓模式，避免因電壓不匹配導致的設備兼容問題。
- 故障安全輸出保障：符合 IEC 61508 SIL 3 安全標準并通過 TüV 認證，當模塊檢測到硬件故障或通信中斷時，可自動將輸出切換至預設安全狀態（如失電斷開、保持安全電平），杜絕危險工況下的誤動作。
- 快速輸出響應性能：輸出信號切換延遲小于 1.5ms，可快速響應控制器下發的控制指令，適配高速生產線急?？刂啤㈤y門快速切換等對輸出時效性要求嚴苛的場景，減少指令延遲導致的生產偏差。
- 在線熱插拔維護：支持帶電熱插拔功能，在系統不停機的情況下即可完成模塊更換或檢修，配合通道級狀態指示燈（每路輸出對應獨立 LED），可直觀判斷通道工作狀態，故障排查時間縮短 50% 以上。
- 強抗干擾設計：輸入輸出回路與背板總線之間采用 2500V AC 光電隔離技術，同時具備浪涌抑制與電磁屏蔽功能，可抵御工業現場的 EMI/RFI 干擾（如變頻器、電機啟停產生的干擾），保障輸出信號穩定無波動。
- 靈活系統集成能力：無縫兼容 TRICONEX Tricon、Trio 系列安全控制器，通過 TRICONEX 專用高速總線實現與控制器的實時數據交互，同時支持 Modbus RTU 協議接入第三方 SCADA 系統，便于集中監控輸出狀態。
TRICONEX 3664數字輸出模塊 英文資料：
High safety redundant output architecture: The TRICONEX 3664 digital output module continues the brand's core triple modular redundancy (TMR) design. Each output signal is generated and verified through an independent hardware circuit, which can automatically shield single point faults and ensure accurate and reliable output instructions for safety critical scenarios such as petrochemicals and nuclear power.
High density output channel configuration: The module integrates 48 digital output channels, with a maximum driving current of 2A per channel. It can directly drive industrial actuators such as relays, solenoid valves, and indicator lights without the need for additional power amplification modules, greatly improving the control efficiency of a single module.
Wide voltage compatible output: supports 24V DC/48V DC/110V AC multi specification output voltage, adapts to the power requirements of different industrial equipment, and can flexibly switch voltage modes through module parameter software to avoid equipment compatibility problems caused by voltage mismatch.
Fault safety output guarantee: Complies with the IEC 61508 SIL 3 safety standard and has passed T ü V certification. When the module detects hardware faults or communication interruptions, it can automatically switch the output to a preset safety state (such as power-off disconnection, maintaining a safe level), eliminating misoperation under dangerous working conditions.
Fast output response performance: With an output signal switching delay of less than 1.5ms, it can quickly respond to control instructions issued by the controller, adapt to high-speed production lines with strict requirements for output timeliness such as emergency stop control and rapid valve switching, and reduce production deviations caused by instruction delays.
Online hot swappable maintenance: Supports hot swappable functionality, allowing module replacement or maintenance to be completed without shutting down the system. Combined with channel level status indicator lights (each output corresponds to an independent LED), it can intuitively determine the working status of the channel, reducing troubleshooting time by more than 50%.
Strong anti-interference design: 2500V AC optoelectronic isolation technology is used between the input and output circuits and the backplane bus, and it also has surge suppression and electromagnetic shielding functions, which can resist EMI/RFI interference in industrial sites (such as interference caused by frequency converters and motor start stop), ensuring stable and non fluctuating output signals.
Flexible system integration capability: Seamless compatibility with TRICONEX Tricon and Trio series safety controllers, real-time data exchange with controllers through TRICONEX dedicated high-speed bus, and support Modbus RTU protocol access to third-party SCADA systems for centralized monitoring of output status.

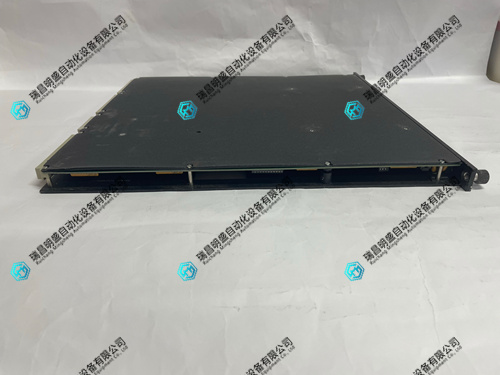

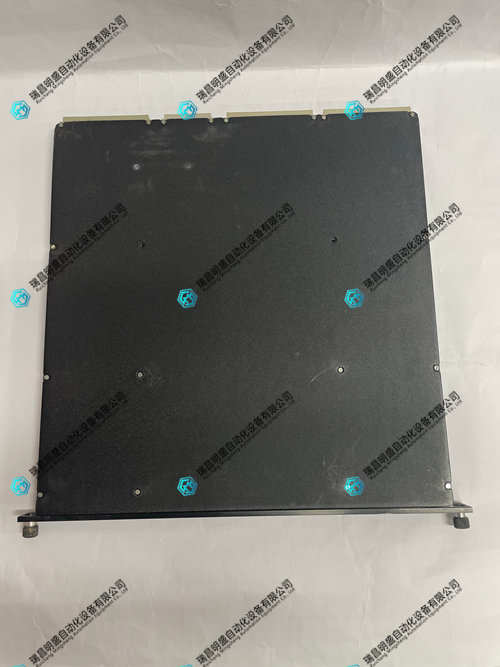

TRICONEX 3664數字輸出模塊 產品展示
