TRICONEX 3625數字 I/O 模塊
1.產 品 資 料 介 紹：
- 高可靠性信號處理：TRICONEX 3625 數字 I/O 模塊采用三重模塊化冗余（TMR）架構，每路 I/O 信號均經過獨立通道采集與校驗，有效避免單點故障導致的數據偏差，適配石油化工、核電等對信號可靠性要求極高的安全場景。
- 豐富 I/O 通道配置：模塊集成 32 路數字輸入與 32 路數字輸出通道，輸入支持干接點、PNP/NPN 電平信號，輸出可驅動繼電器、電磁閥等執行元件，單模塊即可滿足中小型設備的信號采集與控制需求。
- 安全等級合規設計：符合 IEC 61508 SIL 3 安全標準，通過 TüV 萊茵認證，具備故障安全輸出功能，當模塊檢測到自身故障時，可自動將輸出切換至預設安全狀態，杜絕危險工況發生。
- 快速信號響應能力：數字輸入信號響應時間低至 1ms，輸出信號切換延遲小于 2ms，能快速捕捉設備狀態變化并執行控制指令，適配高速生產線、緊急停車系統等對響應速度要求嚴格的場景。
- 寬電壓適配范圍：輸入電壓支持 24V DC（±10%），輸出電壓兼容 24V DC/110V AC，可適配不同工業設備的電源規格，無需額外配置電壓轉換模塊，降低系統集成成本。
- 便捷的在線維護：支持熱插拔功能，在系統不停機的情況下即可完成模塊更換或檢修，同時模塊自帶通道狀態指示燈，可直觀判斷每路 I/O 的工作狀態，縮短故障排查時間。
- 抗干擾性能優異：采用光電隔離技術，輸入輸出通道與背板總線之間隔離電壓達 2500V AC，有效抑制工業現場的電磁干擾（EMI）與射頻干擾（RFI），保障信號傳輸穩定。
- 靈活的系統集成：兼容 TRICONEX Tricon、Trio 等系列安全控制系統，通過 TRICONEX 專用通信總線與控制器實現高速數據交互，同時支持第三方 SCADA 系統接入，便于集中監控與管理。
TRICONEX 3625數字 I/O 模塊 英文資料：
High reliability signal processing: The TRICONEX 3625 digital I/O module adopts a triple modular redundancy (TMR) architecture, where each I/O signal is collected and verified through an independent channel, effectively avoiding data bias caused by single point failures and adapting to safety scenarios such as petrochemicals and nuclear power that require extremely high signal reliability.
Rich I/O channel configuration: The module integrates 32 digital inputs and 32 digital output channels. The input supports dry contacts and PNP/NPN level signals, and the output can drive actuators such as relays and solenoid valves. A single module can meet the signal acquisition and control needs of small and medium-sized devices.
Safety level compliant design: Compliant with IEC 61508 SIL 3 safety standard, certified by T ü V Rheinland, with fail safe output function. When the module detects its own fault, it can automatically switch the output to the preset safety state to prevent dangerous working conditions from occurring.
Fast signal response capability: The digital input signal response time is as low as 1ms, and the output signal switching delay is less than 2ms. It can quickly capture device status changes and execute control instructions, and is suitable for scenarios such as high-speed production lines and emergency stop systems that require strict response speed.
Wide voltage adaptation range: The input voltage supports 24V DC (± 10%), and the output voltage is compatible with 24V DC/110V AC. It can adapt to different power specifications of industrial equipment without the need for additional voltage conversion modules, reducing system integration costs.
Convenient online maintenance: Supports hot swapping function, allowing module replacement or maintenance to be completed without shutting down the system. At the same time, the module comes with channel status indicator lights, which can intuitively determine the working status of each I/O channel and shorten troubleshooting time.
Excellent anti-interference performance: using optoelectronic isolation technology, the isolation voltage between the input and output channels and the backplane bus reaches 2500V AC, effectively suppressing electromagnetic interference (EMI) and radio frequency interference (RFI) in industrial sites, ensuring stable signal transmission.
Flexible system integration: compatible with safety control systems such as Tricon and Trio series, high-speed data exchange is achieved with the controller through the dedicated communication bus of TriconeX, and third-party SCADA system access is supported for centralized monitoring and management.

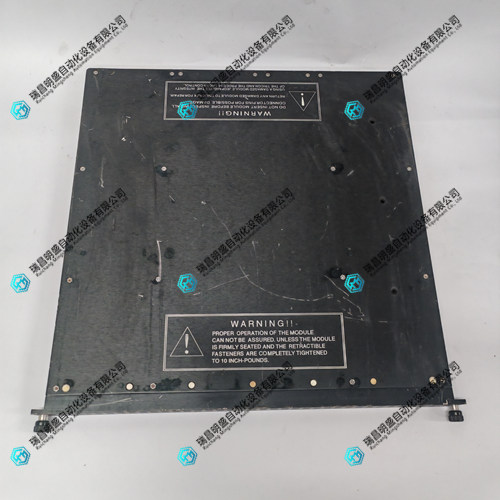

TRICONEX 3625數字 I/O 模塊 產品展示
產品視頻
