Motorola MVME224A-1 01-W3588B動態內存模塊

1.產 品 資 料 介 紹：

技術規格

功能特點

• 高速數據傳輸：通過 32 位 VMEbus 接口，支持高速數據吞吐，滿足實時系統需求。
• 穩定性設計：具備奇偶校驗功能，可檢測并糾正部分?jǐn)?shù)據錯誤，提高系統可靠性。
• 兼容性強：可與多種 VME 架構的 CPU 模塊配合使用，支持 VxWorks、pSOS 等實時操作系統。
• 結構緊湊：模塊化設計，便于在 VME 機箱內安裝與維護。

應用場景

• 工業自動化與過程控制
  作為 DCS/PLC 系統的內存擴展，支持實時數據處理與邏輯運算。
• 通信與網絡設備
  用于電信交換機、網絡節點設備的控制核心，提供穩定的內存支持。
• 電力與能源管理
  適用于變電站自動化、發電機組控制等對可靠性要求高的場合。
• 軍工與航空航天
  在飛控系統、雷達控制等設備中保障數據存儲與處理的穩定性。

Motorola MVME224A-1 01-W3588B動態內存模塊 英文資料：

Motorola MVME224A-1 01-W3588B is a dynamic memory module based on the VMEbus architecture, with a capacity of 4 MB DRAM. It is suitable for MVME series single board computers and is used to expand system main memory to meet the storage needs of real-time applications such as industrial control, communication, testing and measurement.

Technical Specifications

Project specifications

Module model MVME224A-1 01-W3588B

Memory type: Dynamic Random Access Memory (DRAM)

Capacity 4 ? MB (some materials indicate 16 ? MB, subject to the actual configuration of this model)

Data width of 32 bits (D32)

Bus interface VMEbus (A32/D32)

Parity check supports byte level parity check

Compatible with MVME162, MVME200 and other series of single board computers

Industrial grade temperature range for working environment, suitable for long-term high load operation

Features

High speed data transmission: Through a 32-bit VMEbus interface, it supports high-speed data throughput and meets real-time system requirements.

Stability design: Equipped with parity check function, it can detect and correct some data errors, improving system reliability.

Strong compatibility: It can be used in conjunction with various VME architecture CPU modules and supports real-time operating systems such as VxWorks and pSOS.

Compact structure: Modular design, easy to install and maintain inside the VME chassis.

Application scenarios

Industrial Automation and Process Control

As a memory expansion for DCS/PLC systems, it supports real-time data processing and logical operations.

Communication and network equipment

Used as a control core for telecommunications switches and network node devices, providing stable memory support.

Electricity and Energy Management

Suitable for scenarios with high reliability requirements such as substation automation and generator control.

Military and Aerospace Industry

Ensure the stability of data storage and processing in flight control systems, radar control and other equipment.

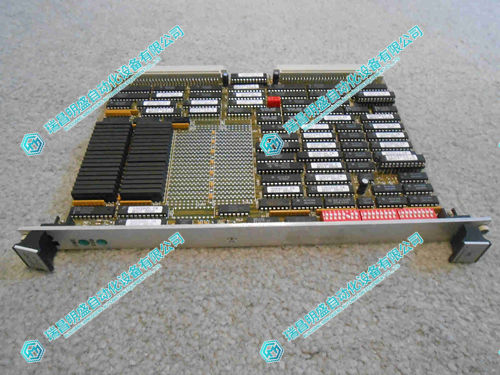

 Motorola MVME224A-1 01-W3588B動態內存模塊 產      品      展      示
