Motorola MVME5110-2263單板計算機

1.產 品 資 料 介 紹：

技術參數

功能亮點

• 高性能架構：PowerPlus II 集成內存與 PCI 控制器，讀帶寬 582?MB/s、寫 640?MB/s，PCI 吞吐 264?MB/s。
• 模塊化擴展：通過 PMC/PCI 夾層可靈活擴展數字 I/O、模擬量、通信與存儲。
• 高可靠性：ECC 內存、硬件看門狗及工業級抗干擾設計，支持長時間穩定運行。
• 多系統支持：提供成熟 BSP，縮短開發周期，適配主流實時與通用操作系統。

Motorola MVME5110-2263單板計算機 英文資料：

The Motorola MVME5110-2263 is a high-performance single board computer (SBC) based on VMEbus, belonging to the MVME5100 series. It integrates a PowerPC processor, large capacity memory, and rich I/O, and is designed for key tasks such as industrial automation, embedded control, communication, and scientific research testing.

Technical Specifications

Project specification remarks

Processor PowerPC MPC7410 500 MHz (some versions 400 MHz) with 32 KB/32 KB L1 cache, supports AltiVec

512 MB ECC SDRAM (onboard) expandable to 1.5 GB (via RAM500 mezzanine)

Storage of 17 MB flash memory (1 MB PLCC/LCC+16 MB patch) for booting and firmware

NVRAM 32 KB (4 KB user available)+replaceable real-time clock battery

Bus interface VME64/VME64x, 32/64 bit data transmission supports 100MHz front-end bus

I/O interface 2 × 16550 compatible with serial port (RS-232/422/485 optional)

2 × 10/100BaseTX Ethernet

Parallel port (requires PMC/backplane) without onboard USB

Expand 2 × 32/64 bit PMC slots

64 bit PCI mezzanine (expandable up to 4xPMC) supports front-end and back-end I/O

Control function bus arbitration DMA、 interrupt management

Timer and watchdog support linked list DMA and multiprocessor interrupts

Operating systems such as VxWorks, Linux, pSOS, etc. provide BSP and firmware monitors

Environmental industrial design commercial grade 0-55 ℃ (some models support wide temperature range)

Key Features

High performance architecture: PowerPlus II integrates memory and PCI controller, with a read bandwidth of 582 MB/s, write speed of 640 MB/s, and PCI throughput of 264 MB/s.

Modular Expansion: Digital I/O, analog, communication, and storage can be flexibly expanded through PMC/PCI mezzanine.

High reliability: ECC memory, hardware watchdog, and industrial grade anti-interference design, supporting long-term stable operation.

Multi system support: Provides mature BSP, shortens development cycle, and adapts to mainstream real-time and general-purpose operating systems.

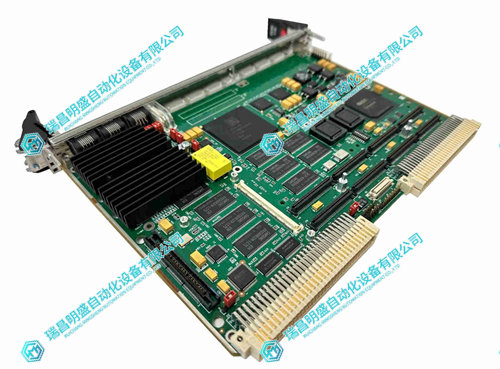

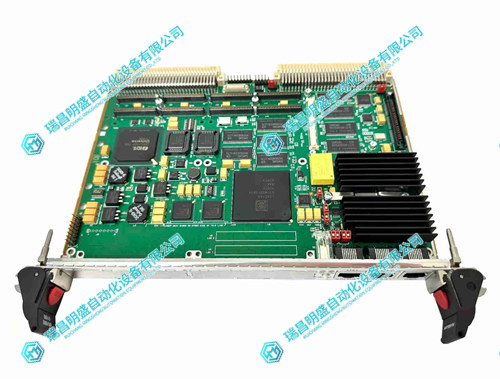

 Motorola MVME5110-2263單板計算機 產      品      展      示

 產品視頻
