GE DAP232(590.043150)數字輸出模塊

1.產 品 資 料 介 紹：

中文資料：

DAP232（部件號：590.043150）是一款由艾默生（Emerson）生產的數字輸出模塊，旨在工業自動化系統中將控制系統的數字信號轉換為開關量輸出，以驅動現場設備，如繼電器、報警器等。

主要特點：

• 多通道輸出： 提供多個數字輸出通道，可同時控制多個設備，提高系統的靈活性和擴展性。

• 高負載能力： 每個輸出通道能夠驅動較大的負載，適用于控制高功率設備。

• 隔離設計： 輸出通道具有電氣隔離功能，有效防止信號干擾，確保系統的穩定性和可靠性。

• 可靠的工業設計： 模塊采用堅固的工業級設計，能夠在惡劣環境下穩定運行，確保系統的長期可靠性。

應用領域：

• 生產過程控制： 向生產線上的設備發送啟停、調節等控制信號，實現自動化控制。

• 安全報警系統： 觸發報警器、指示燈等設備，提供視覺或聽覺報警，確保人員和設備的安全。

• 樓宇自動化： 控制樓宇設備的開關狀態，如照明、空調等，實現智能化管理。

技術規格：

• 輸出類型： 支持開關量輸出，如繼電器觸點、晶體管等，具體支持類型請參考產品手冊。

• 負載能力： 每個輸出通道的最大負載電流和電壓范圍，具體請參考產品手冊。

• 電源要求： 通常為24 V DC電源供電，具體請參考產品手冊。

• 工作溫度范圍： 適應-20°C至+60°C的環境溫度，滿足大多數工業環境的需求。

• 安裝方式： DIN導軌安裝，方便在控制柜中進行安裝和維護。

英文資料：

DAP232 (part number: 590.043150) is a digital output module produced by Emerson, designed to convert digital signals from control systems into switch outputs in industrial automation systems to drive field devices such as relays, alarms, etc.

Main features:

Multi channel output: Provides multiple digital output channels that can control multiple devices simultaneously, improving the flexibility and scalability of the system.

High load capacity: Each output channel can drive a large load, suitable for controlling high-power devices.

Isolation design: The output channel has electrical isolation function, effectively preventing signal interference and ensuring the stability and reliability of the system.

Reliable industrial design: The module adopts a robust industrial grade design that can operate stably in harsh environments, ensuring the long-term reliability of the system.

Application areas:

Production process control: Sending control signals such as start stop and adjustment to equipment on the production line to achieve automation control.

Security alarm system: triggers alarms, indicator lights, and other devices to provide visual or auditory alarms, ensuring the safety of personnel and equipment.

Building automation: Control the on/off status of building equipment, such as lighting, air conditioning, etc., to achieve intelligent management.

Technical specifications:

Output type: Supports switch output, such as relay contacts, transistors, etc. Please refer to the product manual for specific supported types.

Load capacity: The maximum load current and voltage range of each output channel, please refer to the product manual for details.

Power requirements: Usually powered by a 24V DC power supply, please refer to the product manual for details.

Working temperature range: Suitable for ambient temperatures ranging from -20 ° C to+60 ° C, meeting the needs of most industrial environments.

Installation method: DIN rail installation facilitates installation and maintenance in the control cabinet.

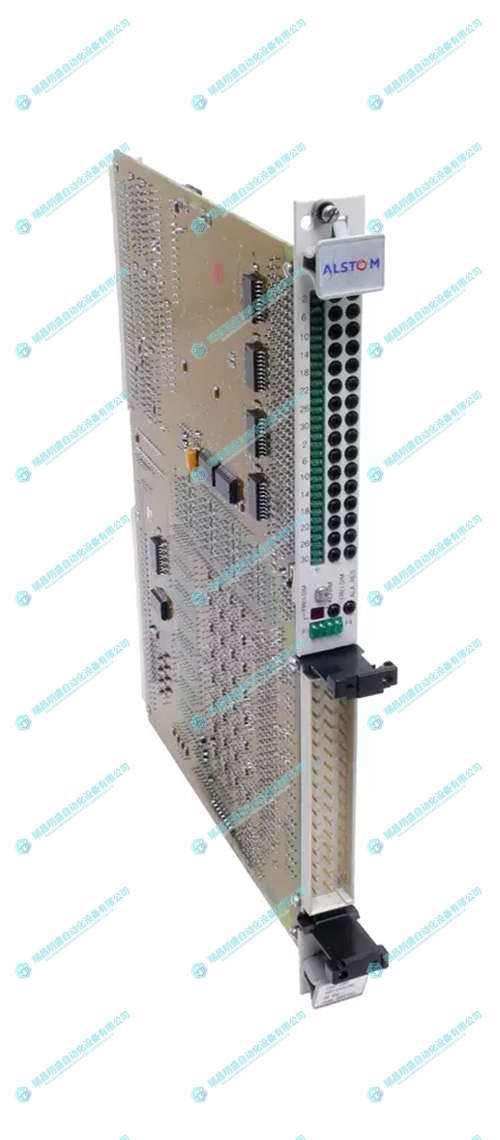

2.產      品      展      示
