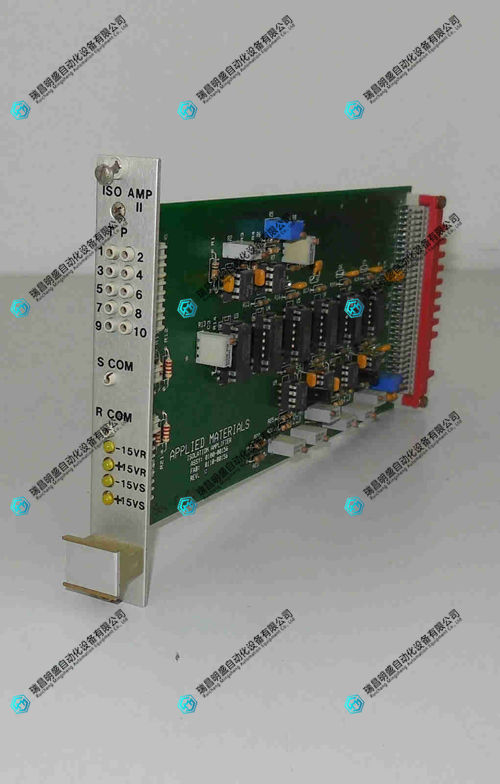

AMAT Applied Materials 0100-00156隔離放大器
1.產 品 資 料 介 紹：
- 設備適配：匹配 AMAT 半導體工藝設備（如蝕刻、沉積機臺），用于傳感器（如壓力、溫度傳感器）與主控單元間的信號隔離放大，避免干擾信號影響控制精度。
- 工藝兼容：聚焦半導體潔凈車間強電磁環境，適配真空腔室壓力監測、反應氣體流量信號處理等場景，支持與 AMAT 設備 PLC 系統無縫對接。
- 核心功能：實現模擬信號（如 0-5V、4-20mA）的電氣隔離與線性放大，阻斷高低壓回路干擾，保障工藝參數采集與傳輸?shù)臏?zhǔn)確性。
- 隔離性能：隔離電壓≥2500VDC（輸入 - 輸出）、≥1500VDC（輸入 - 電源），隔離電阻≥1012Ω，有效阻斷共模干擾與接地環路噪聲。
- 放大精度：電壓增益誤差≤0.1%，非線性誤差≤0.05% FS，溫漂≤50ppm/℃（-20-60℃），確保信號放大后仍保持高線性度，適配 3x 納米制程參數監測需求。
- 信號兼容：輸入支持 0-10V 電壓信號、4-20mA 電流信號，輸出可通過撥碼開關設置為 0-5V/0-10V/4-20mA，適配不同傳感器與主控單元的信號規格。
- 防護設計：外殼采用工業級阻燃 ABS 材質，具備防靜電（ESD）、防電磁干擾（EMI）設計，通過 EMC 測試（EN 55032 Class B），適應車間復雜電磁環境。
- 安裝適配：緊湊型結構（尺寸約 80×50×20mm），支持 DIN35mm 導軌式安裝，接線端子帶螺絲鎖固設計，防止振動導致的接線松動。
- 維護便利：配備電源、信號狀態指示燈，支持通過萬用表直接測量輸出信號判斷模塊工況，無需拆解設備即可初步排查故障。
AMAT Applied Materials 0100-00156隔離放大器 英文資料：
1. Adaptation scenarios and functions (0100-00156)
Equipment adaptation: Matching AMAT semiconductor process equipment (such as etching and deposition machines), used for signal isolation and amplification between sensors (such as pressure and temperature sensors) and the main control unit to avoid interference signals affecting control accuracy.
Process compatibility: Focusing on the strong electromagnetic environment of semiconductor clean workshops, adapting to scenarios such as vacuum chamber pressure monitoring and reaction gas flow signal processing, supporting seamless integration with AMAT equipment PLC systems.
Core function: Implement electrical isolation and linear amplification of analog signals (such as 0-5V, 4-20mA), block high and low voltage circuit interference, and ensure the accuracy of process parameter acquisition and transmission.
2. Accuracy and Performance (0100-00156)
Isolation performance: Isolation voltage ≥ 2500VDC (input-output), ≥ 1500VDC (input-output), isolation resistance ≥ 10 12 Ω, effectively blocking common mode interference and ground loop noise.
Amplification accuracy: Voltage gain error ≤ 0.1%, non-linear error ≤ 0.05% FS, temperature drift ≤ 50ppm/℃ (-20-60 ℃), ensuring high linearity even after signal amplification, suitable for 3x nanometer process parameter monitoring requirements.
Signal compatibility: the input supports 0-10V voltage signal, 4-20mA current signal, and the output can be set to 0-5V/0-10V/4-20mA through the dial switch to adapt to the signal specifications of different sensors and the main control unit.
3. Structure and Protection (0100-00156)
Protection design: The shell is made of industrial grade flame-retardant ABS material, with anti-static (ESD) and electromagnetic interference (EMI) design, and has passed EMC testing (EN 55032 Class B) to adapt to the complex electromagnetic environment in the workshop.
Installation adaptation: Compact structure (size approximately 80 × 50 × 20mm), supporting DIN35mm rail installation, with screw locking design for wiring terminals to prevent loose wiring caused by vibration.
Easy maintenance: equipped with power supply and signal status indicator lights, supporting direct measurement of output signals through a multimeter to determine module operating conditions, without the need to disassemble the equipment for preliminary troubleshooting.
