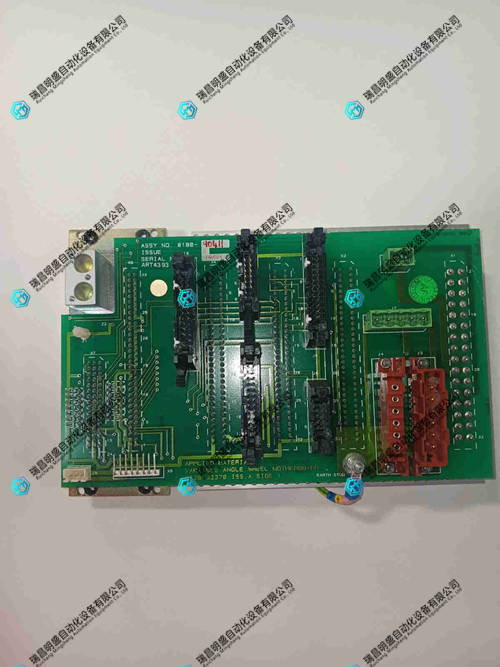

AMAT Applied Materials 0100-90411 主板
1.產 品 資 料 介 紹：
- 存儲規格：參考同系列 0100-09000 型號，預計配備 16MB SDRAM 運行內存 + 32MB Flash 存儲，滿足設備控制程序快速加載與數據緩存需求
- 適配設備：作為 AMAT 專用主板，大概率適配 300mm 半導體制程設備（如沉積、蝕刻機臺），可匹配 P5000、Producer 系列平臺的控制單元接口
- 供電設計：預計采用 24V DC 冗余電壓輸入，支持雙路電源備份，避免單路斷電導致的工藝中斷
- 通信接口：可能集成 RS-232/485 串行接口及千兆以太網端口，實現與設備腔室、傳感器的實時數據交互，支持 1Mbps 級數據吞吐量
- 擴展插槽：預留 PCIe x16 或 x4 擴展槽，可適配射頻控制卡、數據采集模塊等專用組件，兼容 AMAT 平臺化設備的功能擴展需求
- I/O 控制：配備多組 GPIO 接口，支持對真空閥門、加熱器等外設的精準控制，適配半導體設備的多工序協同邏輯
- 運算能力：采用工業級嵌入式處理器（參考同類主板 x86 架構或 ARM 架構），支持多線程并行處理，滿足蝕刻、沉積等工藝的實時控制需求
- 抗干擾設計：可能采用差分 IO 通信技術，阻斷半導體車間電磁干擾對信號傳輸?shù)挠绊?，保障工藝參?shù)控制精度
- 監控功能：內置硬件監控模塊，可實時采集溫度、電壓等運行數據，配合 watchdog 功能實現故障自動復位
- 耐受能力：工作溫度范圍預計達 0-60℃，適配潔凈車間溫濕度波動，金屬基板設計提升散熱效率
- 結構規格：尺寸或接近 14.7cm×5.15cm×11.4cm 的緊湊型設計，重量約 0.6kg，適配設備內部有限安裝空間
- 認證標準：符合 UL、CE 安全認證及 RoHS 環保要求，適配全球半導體工廠合規性需求
AMAT Applied Materials 0100-90411 主板 英文資料：
1. Hardware configuration and adaptability (0100-90411 motherboard)
Storage specifications: Referring to the same series 0100-09000 models, it is expected to be equipped with 16MB SDRAM running memory and 32MB Flash storage to meet the requirements of fast loading of device control programs and data caching
Adaptation equipment: As an AMAT dedicated motherboard, it is highly likely to be compatible with 300mm semiconductor process equipment (such as deposition and etching machines), and can be matched with control unit interfaces for P5000 and Producer series platforms
Power supply design: It is expected to use 24V DC redundant voltage input, support dual power backup, and avoid process interruption caused by single power outage
2. Interface and Expansion Capability (0100-90411 motherboard)
Communication interface: It may integrate RS-232/485 serial interface and Gigabit Ethernet port to achieve real-time data interaction with equipment chambers and sensors, supporting 1Mbps level data throughput
Expansion slot: Reserve PCIe x16 or x4 expansion slots, which can adapt to specialized components such as RF control cards and data acquisition modules, and are compatible with the functional expansion requirements of AMAT platform devices
I/O control: equipped with multiple GPIO interfaces, supporting precise control of external devices such as vacuum valves and heaters, and adapting to the multi process collaborative logic of semiconductor equipment
3. Performance and stability (0100-90411 motherboard)
Computing capability: Adopting industrial grade embedded processors (referring to similar motherboard x86 architecture or ARM architecture), supporting multi-threaded parallel processing, meeting the real-time control requirements of etching, deposition and other processes
Anti interference design: Differential IO communication technology may be used to block the impact of electromagnetic interference in the semiconductor workshop on signal transmission, ensuring the accuracy of process parameter control
Monitoring function: Built in hardware monitoring module, can collect real-time operating data such as temperature and voltage, and cooperate with watchdog function to achieve automatic fault reset
4. Environment and Compliance (0100-90411 motherboard)
Tolerance: The expected working temperature range is 0-60 ℃, suitable for temperature and humidity fluctuations in clean workshops, and the metal substrate design improves heat dissipation efficiency
Structural specifications: Compact design with dimensions close to 14.7cm × 5.15cm × 11.4cm, weighing approximately 0.6kg, suitable for limited installation space inside the equipment
Certification standards: Compliant with UL, CE safety certification and RoHS environmental requirements, suitable for global semiconductor factory compliance needs
