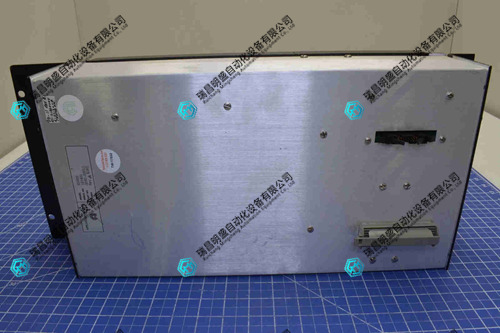

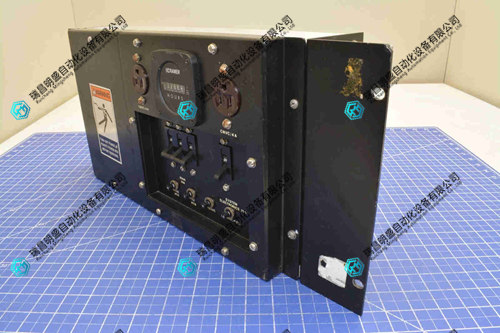

AMAT Applied Materials 0090-00011主框架接口模塊
1.產 品 資 料 介 紹：
- 適配場景：作為 AMAT 設備主框架專用接口模塊，大概率用于半導體機臺（如蝕刻、沉積設備）主框架與子系統（電源、IO 卡、傳感器）的信號 / 數據中轉，實現各組件協同聯動
- 框架兼容：預計適配 AMAT 標準主框架結構（如 300mm 設備通用框架），接口布局匹配主框架內部安裝孔位，可直接集成至現有設備框架，減少改造成本
- 功能定位：承擔主框架與外部設備的 “信號樞紐” 角色，支持控制指令下發、狀態數據回傳，適配設備啟停、工藝參數調節等核心操作需求
- 接口類型：可能集成多組工業級接口，如 RS-485 串行接口、千兆以太網口、電源接口，兼顧數據傳輸與供電需求，參考同系列模塊 “多接口集成” 特性
- 傳輸速率：數據傳輸速率預計達 100Mbps-1Gbps，滿足主框架與子系統的實時通信，避免工藝控制延遲；信號傳輸延遲控制在毫秒級，適配半導體精密加工時序要求
- 協議支持：兼容 Modbus、Profinet 等工業通信協議，可與 AMAT 設備主控單元、第三方監控系統無縫對接，保障數據交互穩定性
- 結構特性：采用緊湊型設計，適配主框架內部有限安裝空間；金屬外殼（如鋁合金）提升結構強度，可承受設備運行中的輕微振動，避免接口松動
- 防護能力：具備防靜電（ESD）、防電磁干擾（EMI）設計，通過屏蔽涂層或隔離電路，阻斷半導體車間電磁信號對接口傳輸?shù)母蓴_；部分接口可能帶防塵蓋，減少粉塵影響
- 安裝便利性：支持導軌式或螺絲固定安裝，接口帶防呆設計（如不同接口顏色區分、形狀適配），避免誤插導致模塊損壞
AMAT Applied Materials 0090-00011主框架接口模塊 英文資料：
1. Adaptability and core functions (0090-00011 main framework interface module)
Adaptation scenario: As a dedicated interface module for the main framework of AMAT equipment, it is highly likely to be used for signal/data transfer between the main framework and subsystems (power supply, IO card, sensor) of semiconductor machines (such as etching and deposition equipment), achieving collaborative linkage among various components
Framework compatibility: It is expected to adapt to the AMAT standard main framework structure (such as the 300mm equipment universal framework), with interface layout matching the internal installation holes of the main framework, and can be directly integrated into existing equipment frameworks to reduce renovation costs
Functional positioning: Serving as the "signal hub" between the main framework and external devices, supporting control command issuance, status data feedback, and adapting to core operational requirements such as equipment start stop and process parameter adjustment
2. Interface configuration and transmission performance (0090-00011 main framework interface module)
Interface type: It may integrate multiple sets of industrial grade interfaces, such as RS-485 serial interface, Gigabit Ethernet port, power interface, taking into account data transmission and power supply requirements, referring to the "multi interface integration" feature of modules in the same series
Transmission rate: The data transmission rate is expected to reach 100Mbps to 1Gbps, meeting the real-time communication requirements between the main framework and subsystems, and avoiding process control delays; Signal transmission delay is controlled in milliseconds to meet the timing requirements of semiconductor precision machining
Protocol support: Compatible with industrial communication protocols such as Modbus and Profinet, it can seamlessly integrate with AMAT device control units and third-party monitoring systems to ensure data exchange stability
3. Structure and Protection Design (0090-00011 Main Framework Interface Module)
Structural characteristics: Adopting a compact design to adapt to the limited installation space inside the main frame; Metal casing (such as aluminum alloy) enhances structural strength and can withstand slight vibrations during equipment operation, avoiding interface looseness
Protection capability: equipped with anti-static (ESD) and electromagnetic interference (EMI) design, blocking the interference of electromagnetic signals in the semiconductor workshop on interface transmission through shielding coatings or isolation circuits; Some interfaces may come with dust covers to reduce the impact of dust
Installation convenience: Supports rail or screw fixed installation, with foolproof interface design (such as color differentiation and shape adaptation for different interfaces) to avoid module damage caused by accidental insertion
