AMAT Applied Materials 0100-90378 接口模塊
1.產 品 資 料 介 紹：
- 核心接口：參考同系列 0100-20100 型號特性，預計集成 RS-232/RS-485 串行接口及以太網端口，可適配半導體設備中傳感器、執行器與主控單元的信號交互需求
- 適配設備：作為 AMAT 0100 系列專用模塊，大概率適配 300mm 沉積、蝕刻機臺（如 P5000、Producer 系列平臺），精準匹配設備控制單元的通信接口規格
- 協議兼容：預計支持 I2C、SPI、UART 等多種工業通信協議，可與不同品牌外設無縫對接，適配半導體制造多設備協同場景
- 傳輸速率：參考工控模塊通用標準，波特率預計覆蓋 9600bps-115200bps，支持 1Mbps 級數據吞吐量，滿足晶圓加工過程中實時信號傳輸需求
- 擴展設計：可能預留模塊化插槽，可靈活搭載光纖轉換、模擬量采集等功能子卡，適配半導體設備后期功能升級需求
- 數據格式：支持 8N1、8E1 等通用數據格式，兼容不同設備的信號編碼邏輯，降低系統集成復雜度
- 抗干擾性能：采用差分信號傳輸技術，可阻斷半導體車間電磁干擾對信號的影響，保障工藝參數傳輸精度
- 硬件防護：預計內置過壓、過流保護電路，配合防靜電設計，避免外部瞬時沖擊損壞 0100-90378 模塊核心組件
- 狀態監控：配備 LED 指示燈，可實時顯示電源通斷、數據傳輸?shù)裙ぷ鳡顟B(tài)，配合故障自診斷功能，簡化設備維護流程
- 耐受能力：工作溫度范圍預計達 0-60℃，適配潔凈車間溫濕度波動，金屬外殼設計提升散熱與結構穩定性
- 供電設計：參考同系列模塊特性，可能采用 24V DC 冗余電壓輸入，支持雙路電源備份，避免單路斷電導致的信號中斷
- 認證標準：符合 UL、CE 安全認證及 RoHS 環保要求，適配全球半導體工廠的合規性管控需求
AMAT Applied Materials 0100-90378 接口模塊 英文資料：
1. Interface configuration and adaptability (0100-90378 interface module)
Core interface: Referring to the characteristics of the same series 0100-20100 models, it is expected to integrate RS-232/RS-485 serial interface and Ethernet port, which can adapt to the signal interaction requirements of sensors, actuators, and main control units in semiconductor equipment
Equipment adaptation: As a dedicated module for the AMAT 0100 series, it is highly likely to be compatible with 300mm deposition and etching machines (such as P5000 and Producer series platforms), accurately matching the communication interface specifications of the equipment control unit
Protocol compatibility: It is expected to support multiple industrial communication protocols such as I2C, SPI, UART, etc., and can seamlessly integrate with different brands of peripherals, adapting to multi device collaboration scenarios in semiconductor manufacturing
2. Transmission performance and scalability (0100-90378 interface module)
Transmission rate: Referring to the general standard of industrial control modules, the baud rate is expected to cover 9600bps to 115200bps, supporting a data throughput of 1Mbps, and meeting the real-time signal transmission requirements during wafer processing
Expansion design: modular slots may be reserved, which can flexibly accommodate functional daughter cards such as fiber optic conversion and analog acquisition, adapting to the later functional upgrade needs of semiconductor equipment
Data format: Supports universal data formats such as 8N1 and 8E1, compatible with signal encoding logic of different devices, and reduces system integration complexity
3. Stability and Protection Design (0100-90378 Interface Module)
Anti interference performance: Using differential signal transmission technology, it can block the influence of electromagnetic interference on signals in semiconductor workshops, ensuring the accuracy of process parameter transmission
Hardware protection: It is expected to have built-in overvoltage and overcurrent protection circuits, combined with anti-static design, to avoid external instantaneous impact damage to the core components of module 0100-90378
Status monitoring: Equipped with LED indicator lights, it can display real-time working status such as power on/off and data transmission. Combined with fault self diagnosis function, it simplifies equipment maintenance process
4. Environment and Compliance (0100-90378 Interface Module)
Tolerance: The expected working temperature range is 0-60 ℃, suitable for temperature and humidity fluctuations in clean workshops, and the metal shell design improves heat dissipation and structural stability
Power supply design: Referring to the characteristics of modules in the same series, 24V DC redundant voltage input may be used, supporting dual power backup to avoid signal interruption caused by single power failure
Certification standards: Compliant with UL, CE safety certification and RoHS environmental requirements, suitable for the compliance control needs of global semiconductor factories

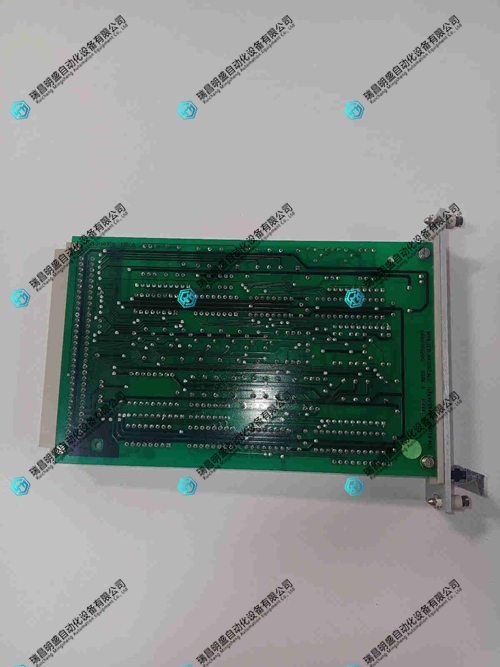

AMAT Applied Materials 0100-90378 接口模塊 產品展示
產品視頻
