Extreme Networks X430-24p交換機
1.產 品 資 料 介 紹：
- PoE + 接入端口：配備 24 個 10/100/1000 BASE-T 自適應電口，且全部支持 IEEE 802.3af/at PoE + 標準，單端口最大輸出 30W 功率，可直接為無線 AP、IP 電話、高清監控攝像機等設備供電，無需額外部署電源線路。
- 上行擴展端口：含 4 個獨立 SFP 千兆光口（非復用設計），支持 1000 BASE-X 光模塊，可靈活對接核心交換機或服務器，實現千兆光纖上行，突破銅纜 100 米傳輸限制，適配中小型企業的樓層或分支機構組網。
- 部署適配性：24 個 PoE + 端口集中布局，尤其適合會議室、連鎖門店、辦公樓宇等需要密集供電的場景，大幅降低布線與維護成本。
- PoE 功率保障：整機 PoE 功率預算達 370W-380W，可滿負荷為 24 個 PoE + 設備供電（單口 30W），即使接入高功耗終端（如雙頻無線 AP）也無需擔心功率不足問題。
- 核心性能參數：交換容量達 88Gbps，轉發速率 36Mpps，64 字節數據包時延低于 5μs，兼容 9KB 巨幀，24 個千兆電口與 4 個千兆光口均支持線速轉發，端口總帶寬之和的兩倍（24×2Gbps + 4×2Gbps = 56Gbps）遠低于交換容量，確保無性能瓶頸。
- 流量管控能力：提供 8 個出口 QoS 隊列，支持基于 802.1p、DSCP 的優先級分類，可優先保障語音、視頻等關鍵業務帶寬，避免因終端接入密集導致的網絡擁塞。
Extreme Networks X430-24p交換機 英文資料：
1. Full PoE+port configuration: focusing on integrated terminal power supply and access
The Extreme Networks X430-24p is a dedicated model for the access layer, with port design centered around "PoE power supply+flexible expansion", suitable for multi terminal centralized scenarios:
PoE+Access Port: Equipped with 24 10/100/1000 BASE-T adaptive electrical ports, all of which support IEEE 802.3af/at PoE+standard. The maximum output power of a single port is 30W, which can directly power wireless APs, IP phones, high-definition surveillance cameras and other devices without the need for additional power lines.
Upstream expansion port: includes 4 independent SFP gigabit optical ports (non multiplexed design), supports 1000 BASE-X optical modules, can flexibly connect to core switches or servers, achieve gigabit fiber optic uplink, break through the 100 meter transmission limit of copper cables, and adapt to the floor or branch network of small and medium-sized enterprises.
Deployment adaptability: 24 PoE+ports are centrally arranged, especially suitable for scenarios that require intensive power supply such as conference rooms, chain stores, and office buildings, greatly reducing wiring and maintenance costs.
2. High power PoE and line speed performance: balancing power supply and transmission efficiency
Extreme Networks X430-24p balances PoE power allocation and data transmission performance to meet the requirements of converged networks:
PoE power guarantee: The overall PoE power budget is 370W-380W, which can supply power to 24 PoE+devices at full load (single port 30W). Even when connected to high-power terminals (such as dual band wireless APs), there is no need to worry about insufficient power.
Core performance parameters: Switching capacity of 88Gbps, forwarding rate of 36Mpps, 64 byte packet latency of less than 5 μ s, compatible with 9KB jumbo frames, 24 Gigabit electrical ports and 4 Gigabit optical ports all support line speed forwarding, and the total bandwidth of the ports is twice the sum (24 × 2Gbps+4 × 2Gbps=56Gbps), far below the switching capacity, ensuring no performance bottlenecks.
Traffic control capability: Provides 8 exit QoS queues, supports priority classification based on 802.1p and DSCP, can prioritize the protection of critical business bandwidth such as voice and video, and avoid network congestion caused by dense terminal access.

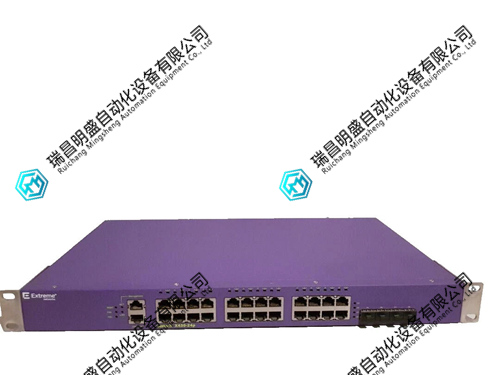

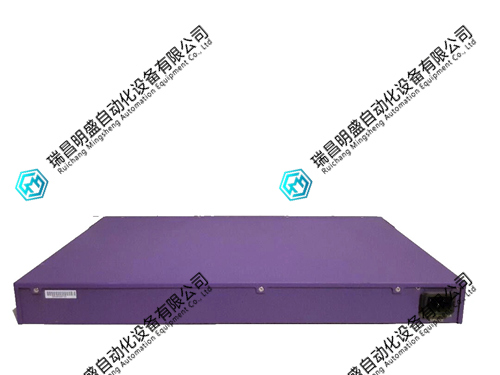

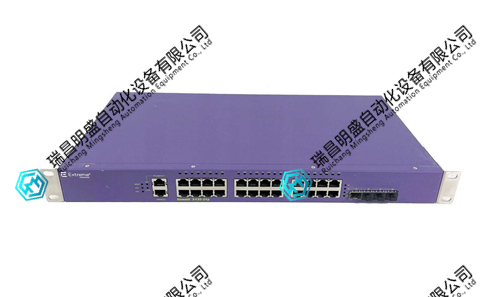

Extreme Networks X430-24p交換機 產品展示
產品視頻
