AMAT Applied Materials 0015-02149直流電源模塊
1.產 品 資 料 介 紹：
- 輸入適配寬壓交流（推測 90-264V AC），輸出為穩定直流（參考同系列模塊或達 15V DC 等規格），額定功率覆蓋 15-50W，采用 PWM 穩壓技術，輸出電壓精度 ±0.5%，紋波≤50mV，為傳感器、驅動電路等半導體設備敏感組件提供潔凈電源。
- 轉換效率≥90%，空載損耗低，配合智能功耗調節設計，適配設備長期運行需求，減少能源消耗與散熱負擔。
- 采用端子式或板載式接口，可直接對接 0100-01321 輸入輸出模塊、0190-24007 單板計算機等 AMAT 設備組件，無需額外轉接件，簡化系統布線。
- 支持 RS485 通信接口與 Modbus 協議，可實時上傳輸出電壓、電流等運行數據至主控系統，適配 ENDURA? 等半導體裝備的電源狀態監控鏈路。
- 集成過壓（超額定值 115% 觸發）、過流（超額定值 150% 切斷）、短路、過溫（≥85℃斷電）四重保護，故障時快速告警并鎖定輸出，避免損壞下游設備。
- 輸入輸出隔離電壓≥2500V DC，采用 PCB 分層屏蔽結構，抗電磁干擾符合 EN 55022 Class B 標準，適配車間復雜電磁環境。
- 核心元件選用工業級型號，經 - 40~+70℃高低溫老化測試，支持 7×24 小時連續運行，平均無故障時間（MTBF）≥8 萬小時。
- 符合 UL/CE/RoHS 認證，適配半導體工廠高稼動率生產需求，原廠提供 1-3 年質保，備件可快速替換以縮短停機時間。
AMAT Applied Materials 0015-02149直流電源模塊 英文資料：
1. Power supply performance (AMAT 0015-02149)
The input is compatible with wide voltage AC (estimated to be 90-264V AC), and the output is stable DC (referring to modules in the same series or up to 15V DC specifications). The rated power covers 15-50W, and PWM voltage stabilization technology is used. The output voltage accuracy is ± 0.5%, and the ripple is ≤ 50mV, providing clean power for sensitive components of semiconductor devices such as sensors and drive circuits.
Conversion efficiency ≥ 90%, low no-load loss, coupled with intelligent power consumption regulation design, suitable for long-term operation needs of equipment, reducing energy consumption and heat dissipation burden.
2. Adaptation and linkage (AMAT 0015-02149)
By using terminal or onboard interfaces, AMAT equipment components such as 0100-01321 input/output modules and 0190-24007 single board computers can be directly connected without the need for additional adapters, simplifying system wiring.
Supports RS485 communication interface and Modbus protocol, can upload real-time output voltage, current and other operational data to the main control system, compatible with ENDURA ? Waiting for the power status monitoring link of semiconductor equipment.
3. Safety and Protection (AMAT 0015-02149)
Integrated overvoltage (triggered by exceeding the set value by 115%), overcurrent (cut off by exceeding the set value by 150%), short circuit, and over temperature (power-off at ≥ 85 ℃) quadruple protection, quickly alarms and locks the output in case of faults, avoiding damage to downstream equipment.
Input/output isolation voltage ≥ 2500V DC, using PCB layered shielding structure, anti electromagnetic interference meets EN 55022 Class B standard, suitable for complex electromagnetic environment in the workshop.
4. Reliability (AMAT 0015-02149)
The core components are selected from industrial grade models, which have undergone high and low temperature aging tests at -40~+70 ℃. They support continuous operation for 7 × 24 hours, with an average time between failures (MTBF) of ≥ 80000 hours.
Compliant with UL/CE/RoHS certification, suitable for high utilization production needs of semiconductor factories, original factory provides 1-3 year warranty, and spare parts can be quickly replaced to shorten downtime.

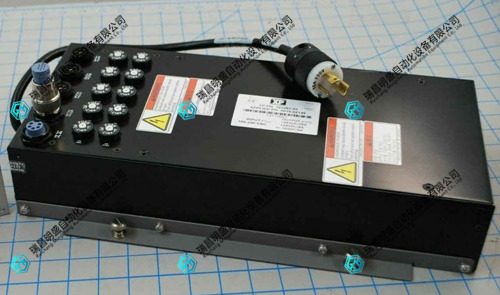

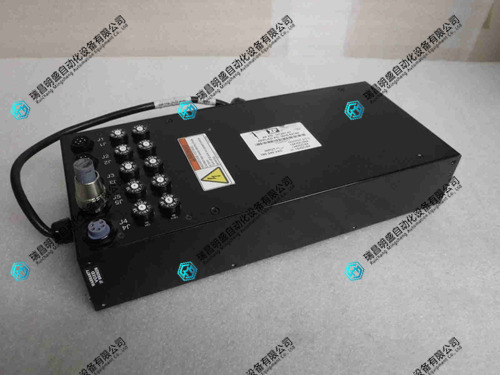

AMAT Applied Materials 0015-02149直流電源模塊 產品展示
