AMAT Applied Materials 0100-01321輸入輸出模塊
1.產 品 資 料 介 紹：
- 作為數字 I/O 板，集成多路數字量輸入 / 輸出通道（推測 16-32 路），支持 24V DC 標準信號，輸入響應時間≤1ms，輸出驅動能力達 500mA / 通道，適配電磁閥、指示燈等執行元件及光電傳感器信號接入。
- 具備信號濾波與光電隔離功能（隔離電壓≥2500V DC），可抑制車間電磁干擾，避免信號串?dāng)_，保障數字信號傳輸穩定性。
- 采用 PCB 板載式接口設計，可直接對接 0100-09099 互連組件、0190-24007 單板計算機，實現設備信號的集中轉接與交互。
- 支持 Modbus 通信協議，能將數字 I/O 狀態實時上傳至主控系統，同時接收控制指令驅動輸出，適配 ENDURA? 氣相沉積設備等半導體裝備的工藝控制鏈路。
- 工作溫度適配 0~60℃（參考同系列模塊參數），濕度耐受 5%-90%（無凝露），表面經防靜電處理，符合 Class 100 潔凈室運行要求。
- 采用 PCB 分層屏蔽結構，抗電磁干擾符合 EN 55022 Class B 標準，防護等級達 IP20，適配反應腔周邊粉塵與電磁復雜環境。
- 核心元件選用工業級型號，經高低溫老化與振動測試，支持 7×24 小時連續運行，MTBF 參考同類模塊可達 8 萬小時以上。
- 符合 UL/CE/RoHS 認證，適配半導體工廠高稼動率需求，原廠提供 1-3 年質保，備件可快速替換以縮短停機時間。
AMAT Applied Materials 0100-01321輸入輸出模塊 英文資料：
1. I/O interface and signal processing (AMAT 0100-01321)
As a digital I/O board, it integrates multiple digital input/output channels (estimated to be 16-32 channels), supports 24V DC standard signals, input response time ≤ 1ms, output drive capability up to 500mA/channel, and is compatible with solenoid valves, indicator lights, and photoelectric sensor signal access.
Equipped with signal filtering and optoelectronic isolation functions (isolation voltage ≥ 2500V DC), it can suppress electromagnetic interference in the workshop, avoid signal crosstalk, and ensure the stability of digital signal transmission.
2. System adaptation and linkage (AMAT 0100-01321)
Adopting a PCB board mounted interface design, it can directly interface with 0100-09099 interconnect components and 0190-24007 single board computers, achieving centralized transfer and interaction of device signals.
Supports Modbus communication protocol, can upload digital I/O status in real-time to the main control system, and receive control commands to drive output, compatible with ENDURA ? The process control link of semiconductor equipment such as vapor deposition equipment.
3. Environment and Protection (AMAT 0100-01321)
The working temperature is suitable for 0-60 ℃ (refer to the parameters of the same series of modules), the humidity tolerance is 5% -90% (no condensation), the surface has been treated with anti-static, and meets the requirements of Class 100 cleanroom operation.
Adopting a PCB layered shielding structure, the anti electromagnetic interference meets the EN 55022 Class B standard, with a protection level of IP20, and is suitable for dust and electromagnetic complex environments around the reaction chamber.
4. Reliability and Compliance (AMAT 0100-01321)
The core components are selected from industrial grade models, which have undergone high and low temperature aging and vibration testing, and support continuous operation for 7 × 24 hours. The MTBF can reach over 80000 hours compared to similar modules.
Compliant with UL/CE/RoHS certification, suitable for high utilization requirements of semiconductor factories, original factory provides 1-3 year warranty, and spare parts can be quickly replaced to shorten downtime.

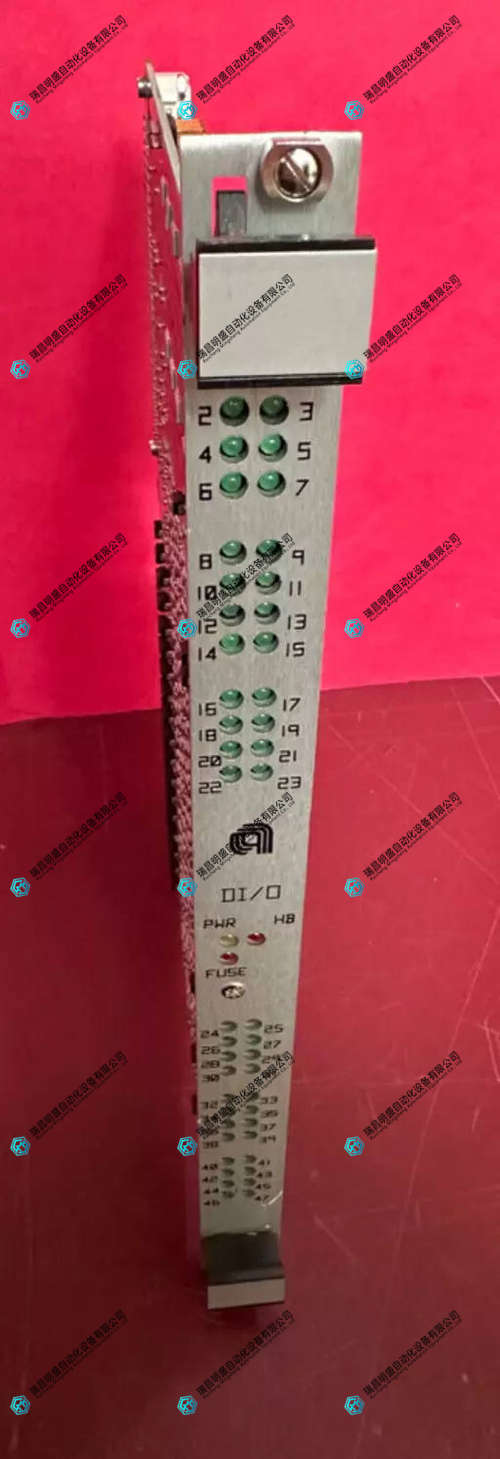

AMAT Applied Materials 0100-01321輸入輸出模塊 產品展示
