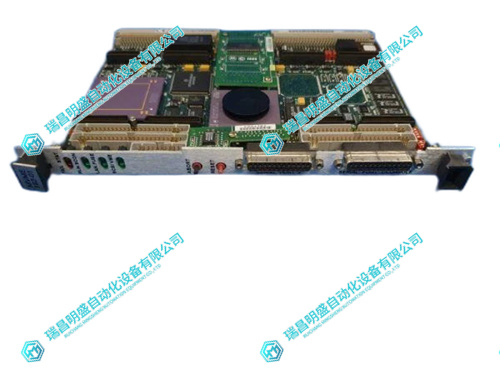

Motorola MVME 162-01單板計算機

1.產 品 資 料 介 紹：

Motorola MVME 162-01 VMEbus 單板計算機解析

一、核心技術特性

1. 高性能實時處理能力

• 處理器核心：搭載 Motorola 高速嵌入式處理器（典型為 68040 系列），主頻達 25-33MHz，具備強指令執行效率，可高效運行復雜控制算法（如 PID 閉環調節、多軸運動控制）；
• 多任務與系統兼容：支持 VxWorks、OS-9 等主流實時操作系統（RTOS），可實現多任務優先級調度（如 “數據采集 + 邏輯控制 + 告警響應” 并行執行），中斷響應延遲低至微秒級，滿足工業實時控制需求；
• 內存配置：集成 MB 級 DRAM（數據緩存）與 EPROM/Flash（程序存儲），支持內存擴展，保障多任務運行時的內存資源充足，避免數據處理卡頓。

2. VMEbus 深度兼容與多模塊協同

• 總線標準：完全符合 VMEbus 32 位標準，支持主模塊 / 從模塊雙模式：作為主模塊時，可通過 VME 總線調度 I/O 擴展板、通信模塊、存儲模塊（如 MVME320B 磁盤控制器），構建完整控制系統；作為從模塊時，可接收其他主模塊指令，分擔特定計算任務；
• 兼容性廣：可與 Motorola 全系列 VME 模塊（如 MVME147-014 適配器、MPMC222 光纖模塊）無縫協作，無需額外協議適配，降低系統集成復雜度。

3. 豐富 I/O 接口覆蓋全場景需求

• 基礎 I/O：集成多通道數字量輸入 / 輸出（DI/DO）、模擬量采集（AI）接口，可直接連接傳感器（如溫度、壓力傳感器）、執行器（如繼電器、變頻器），無需額外擴展即可完成 “信號采集 - 控制輸出” 基礎流程；
• 通信接口：配備 RS-232/RS-485 串口（支持異步 / 同步通信）、并行接口，部分版本預留以太網接口，可對接調試終端、遠程監控設備、外部存儲，滿足工業現場 “本地控制 + 遠程交互” 需求；
• 外設擴展：支持通過 VME 總線擴展專用接口（如 CAN 總線、光纖接口），適配特殊外設（如工業相機、雷達探測器）。

Motorola MVME 162-01單板計算機 英文資料：

Analysis of Motorola MVME 162-01 VMEbus Single Board Computer

Motorola MVME 162-01 is an industrial grade embedded single board computer (SBC) based on the VMEbus architecture. Its core positioning is the "VME system core control unit" - by integrating high-performance processors, memory, and rich I/O interfaces, it undertakes the system's computing, real-time control, and data exchange tasks, adapts to scenarios such as industrial automation, transportation, and national defense that require strict "stability+real-time" requirements, and is the core carrier for building VME modular systems.

1、 Core technical characteristics

1. High performance real-time processing capability

Processor core: Equipped with Motorola high-speed embedded processor (typical 68040 series), with a main frequency of 25-33MHz, it has strong instruction execution efficiency and can efficiently run complex control algorithms (such as PID closed-loop regulation and multi axis motion control);

Multi tasking and system compatibility: Supports mainstream real-time operating systems (RTOS) such as VxWorks and OS-9, enabling multi task priority scheduling (such as parallel execution of "data acquisition+logic control+alarm response"), with interrupt response latency as low as microseconds, meeting industrial real-time control requirements;

Memory configuration: Integrated MB level DRAM (data cache) and EPROM/Flash (program storage), supports memory expansion, ensures sufficient memory resources during multitasking, and avoids data processing lag.

2. VMEbus deep compatibility and multi module collaboration

Bus standard: fully compliant with the VMEbus 32-bit standard, supporting both master and slave modes: as the master module, I/O expansion boards, communication modules, and storage modules (such as MVME320B disk controllers) can be scheduled through the VME bus to build a complete control system; As a sub module, it can receive instructions from other main modules and share specific computing tasks;

Wide compatibility: It can seamlessly cooperate with Motorola's full range of VME modules (such as MVME147-014 adapter, MPMC222 fiber module) without the need for additional protocol adaptation, reducing system integration complexity.

3. Enrich I/O interfaces to cover all scenario requirements

Basic I/O: Integrated with multi-channel digital input/output (DI/DO) and analog acquisition (AI) interfaces, it can directly connect sensors (such as temperature and pressure sensors) and actuators (such as relays and frequency converters) without the need for additional expansion to complete the basic process of "signal acquisition control output";

Communication interface: equipped with RS-232/RS-485 serial port (supporting asynchronous/synchronous communication), parallel interface, and some versions reserve Ethernet interface, which can be connected to debugging terminals, remote monitoring devices, external storage, and meet the needs of "local control+remote interaction" in industrial sites;
