AMAT Applied Materials  46-406121-01背板

1.產 品 資 料 介 紹：

AMAT Applied Materials 46-406121-01背板 英文資料：

1、 Product Overview

The AMAT 46-406121-01 backplane is the modular signal interconnection core of semiconductor PVD/CVD equipment (such as AMAT Endura series coating machines), mainly responsible for the signal aggregation and distribution functions of the equipment's main control unit and functional modules (such as drive modules and detection modules), realizing bidirectional interaction of power supply, data transmission, and control instructions. It adopts a high-density connector layout and anti-interference design, which is suitable for the multi module collaborative work requirements of semiconductor equipment. It can directly ｒｅｐｌａｃｅ the same type of backplane from the original factory without adjusting the internal wiring logic of the equipment.

2、 Key parameters

Applicable system: Priority adaptation to AMAT Endura series PVD equipment, compatible with module interconnection systems of similar AMAT semiconductor thin film deposition equipment

Interface configuration: 16 standard card slots (supporting hot swappable modules), integrated with 2 power distribution interfaces (primary/backup redundancy) and 4 high-speed communication bus interfaces

Signal performance: Supports digital (24V DC), analog (4-20mA), and high-speed differential signal transmission, with signal delay ≤ 50ns

Power distribution: Input voltage DC 24V/48V dual compatible, single output current ≤ 20A, with overload protection (triggered by 25A)

Physical dimensions: 350mm in length, 200mm in width, and 20mm in height. The installation holes are compatible with the original equipment chassis bracket and fixed with M4 screws

Environmental adaptation: Working temperature -5 ℃ -65 ℃, relative humidity ≤ 90% RH (no condensation), anti electromagnetic interference in accordance with EN 61000-6-2 standard

3、 Core advantages

Efficient signal integration: high-density slot design reduces wiring complexity between modules, high-speed bus interface ensures synchronous transmission of data from multiple modules, and avoids signal conflicts

Factory seamless compatibility: slot definition, connector pins are fully matched with the original equipment, module plug-in compatibility is 100%, and there is no need to reconfigure interconnection parameters after replacement

High reliability redundancy: dual power distribution for independent power supply, automatic switching in case of single channel failure. The backplane circuit adopts gold-plated contact connectors, with a plug-in life of ≥ 500 times

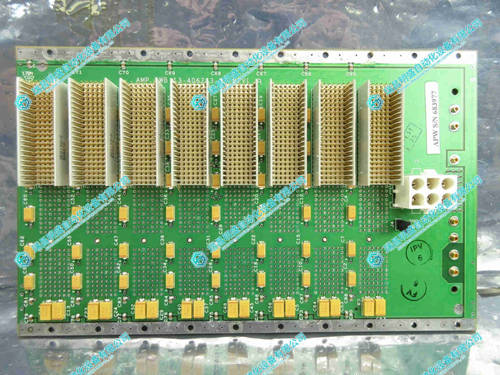

AMAT Applied Materials  46-406121-01背板  產品展示
