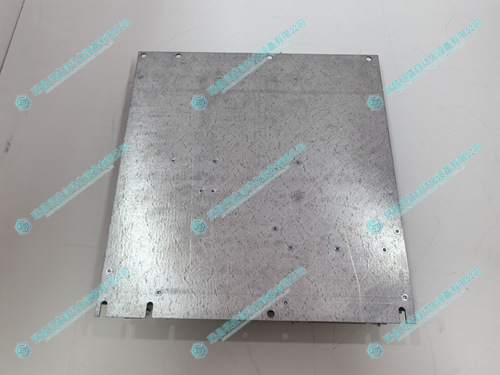

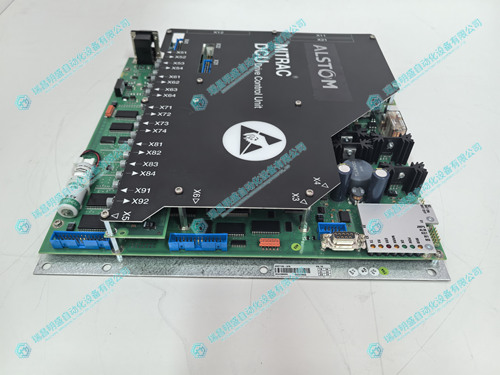

ALSTOM 3EST125-975 DCC2382A  控制面板

1.產 品 資 料 介 紹：

中文資料：

ALSTOM 3EST125-975 DCC2382A 是一款傳輸接口模塊，旨在滿足工業自動化和過程控制系統中的高性能需求。該模塊具有以下主要技術參數：

電氣參數：

• 額定電壓： 690V 三相交流，適用于工業中壓配電系統。
• 額定電流： 200A，能夠承載高電流負載，確保設備在額定功率下穩定運行。
• 額定功率： 150kW，滿足中型工業設備的持續穩定供電需求。
• 頻率： 50Hz，符合大多數國家和地區的標準工業電源頻率。
• 功率因數： 0.9（滯后），高功率因數有助于減少無功損耗，提高電力系統的利用效率。

機械參數：

• 尺寸： 800mm（長）× 600mm（寬）× 1000mm（高），緊湊的設計便于在各種工業環境中安裝和布置。
• 重量： 200kg，結構強度與性能的平衡設計，便于運輸和安裝。
• 防護等級： IP65，具備良好的防塵防水能力，確保在惡劣工業環境中可靠運行。

性能參數：

• 效率： 95%，高能量轉換效率減少能源浪費和運行成本。
• 過載能力： 可在1.5倍額定負載下連續運行30分鐘，增強設備處理突發或短時過載的能力，確保生產連續性。
• 響應時間： ≤50ms，快速響應對于實時控制和保護功能至關重要，能夠及時應對系統變化或故障。

該模塊適用于需要高可靠性和高性能的工業自動化領域，如電力、石油天然氣、化工、制藥、水處理等行業。其設計確保在各種嚴苛環境中提供穩定的性能和長久的使用壽命。

英文資料：

ALSTOM 3EST125-975 DCC2382A is a transmission interface module designed to meet high-performance requirements in industrial automation and process control systems. This module has the following main technical parameters:

Electrical parameters:

Rated voltage: 690V three-phase AC, suitable for industrial medium voltage distribution systems.

Rated current: 200A, capable of carrying high current loads, ensuring stable operation of equipment at rated power.

Rated power: 150kW, meeting the continuous and stable power supply needs of medium-sized industrial equipment.

Frequency: 50Hz, in line with the standard industrial power frequency of most countries and regions.

Power factor: 0.9 (lag), high power factor helps reduce reactive power loss and improve the utilization efficiency of the power system.

Mechanical parameters:

Size: The compact design measures 800mm in length, 600mm in width, and 1000mm in height, making it easy to install and arrange in various industrial environments.

Weight: 200kg, balanced design of structural strength and performance, convenient for transportation and installation.

Protection level: IP65， Having good dust and water resistance, ensuring reliable operation in harsh industrial environments.

Performance parameters:

Efficiency: 95%, high energy conversion efficiency reduces energy waste and operating costs.

Overload capacity: It can operate continuously for 30 minutes at 1.5 times the rated load, enhancing the equipment's ability to handle sudden or short-term overloads and ensuring production continuity.

Response time: ≤ 50ms, fast response is crucial for real-time control and protection functions, enabling timely response to system changes or failures.

This module is suitable for industrial automation fields that require high reliability and performance, such as power, oil and gas, chemical, pharmaceutical, water treatment, and other industries. Its design ensures stable performance and long service life in various harsh environments.

2.產      品      展      示
