Extreme Networks SG4101-0248擴展插槽模塊
1.產 品 資 料 介 紹：
- 型號屬性：Enterasys SG4101-0248 是 Extreme Networks 旗下 S130 S-Series 交換機的 Type1 類型 I/O 擴展模塊，主打高密度光口擴展能力。
- 端口配置：配備 48 個 1000Base-X SFP 光口，需搭配 SFP 光模塊使用，可靈活連接光纖鏈路或千兆光口設備。
- 硬件定位：作為熱插拔式擴展模塊，需插入 S130 S-Series 交換機機箱的對應插槽，用于擴展設備光口密度。
- 密度擴展：單模塊提供 48 個千兆光口，大幅提升交換機接入能力，適配光纖組網場景。
- 靈活適配：依托 S130 系列 I/O 架構，保障光口間數據轉發效率，兼容各類千兆 SFP 光模塊（如多模、單模）。
- 場景適配：支持熱插拔設計，更換或維護時無需關停交換機，減少業務中斷風險。
- 光纖園區網：用于企業、園區的光纖接入層擴展，連接遠端樓宇的光口交換機或無線基站。
- 數據中心：擴展服務器、存儲設備的光口連接端口，滿足高密度千兆數據交互需求。
- 長距離組網：搭配單模 SFP 光模塊，實現跨區域（如幾公里至幾十公里）的千兆數據傳輸。
- 兼容性驗證：需確認目標設備為 S130 S-Series 交換機，且插槽支持 Type1 類型擴展模塊。
- 采購注意：主流流通版本為翻新型號，需向供應商索要測試報告及質保服務。
- 模塊搭配：需單獨采購適配的 SFP 光模塊，確保光模塊與傳輸距離、光纖類型匹配。
Extreme Networks SG4101-0248擴展插槽模塊 英文資料：
1、 Quick overview of core parameters
Model attribute: Enterasys SG4101-0248 is a Type1 type I/O expansion module for Extreme Networks' H13S Series switches, featuring high-density optical port expansion capabilities.
Port configuration: Equipped with 48 1000Base-X SFP optical ports, which need to be used with SFP optical modules to flexibly connect fiber optic links or gigabit optical port devices.
Hardware positioning: As a hot swappable expansion module, it needs to be inserted into the corresponding slot of the H13S Series switch chassis to expand the device's optical port density.
2、 Core functions and values
Density Expansion: A single module provides 48 gigabit optical ports, greatly improving the switch's access capability and adapting to fiber networking scenarios.
Flexible adaptation: Based on the 130 series I/O architecture, it ensures the efficiency of data forwarding between optical ports and is compatible with various gigabit SFP optical modules (such as multi-mode and single-mode).
Scenario adaptation: Supports hot swappable design, eliminating the need to shut down the switch during replacement or maintenance, reducing the risk of business interruption.
3、 Typical use
Fiber optic park network: used for expanding the fiber optic access layer of enterprises and parks, connecting optical port switches or wireless base stations of remote buildings.
Data center: Expand the optical port connection ports of servers and storage devices to meet the high-density gigabit data exchange requirements.
Long distance networking: Paired with single-mode SFP optical modules, achieve gigabit data transmission across regions (such as several kilometers to tens of kilometers).
4、 Usage reminder
Compatibility verification: It is necessary to confirm that the target device is an H13S Series switch and that the slot supports Type1 expansion modules.
Procurement Attention: The mainstream circulation version is a refurbished model, and testing reports and warranty services need to be requested from the supplier.
Module configuration: It is necessary to separately purchase suitable SFP optical modules to ensure that the optical modules match the transmission distance and fiber type.

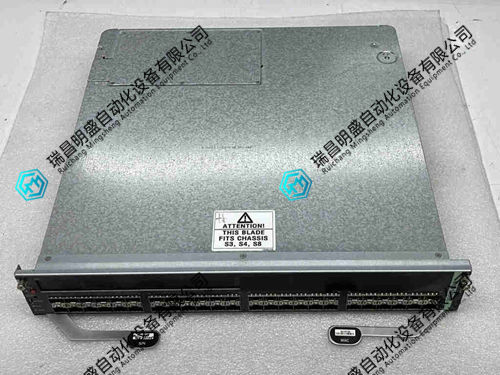

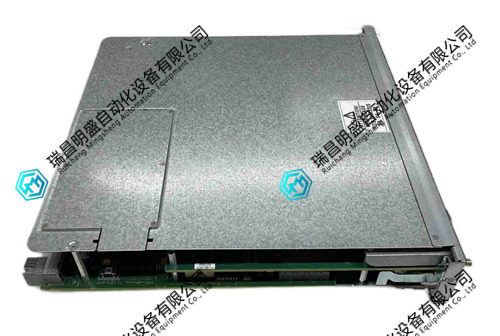

Extreme Networks SG4101-0248擴展插槽模塊 產品展示
產品視頻
