AMAT Applied Materials 0100-09011印刷電路板
1.產 品 資 料 介 紹：
類別 | 規格 |
基板材質 | 玻璃纖維增強環氧樹脂（FR-4），Tg≥155℃ |
布線層數 | 6 層，線寬 / 線距≥3mil/3mil，阻抗控制 ±10%（適配 50Ω/75Ω 信號） |
接口特性 | 集成 4 路模擬信號接口（適配 0-10V/4-20mA）、6 路數字 I/O 接口、2 路 RS-485 通訊接口 |
環境適配 | -10-65℃、濕度＜85% 無冷凝、抗 EMI 干擾（EN 61000-6-2） |
防護特性 | 表面涂覆三防漆（防潮、防鹽霧、防霉菌），焊點抗氧化處理 |
兼容性 | 兼容 AMAT 0100-09063 模擬輸入模塊、0100-66025 控制模塊、0100-02839 機架組件 |
- 信號中轉適配：連接 0100-09063 模擬輸入模塊與 0100-66025 控制模塊，實現模擬信號到數字信號的過渡傳輸，解決不同模塊接口不兼容問題。
- 局部信號處理：對溫度、壓力傳感器的原始模擬信號進行初步濾波、放大，減少長距離傳輸?shù)男盘枔p耗，提升后續采集精度。
- 子系統集成：整合氣缸（3020-00121）位置反饋、電磁閥控制信號，形成局部控制單元，輔助主控制模塊減輕運算負荷。
AMAT Applied Materials 0100-09011印刷電路板 英文資料：
1、 Core positioning
AMAT 0100-09011 is the "signal integration and functional carrier" of semiconductor equipment electronic control systems, responsible for signal transfer, preliminary processing, and interface adaptation functions of analog input modules (such as 0100-09063), sensors and control modules (0100-66025). It adopts anti-interference wiring and high reliability packaging, adapts to Class 100 clean environments and high-frequency signal transmission scenarios, and ensures stable flow of equipment electronic control signals.
2、 Key parameters
Category
Specifications
Substrate material
Glass fiber reinforced epoxy resin (FR-4), Tg ≥ 155 ℃
Number of wiring layers
6 layers, line width/spacing ≥ 3mil/3mil, impedance control ± 10% (suitable for 50 Ω/75 Ω signals)
Interface characteristics
Integrate 4 analog signal interfaces (compatible with 0-10V/4-20mA), 6 digital I/O interfaces, and 2 RS-485 communication interfaces
Environmental adaptation
-10-65 ℃, humidity<85%, no condensation, anti EMI interference (EN 61000-6-2)
Protective characteristics
Surface coating with three proof paint (moisture-proof, salt spray proof, mold proof), solder joints treated with anti-oxidation
Compatibility
Compatible with AMAT 0100-09063 analog input module, 0100-66025 control module, 0100-02839 rack components
3、 Core applications
Signal transfer adaptation: Connect the 0100-09063 analog input module with the 0100-66025 control module to achieve the transition transmission of analog signals to digital signals, and solve the problem of incompatible interfaces between different modules.
Local signal processing: Preliminary filtering and amplification of raw analog signals from temperature and pressure sensors to reduce signal loss during long-distance transmission and improve subsequent acquisition accuracy.
Subsystem integration: Integrate cylinder (3020-00121) position feedback and solenoid valve control signals to form a local control unit, assisting the main control module in reducing computational load.

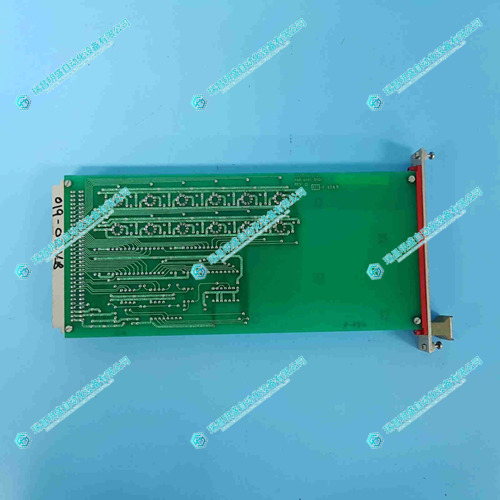

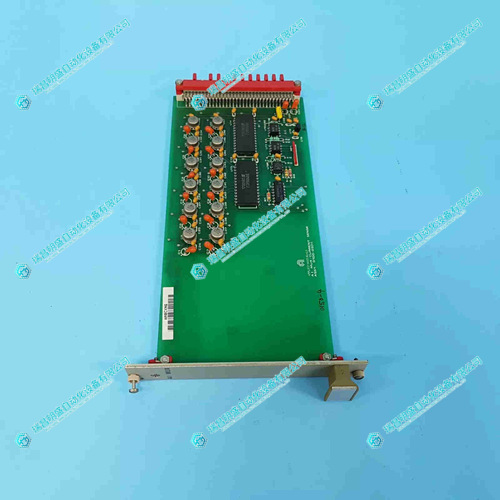

AMAT Applied Materials 0100-09011印刷電路板 產品展示
產品視頻
