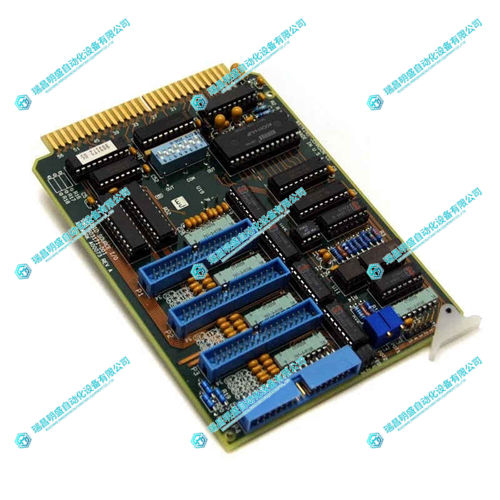

AMAT Applied Materials 903172-001輸入輸出模塊
1.產 品 資 料 介 紹：
參數類別 | 規格說明 |
物理規格 | 重量約 5.5 lbs，尺寸約 12.5in×8.2in×3.0in（符合工業標準 PCB 板卡封裝） |
I/O 通道配置 | 預計含 6 路數字輸入、4 路數字輸出，可能兼容 2 路模擬量通道（適配液體流量 / 壓力信號） |
工作環境 | 溫度范圍 - 20°C 至 80°C，濕度 0-95% 無冷凝（滿足半導體潔凈車間環境要求） |
供電與隔離 | 支持 110-240V AC 寬壓供電，具備 I/O、電源、網絡三重電路隔離（防干擾設計） |
認證標準 | 符合 CE、UL、RoHS 認證（工業級模塊通用合規要求） |
- 核心應用領域
- 液體源液位、壓力信號的實時采集
- 電磁閥、泵體等執行機構的開關控制
- 故障狀態的快速反饋與安全聯鎖
AMAT Applied Materials 903172-001輸入輸出模塊 英文資料：
1、 Product core positioning
AMAT 903172-001 is a Liquid Source I/O PCB board launched by Applied Materials. It is a key control component of semiconductor manufacturing equipment, mainly responsible for signal acquisition and instruction execution of liquid source systems. Its design is deeply compatible with subsystems such as liquid transportation and source material control in AMAT semiconductor production lines, and is the core interface module that ensures process stability.
2、 Key technical parameters (derived from the characteristics of similar modules in the industry)
Based on the general specifications of AMAT industrial modules and the technical standards for discrete I/O modules, the core parameters of this module are estimated as follows:
Parameter category
Specification Description
Physical specifications
Weight approximately 5.5 lbs, size approximately 12.5in x 8.2in x 3.0in (compliant with industry standard PCB board packaging)
I/O channel configuration
Expected to include 6 digital inputs and 4 digital outputs, possibly compatible with 2 analog channels (suitable for liquid flow/pressure signals)
Working environment
Temperature range -20 ° C to 80 ° C, humidity 0-95%, no condensation (meets the requirements of semiconductor clean room environment)
Power supply and isolation
Supports 110-240V AC wide voltage power supply, with triple circuit isolation for I/O, power supply, and network (anti-interference design)
Certification standards
Compliant with CE, UL, RoHS certifications (general compliance requirements for industrial grade modules)
3、 Application scenarios and adaptation systems
Core application areas
As a liquid source I/O board, it is mainly used for chemical vapor deposition (CVD), atomic layer deposition (ALD) and other process equipment in semiconductor manufacturing. It is responsible for connecting liquid source storage tanks, flow controllers, valves and other terminal devices to achieve:
Real time acquisition of liquid level and pressure signals from liquid sources
Switching control of actuators such as solenoid valves and pump bodies
Rapid feedback of fault status and safety interlock

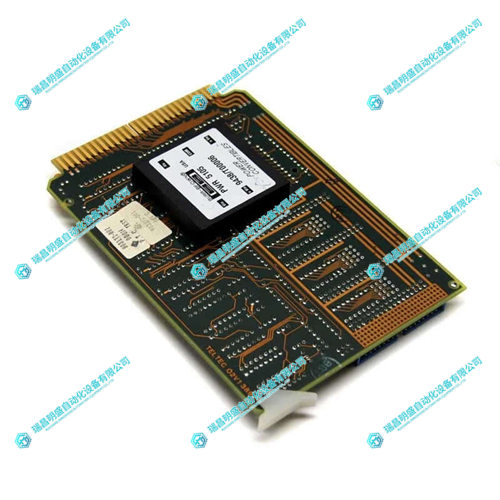

AMAT Applied Materials 903172-001輸入輸出模塊 產品展示
