ABB TU846 終端單元
1.產 品 資 料 介 紹：
中文資料：
ABB TU846 是一款用于 工業自動化系統 的 終端單元（Terminal Unit），主要用于 ABB 的分布式控制系統（DCS） 或 PLC 系統，負責將現場信號（如傳感器、執行器）連接到控制系統中。TU846 通常配合 ABB 的其他控制組件使用，能夠?qū)崿F(xiàn)信號的高效處理、傳輸和轉換。
1. 產品概述
- 制造商：ABB
- 產品型號：TU846
- 設備類型：終端單元
- 應用領域：工業自動化、過程控制、分布式控制系統（DCS）
- 功能：信號采集、信號轉換與傳輸
2. 主要技術參數
| 參數 | 規格 |
|---|---|
| 輸入電壓 | 24V DC |
| 工作溫度 | -20°C 至 +60°C |
| 存儲溫度 | -40°C 至 +85°C |
| 信號接口 | 數字和模擬輸入輸出（DI/DO、AI/AO） |
| 通信協議 | HART、Modbus、Profibus等 |
| 尺寸 | 適配不同系統，通常為標準模塊大小 |
| 安裝方式 | DIN 導軌安裝 |
3. 主要功能
? 信號采集與傳輸
- TU846 終端單元可以連接到現場的 傳感器、執行器 等設備，采集 模擬信號或數字信號，并將這些信號轉換為 控制系統可處理的數據格式。
- 它負責 信號的預處理，確保信號能被 精確無誤地傳輸 到后端控制系統。
? 協議兼容性
- TU846 支持 Modbus、HART、Profibus 等通信協議，能夠與各種 PLC、DCS、SCADA 系統 兼容，廣泛應用于 工業自動化控制 和 遠程監控系統。
? 靈活的 I/O 配置
- 提供多種 數字和模擬輸入輸出接口，可根據現場需求進行 靈活配置，適應不同的設備與系統要求。
- 兼容多種 傳感器 和 執行器，包括壓力傳感器、溫度傳感器、電流傳感器等。
? 高可靠性與抗干擾性
- 工業級設計，具備 強大的抗干擾能力，能夠適應 惡劣環境，如高溫、濕度、振動等。
- 過載保護、短路保護 和 高可靠性組件，保證系統長期穩定運行。
英文資料：
ABB TU846 is a terminal unit used in industrial automation systems, primarily for ABB's distributed control systems (DCS) or PLC systems, responsible for connecting field signals such as sensors and actuators to the control system. TU846 is usually used in conjunction with other control components of ABB to achieve efficient signal processing, transmission, and conversion.
1. Product Overview
manufacturer: ABB
Product model: TU846
Equipment type: Terminal unit
Application areas: Industrial automation, process control, distributed control systems (DCS)
Function: Signal acquisition, signal conversion and transmission
2. Main technical parameters
Parameter specifications
Input voltage 24V DC
Working temperature -20 ° C to+60 ° C
Storage temperature -40 ° C to+85 ° C
Signal interface digital and analog input/output (DI/DO, AI/AO)
Communication protocols such as HART, Modbus, Profibus, etc
Size adaptation to different systems, usually standard module size
Installation method: DIN rail installation
3. Main functions
? Signal acquisition and transmission
The TU846 terminal unit can be connected to on-site sensors, actuators, and other devices to collect analog or digital signals, and convert these signals into data formats that can be processed by the control system.
It is responsible for signal preprocessing, ensuring that the signal can be transmitted accurately and without error to the backend control system.
? protocol compatibility
TU846 supports communication protocols such as Modbus, HART, Profibus, etc., and is compatible with various PLC, DCS, SCADA systems. It is widely used in industrial automation control and remote monitoring systems.
? Flexible I/O configuration
Provide multiple digital and analog input/output interfaces, which can be flexibly configured according to on-site needs to adapt to different equipment and system requirements.
Compatible with multiple sensors and actuators, including pressure sensors, temperature sensors, current sensors, etc.
? High reliability and anti-interference capability
Industrial grade design with strong anti-interference ability, able to adapt to harsh environments such as high temperature, humidity, vibration, etc.
Overload protection, short circuit protection, and high reliability components ensure long-term stable operation of the system.

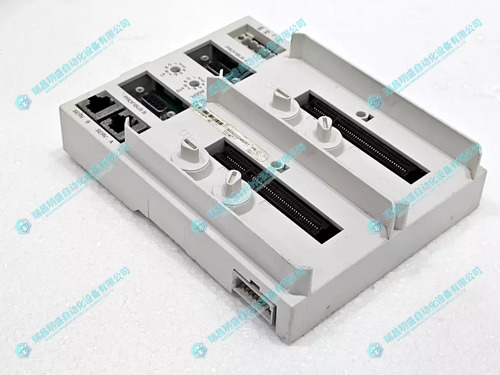

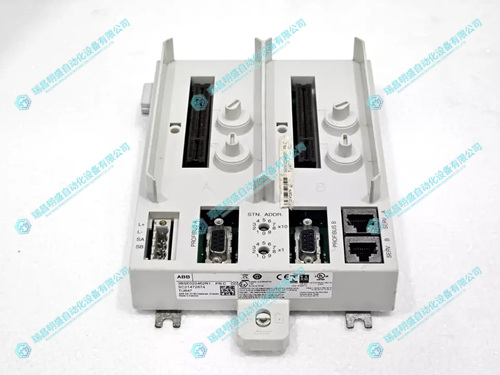

2.產 品 展 示
