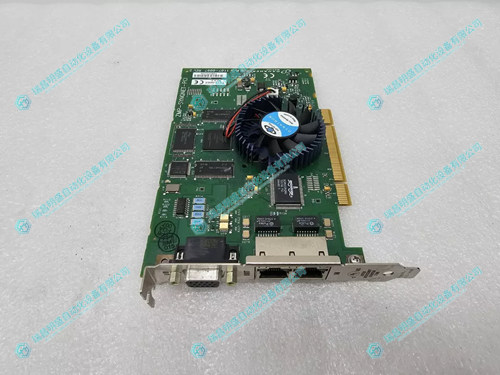

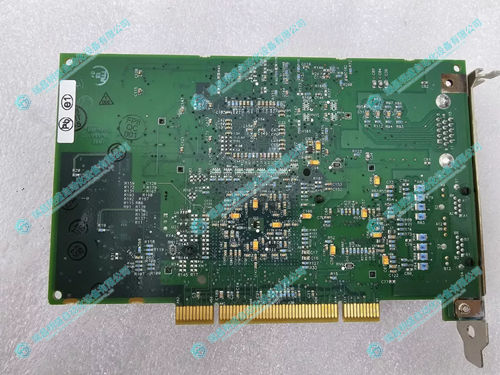

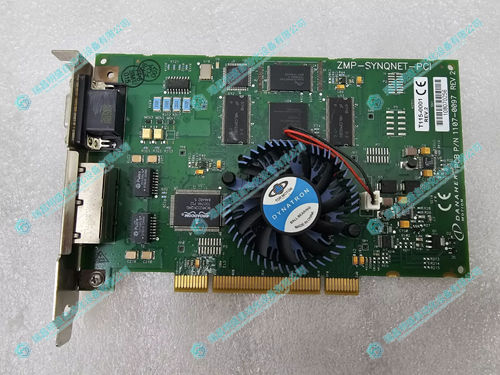

DANAHER ZMP-SYNQNET-PCI 運動控制模塊

1.產 品 資 料 介 紹：

中文資料：

DANAHER ZMP-SYNQNET-PCI 是一款 高性能 PCI 運動控制模塊，用于 多軸運動控制系統，主要應用于 精密自動化、機器人、數控機床、半導體制造、電子裝配等領域。它采用 SynqNet 作為通信協議，提供高速、實時的分布式運動控制，適用于高精度同步控制和復雜運動軌跡的應用。

1. 產品概述

• 制造商：DANAHER Motion
• 產品型號：ZMP-SYNQNET-PCI
• 產品類型：PCI 運動控制模塊
• 總線接口：PCI（標準 32-bit 插槽）
• 通信協議：SynqNet（高帶寬實時運動控制網絡）
• 典型應用：
  • 多軸運動控制（CNC 機床、機器人）
  • 電子制造、半導體設備
  • 3D 打印、激光切割、光學檢測
  • 自動化流水線
  • 高精度定位系統

2. 主要技術參數

3. 主要特點

? 支持 SynqNet 通信協議：SynqNet 是一種專為運動控制優化的 實時以太網協議，支持分布式 I/O 和多個運動軸的同步控制。
? 高軸數支持：可以擴展 多達 32 軸 的運動控制，適用于大規模自動化生產設備。
? 高速數據傳輸：支持 100Mbps 通信速率，保證精確的運動控制。
? 精準同步控制：納秒級同步能力，確保多軸協同運動，適用于激光加工、3D 打印等高精度應用。
? PCI 即插即用：采用標準 PCI 插槽，兼容 工業 PC、CNC 控制器 等設備，便于集成。
? 強大的軟件支持：提供 SDK 開發工具包，支持 C/C++、LabVIEW、Matlab 等開發環境，可自定義控制算法。
? 兼容各種反饋設備：支持 增量編碼器、絕對值編碼器、模擬/數字信號反饋，適應不同傳感器。

英文資料：

DANAHER ZMP-SYNQNET-PCI is a high-performance PCI motion control module used in multi axis motion control systems, mainly applied in precision automation, robotics, CNC machine tools, semiconductor manufacturing, electronic assembly and other fields. It adopts SynqNet as the communication protocol, providing high-speed and real-time distributed motion control, suitable for high-precision synchronous control and applications with complex motion trajectories.

1. Product Overview

manufacturer: DANAHER Motion

Product model: ZMP-SYNQNET-PCI

Product type: PCI motion control module

Bus interface: PCI (standard 32-bit slot)

Communication Protocol: SynqNet (High bandwidth Real time Motion Control Network)

Typical applications:

Multi axis motion control (CNC machine tools, robots)

Electronic manufacturing, semiconductor equipment

3D printing, laser cutting, optical inspection

Automated assembly line

High precision positioning system

2. Main technical parameters

Parameter specifications

Communication interface PCI bus

Control Network SynqNet

Supports 4-32 axes (depending on configuration)

Data transmission rate up to 100Mbps

Synchronization accuracy nanosecond level (suitable for high-precision synchronization control)

I/O expansion compatible with external I/O modules

Feedback support supports multiple encoder feedbacks (incremental/absolute encoder)

Operating system compatibility with Windows/Linux (based on dedicated SDK)

Real time hardware level real-time performance, supporting motion trajectory planning

Typical control methods include position control, speed control, and torque control

3. Main features

?  Support SynqNet communication protocol: SynqNet is a real-time Ethernet protocol optimized for motion control, supporting distributed I/O and synchronous control of multiple motion axes.

?  High axis support: can expand motion control up to 32 axes, suitable for large-scale automated production equipment.

?  High speed data transmission: Supports 100Mbps communication rate to ensure precise motion control.

?  Precise synchronization control: nanosecond level synchronization capability ensures multi axis coordinated motion, suitable for high-precision applications such as laser processing and 3D printing.

?  PCI Plug and Play: Using standard PCI slots, compatible with industrial PCs, CNC controllers, and other devices for easy integration.

?  Powerful software support: provides SDK development toolkit, supports C/C++, LabVIEW, Matlab and other development environments, and can customize control algorithms.

?  Compatible with various feedback devices: support incremental encoder, absolute encoder, analog/digital signal feedback, and adapt to different sensors.
