GE 193X227BCG01電源模塊
1.產 品 資 料 介 紹：
中文資料：
193X227BCG01 電源模塊
產品簡介
193X227BCG01 是由 GE（General Electric，通用電氣）制造的工業級電源模塊，廣泛應用于 GE 的控制系統平臺中，特別是用于供電穩定性要求高的工業自動化場合。該模塊通過將外部輸入電源轉換為控制系統所需的穩壓直流電源，確保整個系統在高負載或惡劣環境下仍能穩定運行。
主要功能
穩壓供電：將 AC 輸入轉換為多個穩定的 DC 輸出電壓，用于驅動其他控制電路板或模塊。
過壓/過流保護：內置完善的保護電路，有效防止因異常輸入或系統故障導致的模塊損壞。
電磁干擾抑制：采用高質量濾波器設計，顯著降低外部 EMI 對系統運行的影響。
溫控設計：具備良好的散熱結構與溫度監控機制，提升模塊的持續工作能力和壽命。
模塊化安裝：便于在機架或控制柜中與其他 193X 系列模塊配合安裝與更換。
技術規格
輸入電壓：一般為 120V 或 240V AC（具體以標簽或手冊為準）
輸出電壓：提供多個標準 DC 電壓通道，如 ±15V、+5V、+24V 等
功率等級：支持中等功率輸出，適合多塊電路板聯合運行
工作溫度：-20°C 至 +70°C，適合各種工業應用環境
冷卻方式：自然對流或強制風冷（取決于系統設計）
接口類型：標準引腳接線端子或模塊插槽對接接口
應用范圍
GE Mark 系列控制系統
工廠自動化與控制平臺
電力設備狀態監控系統
工業過程控制設備供電單元
高穩定性模擬或數字控制板供電源
英文資料：
193X227BCG01 power module
Product Introduction
193X227BCG01 is an industrial grade power module manufactured by General Electric, widely used in GE's control system platforms, especially in industrial automation applications that require high power supply stability. This module ensures stable operation of the entire system even under high loads or harsh environments by converting external input power into a regulated DC power supply required by the control system.
major function
Stabilized power supply: converts AC input into multiple stable DC output voltages for driving other control circuit boards or modules.
Overvoltage/Overcurrent Protection: Built in comprehensive protection circuits effectively prevent module damage caused by abnormal inputs or system failures.
Electromagnetic interference suppression: Adopting high-quality filter design, significantly reducing the impact of external EMI on system operation.
Temperature control design: It has a good heat dissipation structure and temperature monitoring mechanism, which enhances the continuous working ability and lifespan of the module.
Modular installation: facilitates installation and replacement with other 193X series modules in the rack or control cabinet.
technical specifications
Input voltage: generally 120V or 240V AC (please refer to the label or manual for details)
Output voltage: Provides multiple standard DC voltage channels, such as ± 15V+ 5V+ 24V, etc
Power level: Supports medium power output, suitable for joint operation of multiple circuit boards
Working temperature:- 20 ° C to+70 ° C, suitable for various industrial application environments
Cooling method: natural convection or forced air cooling (depending on system design)
Interface type: standard pin terminal block or module slot docking interface
Application scope
GE Mark series control system
Factory Automation and Control Platform
Power Equipment Status Monitoring System
Power supply unit for industrial process control equipment
High stability analog or digital control board power supply

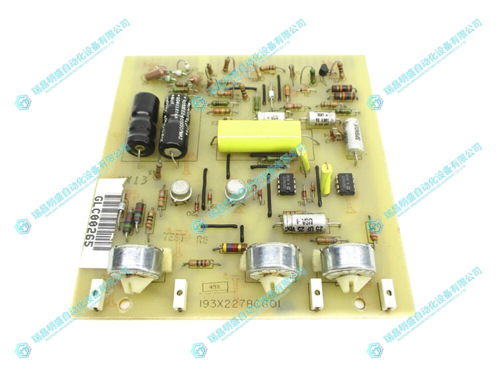

2.產 品 展 示
