GE 193X226BAG01放大器模塊
1.產 品 資 料 介 紹：
中文資料：

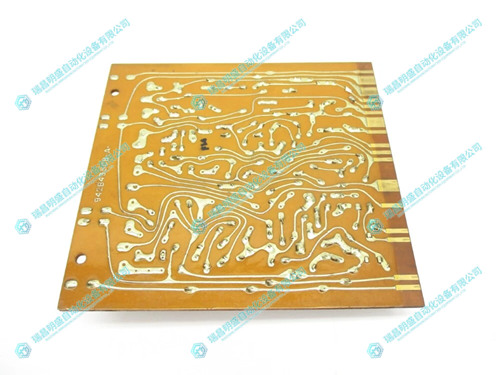

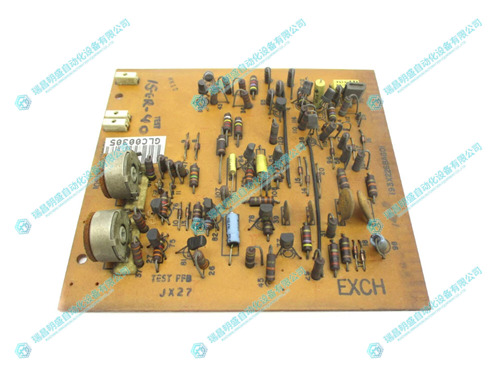

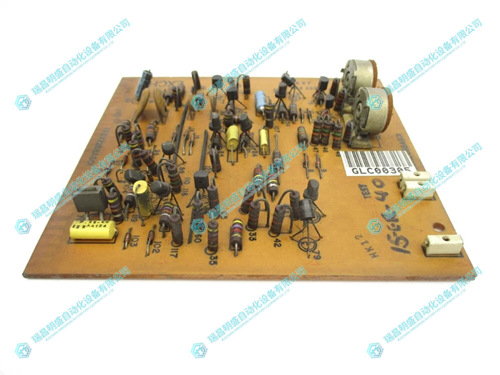

193X226BAG01 放大器模塊
產品概述
193X226BAG01 是 GE（通用電氣）為其工業自動化平臺設計的一款高性能放大器模塊。該模塊主要用于接收、放大低電平輸入信號，并將其轉換為系統可識別的控制信號，確保整個控制系統在各種工業環境中實現高可靠性的信號傳輸和執行響應。
核心功能
信號放大：對來自傳感器或外部設備的模擬電壓信號進行線性放大，提升信號強度，滿足下游處理模塊的輸入需求。
電氣隔離：模塊內部集成隔離電路，用于輸入和輸出之間的信號隔離，增強系統抗干擾能力。
增益調節：支持手動或預設方式調整放大倍數，適應不同應用場景下的信號范圍。
噪聲濾波：具備輸入濾波功能，消除高頻干擾和電磁噪聲，保證信號純凈。
模塊保護：具備短路保護、過壓保護和過溫報警機制，保障模塊與系統的安全運行。
技術參數
輸入信號類型：低電平直流模擬信號
輸出信號：線性放大后的直流電壓信號
電源電壓：通常為 ±15V 或 ±24V DC（視系統配置）
工作溫度范圍：-20°C 至 +70°C
響應速度：高頻響應能力，適合快速變化信號場景
安裝方式：面板安裝或標準機架插槽安裝
外形尺寸：標準工業尺寸，兼容 GE 控制框架結構
應用領域
工業自動化系統中的信號調節與傳輸
電力控制系統的狀態反饋信號放大
工廠傳感器信號輸入處理
過程控制系統中的模擬量控制通道
適用于 GE 193X 控制板系列平臺的擴展功能模塊
英文資料：
193X226BAG01 amplifier module
product overview
193X226BAG01 is a high-performance amplifier module designed by GE for its industrial automation platform. This module is mainly used to receive and amplify low-level input signals, and convert them into system recognizable control signals, ensuring high reliability signal transmission and execution response of the entire control system in various industrial environments.
Core functions
Signal amplification: Linear amplification of analog voltage signals from sensors or external devices to enhance signal strength and meet the input requirements of downstream processing modules.
Electrical isolation: The integrated isolation circuit within the module is used for signal isolation between input and output, enhancing the system's anti-interference ability.
Gain adjustment: Supports manual or preset adjustment of amplification factors to adapt to signal ranges in different application scenarios.
Noise filtering: With input filtering function, it eliminates high-frequency interference and electromagnetic noise, ensuring signal purity.
Module protection: equipped with short-circuit protection, overvoltage protection, and over temperature alarm mechanisms to ensure the safe operation of modules and systems.
Technical Parameter
Input signal type: low-level DC analog signal
Output signal: linearly amplified DC voltage signal
Power supply voltage: typically ± 15V or ± 24V DC (depending on system configuration)
Working temperature range:- 20 ° C to+70 ° C
Response speed: High frequency response capability, suitable for rapidly changing signal scenarios
Installation method: panel installation or standard rack slot installation
Dimensions: Standard industrial size, compatible with GE control frame structure
application area
Signal Regulation and Transmission in Industrial Automation Systems
Amplification of state feedback signals in power control systems
Factory sensor signal input processing
Analog Control Channels in Process Control Systems
Expansion Function Module for GE 193X Control Board Series Platform
