GE 193X227BCG02放大器卡
1.產 品 資 料 介 紹：
中文資料：
193X227BCG02 放大器卡（Amplifier Card）
產品概述
193X227BCG02 是 GE（General Electric）193X 系列中一款高精度工業放大器卡，主要用于模擬信號的放大處理，廣泛應用于工業自動化控制系統、驅動控制器和信號反饋模塊中。該卡設計用于提升微弱輸入信號的幅度，以便后續處理電路可以精確識別和控制。
主要功能特點
高增益線性放大：模塊具備高增益放大能力，適用于低電平信號處理，如電流傳感器、電壓檢測等。
輸入噪聲抑制：內置濾波電路，有效抑制工業現場的噪聲與電磁干擾，保障信號純凈度。
增益調節功能：用戶可通過電位器或跳線進行增益微調，適配不同的傳感器或負載特性。
電氣隔離設計：輸入與輸出之間隔離處理，避免控制系統內部的信號串?dāng)_或接地干擾。
模塊化插卡設計：兼容 GE 控制系統的插槽結構，便于安裝、更換與維護。
技術參數
輸入信號范圍：0～5V、0～10V 或 ±10V（具體取決于系統應用配置）
輸出信號范圍：與控制系統匹配的標準線性 DC 電壓
增益精度：高達 ±0.1%，適用于精密控制需求
響應時間：微秒級快速響應，適合動態變化信號處理
工作電源：±15V 或 ±24V（由系統母板供電）
溫度范圍：-20°C 至 +70°C
PCB 材質：工業級 FR-4 板材，耐高溫、防潮處理
應用領域
電機驅動系統中的反饋信號調理
工業傳感器信號放大
PLC 或 DCS 系統的模擬信號輸入預處理
電力自動化系統中微弱信號通道放大
與 GE 193X 系列系統配套使用
英文資料：
193X227BCG02 Amplifier Card
product overview
193X227BCG02 is a high-precision industrial amplifier card in the GE 193X series, mainly used for amplifying and processing analog signals. It is widely used in industrial automation control systems, drive controllers, and signal feedback modules. This card is designed to enhance the amplitude of weak input signals, so that subsequent processing circuits can accurately identify and control them.
Main functional features
High gain linear amplification: The module has high gain amplification capability and is suitable for low-level signal processing, such as current sensors, voltage detection, etc.
Input noise suppression: Built in filtering circuit effectively suppresses noise and electromagnetic interference in industrial sites, ensuring signal purity.
Gain adjustment function: Users can adjust the gain through potentiometers or jumpers to adapt to different sensor or load characteristics.
Electrical isolation design: Isolation processing between input and output to avoid signal crosstalk or grounding interference within the control system.
Modular card insertion design: compatible with the slot structure of GE control system, easy to install, ｒｅｐｌａｃｅ and maintain.
Technical Parameter
Input signal range: 0-5V, 0-10V, or ± 10V (depending on the system application configuration)
Output signal range: standard linear DC voltage matched with the control system
Gain accuracy: up to ± 0.1%, suitable for precision control requirements
Response time: microsecond level fast response, suitable for dynamic signal processing
Working power supply: ± 15V or ± 24V (powered by the system motherboard)
Temperature range:- 20 ° C to+70 ° C
PCB material: industrial grade FR-4 board, high temperature resistant and moisture-proof treatment
application area
Feedback signal conditioning in motor drive system
Industrial sensor signal amplification
Preprocessing of analog signal input for PLC or DCS system
Weak signal channel amplification in power automation system
Used in conjunction with GE 193X series system

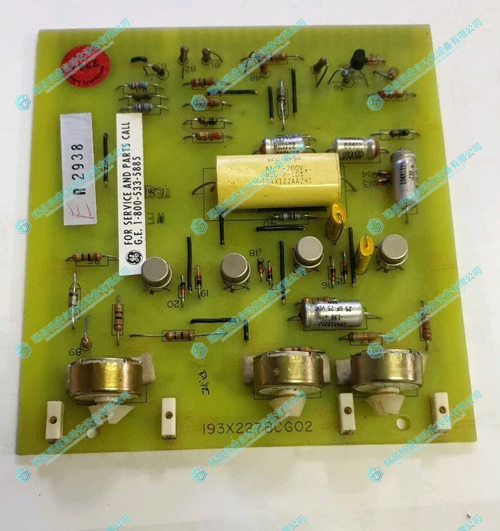

2.產 品 展 示
