GE 193X228BAG01輔助功能板
1.產 品 資 料 介 紹：
中文資料：

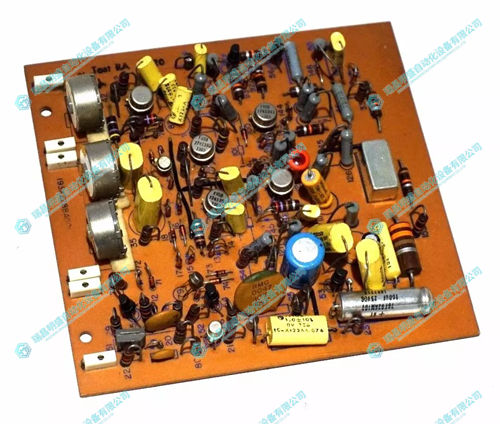

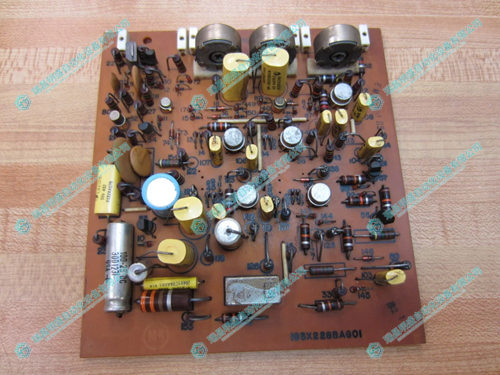

193X228BAG01 輔助功能板（Auxiliary Function Board）
產品簡介
193X228BAG01 是 GE（General Electric）193X 系列工業控制系統中的一款輔助功能電路板，用于擴展主控模塊的功能，實現系統的信號接口補充、狀態監控、邏輯控制等功能。其設計結構支持與主控制卡并行協作，提高控制系統的兼容性、功能性與可靠性。
主要功能
信號擴展：提供多個輸入輸出接口，用于采集或發送控制信號。
邏輯處理：板上集成邏輯門電路，可處理基本控制邏輯任務，如與、或、非邏輯判斷。
狀態指示：具備 LED 狀態顯示功能，便于調試和故障排查。
保護與隔離：對接入信號進行隔離和濾波，增強抗干擾能力，防止系統損壞。
與主板通信：通過專用總線接口與主控制模塊通信，實現同步控制與狀態反饋。
技術參數
電源供電：由系統主板提供 ±15V 或 ±24V DC
I/O 接口：多通道數字輸入輸出，帶緩沖與保護電路
邏輯電平：TTL 或 CMOS 電平兼容
響應時間：典型 <1ms，適用于高速信號處理
工作溫度：-20°C ～ +70°C
安裝方式：插槽式或螺絲固定，支持標準 GE 架構機柜
PCB 材質：工業級雙面電路板，具有阻燃和耐高溫特性
應用場景
工業自動化控制系統的輔助信號處理
GE 控制系統的邏輯擴展與控制指令分發
模擬/數字混合控制系統接口補充
電力自動化系統中的輔助邏輯處理單元
與 GE 193X 控制系統配套使用的功能擴展板
英文資料：
193X228BAG01 Auxiliary Function Board
Product Introduction
193X228BAG01 is an auxiliary function circuit board in the GE (General Electric) 193X series industrial control system, used to expand the functions of the main control module, achieve signal interface supplementation, status monitoring, logic control and other functions of the system. Its design structure supports parallel collaboration with the main control card, improving the compatibility, functionality, and reliability of the control system.
major function
Signal extension: Provides multiple input/output interfaces for collecting or sending control signals.
Logical processing: Integrated logic gate circuits on the board can handle basic control logic tasks, such as AND, OR, and non logical judgments.
Status indication: Equipped with LED status display function, easy to debug and troubleshoot.
Protection and isolation: Isolate and filter the access signal to enhance anti-interference ability and prevent system damage.
Communication with the motherboard: Communicate with the main control module through a dedicated bus interface to achieve synchronous control and status feedback.
Technical Parameter
Power supply: ± 15V or ± 24V DC provided by the system motherboard
I/O interface: multi-channel digital input/output, with buffering and protection circuit
Logic level: TTL or CMOS level compatible
Response time: Typical<1ms, suitable for high-speed signal processing
Working temperature:- 20°C ～ +70°C
Installation method: slot or screw fixed, supporting standard GE architecture cabinets
PCB material: Industrial grade double-sided circuit board with flame retardant and high temperature resistance characteristics
Application scenarios
Auxiliary signal processing for industrial automation control systems
Logic Expansion and Control Instruction Distribution of GE Control System
Supplementary interface for analog/digital hybrid control system
Auxiliary logic processing unit in power automation system
Function expansion board for use with GE 193X control system
