Motorola 01-W3496B01適配器卡
1.產 品 資 料 介 紹：
Motorola 01-W3496B01 VMEbus 適配器卡技術解析
一、核心技術特性
1. 接口擴展能力：補充多類型 I/O 通道
2. 信號適配功能：解決跨標準兼容問題
Motorola 01-W3496B01適配器卡 英文資料：
Technical Analysis of Motorola 01-W3496B01 VMEbus Adapter Card
Motorola 01-W3496B01 is an industrial grade interface expansion adapter card designed specifically for the VMEbus system. Its core positioning is "signal adaptation bridge+peripheral expansion hub" - by supplementing I/O channels and achieving cross standard signal conversion, it provides compatibility enhancement and functional expansion for the main control board (such as VME architecture CPU board, single board computer), helping the VME system adapt to more types of peripherals and meet the complex requirements of multi board collaboration in industrial control, energy, communication, defense and other fields. It is a key component for improving flexibility in modular embedded systems.
1、 Core technical characteristics
1. Interface expansion capability: Supplement multiple types of I/O channels
As a "peripheral connection hub", this adapter card can expand rich I/O interfaces for the main control board, covering common peripheral requirements in industrial scenarios. The specific configuration may vary slightly depending on the version:
Digital I/O Expansion: Added 16-32 digital input/output channels, supporting two signal types: dry contact and wet contact. It can directly connect relays, solenoid valves, limit switches, indicator lights, and other devices to solve the problem of insufficient native I/O channels on the main control board (such as simultaneous access of multiple workstation sensors on the production line);
Serial communication expansion: Expand 2-4 RS-232/RS-422/RS-485 serial ports, among which RS-422/485 supports differential signal transmission, has strong anti-interference ability, and can transmit up to 1200 meters, suitable for industrial field remote peripherals (such as remote temperature and humidity sensors in workshops and scanning devices in storage areas);
Special interface reservation: Some versions reserve CAN bus and Ethernet (10/100Mbps) interface extension bits, which can support industrial fieldbus or network communication by adding submodules to achieve interconnection with intelligent devices such as industrial robots and IoT gateways.
2. Signal adaptation function: solving cross standard compatibility issues
As a "signal conversion bridge", the card supports signal adaptation and isolation between multiple electrical standards, avoiding faults caused by incompatible signals between different devices:
Level conversion: Implement bidirectional conversion between TTL level, RS-232 level, and RS-485 differential level, such as converting TTL control signals output by the main control board to RS-485 level to drive remote actuators;
Signal isolation: Key channels are integrated with optoelectronic isolation circuits (with a typical isolation voltage of 2500Vrms) to block common ground interference between the main control board and peripherals (such as surge currents generated by industrial motor start stop and strong magnetic field interference from power equipment), protect the core circuit of the main control board, and improve signal transmission stability;
Signal conditioning: Filter and amplify the collected analog signals (such as current and voltage signals) to reduce noise interference (such as high-frequency noise generated by frequency converters) and ensure the accuracy of data transmitted to the main control board.

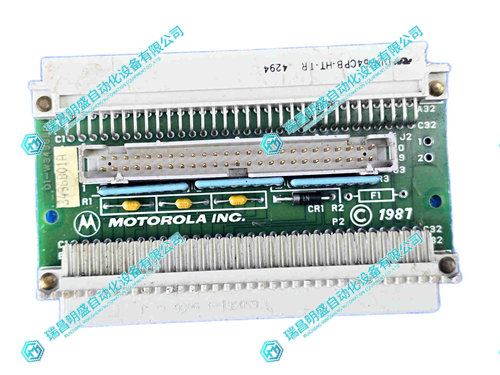

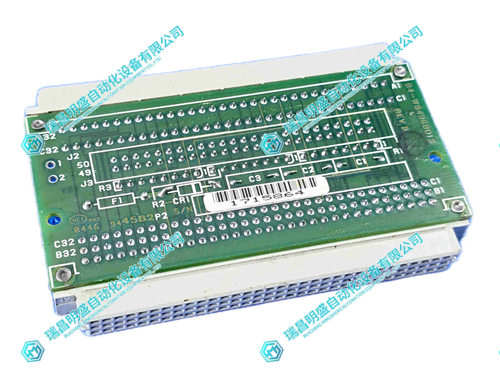

Motorola 01-W3496B01適配器卡 產 品 展 示
