GE   DS200FCGDH1A控制模塊

1.產 品 資 料 介 紹：

中文資料：

DS200FCGDH1A 是 GE Mark V 系統中的一個現場控制信號分配板（Field Control General Distribution），其主要作用是連接主控制系統與現場設備之間的信號路徑，用于組織、隔離、分配和保護輸入輸出通道，保障控制系統的運行安全與信號傳輸?shù)那逦浴?/p>

它并不直接參與邏輯處理，而是作為信號分配中心存在，是整個 I/O 系統中非常關鍵的“樞紐板卡”。

主要功能

1. 信號通道管理：接收主控板發出的控制信號，并將其分配至相應的輸出通道。

2. 信號匯聚：采集現場傳感器、執行器等設備的輸入信號，整理后發送至主控系統。

3. 電氣隔離與保護：提供通道電隔離，避免現場電干擾傳入系統。

4. 系統冗余支持：部分線路支持冗余切換，提升控制系統容錯能力。

5. 接線終端平臺：作為中間接線板，方便輸入輸出線纜整理和管理。

結構與接口特性

• 多組插接端子排，便于大規模信號接入

• 印制電路板內設保護元件（如TVS、保險絲）

• 有清晰通道標識，用于快速定位信號

• 與 TCQA、TCCB、TCCS、TCEA 等板卡搭配使用

典型應用場景

1. 燃?xì)廨啓C(jī)控制系統

   • 管理點火、燃料、速度、排氣等傳感器/執行器接口

2. 蒸汽輪機系統

   • 控制蒸汽壓力、冷凝水位、溫控閥等設備

3. 發電廠自動化系統

   • 處理大量分散的現場開關量和模擬量信號

4. 重工業自動化（如鋼廠、石化）

   • 管理電機控制、泵閥執行、報警系統等信號通道

5. 大型DCS/PLC系統

   • 用作I/O通道的接入樞紐，集中布線

產品優勢

• 工業級抗干擾能力強

• 模塊化、可更換結構，易于維護

• 長壽命設計，適合高強度運行環境

• 完全兼容 GE Mark V 系列主控系統

英文資料：

DS200FCGDH1A is a Field Control General Distribution board in the GE Mark V system. Its main function is to connect the signal path between the main control system and field devices, and to organize, isolate, distribute, and protect input and output channels, ensuring the safe operation of the control system and the clarity of signal transmission.

It does not directly participate in logical processing, but exists as a signal distribution center and is a crucial "hub board" in the entire I/O system.

major function

Signal channel management: Receive control signals from the main control board and allocate them to the corresponding output channels.

Signal aggregation: Collect input signals from on-site sensors, actuators, and other devices, organize them, and send them to the main control system.

Electrical isolation and protection: Provide channel electrical isolation to prevent on-site electrical interference from entering the system.

System redundancy support: Some lines support redundant switching to enhance the fault tolerance of the control system.

Wiring terminal platform: As an intermediate wiring board, it facilitates the organization and management of input and output cables.

Structure and Interface Characteristics

Multiple sets of plug-in terminal blocks facilitate large-scale signal access

Protective components (such as TVS and fuses) are installed inside the printed circuit board

Clear channel identification for quick signal positioning

Used in conjunction with TCQA, TCCB, TCCS, TCEA and other boards

Typical application scenarios

gas turbine control system

Manage sensor/actuator interfaces for ignition, fuel, speed, exhaust, etc

Steam turbine system

Control steam pressure, condensate level, temperature control valve and other equipment

Power plant automation system

Handling a large number of scattered on-site switch and analog signals

Heavy industry automation (such as steel mills, petrochemicals)

Manage signal channels such as motor control, pump valve execution, alarm system, etc

Large scale DCS/PLC system

Used as an access hub for I/O channels, centralized cabling

Product advantages

Strong anti-interference ability of industrial grade

Modular, replaceable structure, easy to maintain

Long life design, suitable for high-intensity operating environments

Fully compatible with GE Mark V series main control system

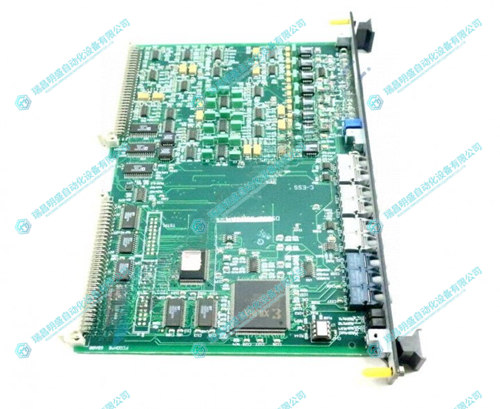

2.產      品      展      示
