AMAT Applied Materials AS01391-23接口模塊

1.產 品 資 料 介 紹：

AMAT Applied Materials AS01391-23接口模塊 英文資料：

1、 Multi scenario interface compatibility: building a bridge for semiconductor device interconnection

As the "connection hub" for various functional modules of semiconductor equipment, the AS01391-23 interface module covers all types of interfaces as its core, breaking down communication barriers between different devices and modules and achieving seamless flow of data and signals

Industrial grade communication interface full coverage

Mainstream communication interfaces commonly used in integrated semiconductor equipment to meet multi-dimensional interconnection requirements:

High speed network interface: 2 Gigabit Ethernet ports (supporting Profinet and EtherNet/IP protocols), with a transmission rate of 1000Mbps and a data transmission delay of ≤ 5ms, capable of high-speed data exchange between the equipment main controller and the factory MES system, supporting real-time uploading of process parameters and remote control command issuance;

Fieldbus interface: 3 RS485 serial ports (communication rate adjustable from 0-2Mbps), 1 CANopen bus interface, adapted to the connection requirements of sensor clusters (such as temperature and pressure sensors) and actuators (servo motor drivers, solenoid valves), supporting multi node cascading (RS485 can connect up to 32 nodes), meeting the requirements of distributed control scenarios for devices;

Special functional interfaces: 1 USB 2.0 interface (for local parameter configuration and log export), 1 fiber optic interface (transmission distance ≤ 5km, strong anti-interference ability), suitable for long-distance equipment layout and local operation and maintenance in clean workshops, balancing data transmission stability and operational convenience.

Signal conversion and adaptation capability

Equipped with bidirectional conversion between analog and digital signals, with 6 analog input/output interfaces (supporting 4-20mA current signals and 0-10V voltage signals) and 12 digital input/output interfaces (compatible with TTL/CMOS levels), it can directly interface with different types of sensors and actuators:

Capable of amplifying and converting mV level weak analog signals output by temperature, pressure, and other sensors into digital signals, which are transmitted to the controller with a signal conversion accuracy of ± 0.1% F.S;

The digital control instructions issued by the controller can be converted into analog signals to drive actuators such as valves and motors without the need for additional signal conversion modules, simplifying equipment wiring and integration processes and reducing signal transmission losses.

Protocol adaptation and flexible configuration

Built in intelligent protocol recognition chip, supporting automatic matching of communication protocols for access devices (such as Profinet, Modbus RTU/TCP), without the need for manual configuration of protocol parameters. Protocol negotiation can be automatically completed when connecting new devices, with an adaptation cycle of ≤ 30 minutes; For third-party devices with non-standard protocols (such as special sensors), support customizing protocol frame formats (including data bits, parity bits, and stop bits) through onboard configuration software to achieve compatible communication with the device's main system, greatly improving device integration flexibility.

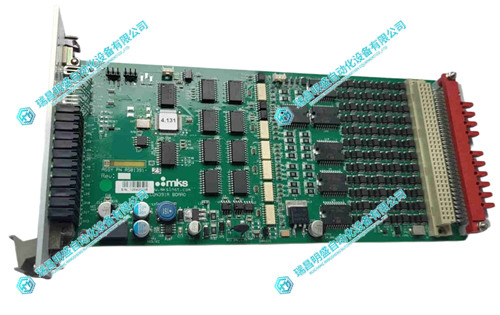

AMAT Applied Materials AS01391-23接口模塊 產品展示
