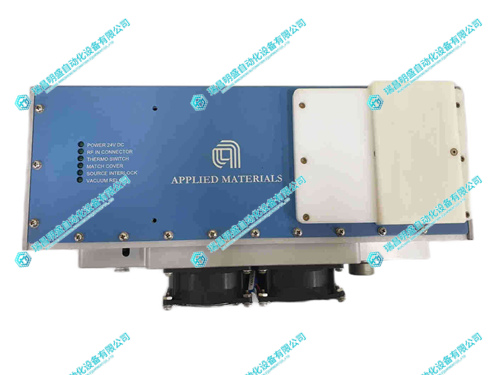

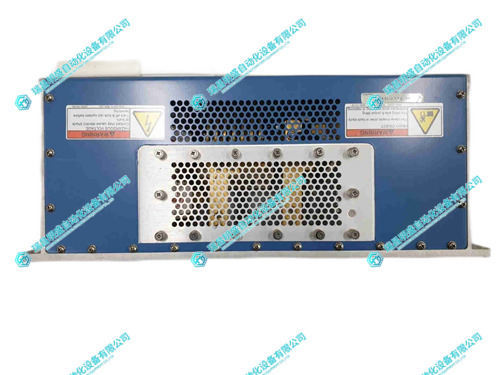

AMAT Applied Materials 0010-26029電源匹配組件
1.產 品 資 料 介 紹:
- 寬幅電壓調節范圍:支持輸入電壓 100-240V AC(50/60Hz)寬幅適配,可兼容全球不同地區的電網電壓標準,無需額外配置電壓轉換器;輸出電壓可根據設備模塊需求精準調節,涵蓋 3.3V DC、5V DC、12V DC、24V DC 等常用工業級電壓檔位,輸出電壓精度達 ±0.5%,確保半導體設備敏感元器件(如傳感器、控制芯片)獲得穩定供電,避免因電壓波動導致的設備性能偏差。
- 多通道獨立供電設計:具備 4-8 路獨立輸出通道(具體依型號配置),每路通道可單獨設定輸出電流(最大單路電流支持 10A),且通道間隔離度≥2500V AC,能同時為設備的控制系統(如 PLC)、執行機構(如電磁閥)、監測模塊(如溫度傳感器)等不同負載供電,避免單一模塊故障影響其他通道供電,提升設備整體供電可靠性。
- 動態負載響應能力:采用高頻開關電源架構,負載調整率≤0.2%,當半導體設備負載在 0-100% 范圍內動態變化時(如機械臂啟停、加熱腔功率調節),輸出電壓波動可控制在 50mV 以內;同時具備快速響應能力(響應時間≤50μs),能瞬間補償負載突變帶來的電壓跌落,保障設備核心模塊(如工藝控制單元)供電不中斷,避免制程中斷導致的晶圓報廢。
- 多重電氣安全保護:集成過電壓、過電流、過載、短路、過溫五重保護功能。當輸出電壓超過額定值 120% 時,過電壓保護模塊立即切斷輸出;輸出電流超過額定值 150% 或負載短路時,短路保護快速觸發(響應時間≤10μs),防止損壞電源組件與下游設備;同時內置溫度監測傳感器,當組件內部溫度超過 85℃時,自動啟動過熱保護,避免元器件燒毀,保障設備運行安全。
- 絕緣與接地保護:輸入與輸出之間絕緣電阻≥100MΩ,絕緣強度達 3000V AC/1min,有效防止漏電事故發生;配備獨立接地端子,接地電阻≤1Ω,可快速釋放靜電與漏電流,避免靜電擊穿半導體設備中的精密芯片(如 FPGA、MCU),同時符合 SEMI S2 半導體設備安全標準,滿足潔凈車間電氣安全規范。
AMAT Applied Materials 0010-26029電源匹配組件 英文資料:
1、 High precision power supply adaptation: meets the multi module power supply needs of semiconductor equipment
As the "power regulation center" of semiconductor equipment, this power matching component has precise voltage and current adaptation capabilities as its core, meeting the differentiated power supply needs of different functional modules of the equipment:
Wide range voltage regulation: Supports wide range adaptation of input voltage 100-240V AC (50/60Hz), compatible with grid voltage standards in different regions around the world, without the need for additional voltage converters; The output voltage can be precisely adjusted according to the requirements of the device module, covering commonly used industrial grade voltage levels such as 3.3V DC, 5V DC, 12V DC, 24V DC, etc. The output voltage accuracy reaches ± 0.5%, ensuring stable power supply for sensitive components of semiconductor devices (such as sensors and control chips) and avoiding equipment performance deviations caused by voltage fluctuations.
Multi channel independent power supply design: it has 4-8 independent output channels (configured according to the model), each channel can set the output current independently (the maximum single channel current supports 10A), and the isolation between channels is ≥ 2500V AC, which can simultaneously supply power to different loads such as the equipment control system (such as PLC), actuator (such as solenoid valve), monitoring module (such as temperature sensor), so as to avoid the failure of a single module affecting the power supply of other channels, and improve the overall power supply reliability of the equipment.
Dynamic load response capability: Adopting a high-frequency switching power supply architecture, the load adjustment rate is ≤ 0.2%. When the load of the semiconductor equipment dynamically changes within the range of 0-100% (such as the start stop of the robotic arm and the power adjustment of the heating chamber), the output voltage fluctuation can be controlled within 50mV; Simultaneously possessing fast response capability (response time ≤ 50 μ s), it can instantly compensate for voltage drops caused by sudden load changes, ensuring uninterrupted power supply to equipment core modules (such as process control units) and avoiding wafer scrap caused by process interruptions.
2、 Comprehensive security protection: ensuring the power supply safety of semiconductor equipment
In response to the high-value and high-risk operating characteristics of semiconductor equipment, the power matching component has undergone multiple optimizations in safety protection to reduce the risk of power supply failures
Multiple electrical safety protection: integrated with five protection functions including overvoltage, overcurrent, overload, short circuit, and over temperature. When the output voltage exceeds 120% of the rated value, the overvoltage protection module immediately cuts off the output; When the output current exceeds 150% of the rated value or the load is short circuited, the short-circuit protection is triggered quickly (response time ≤ 10 μ s) to prevent damage to the power components and downstream equipment; At the same time, it is equipped with a temperature monitoring sensor, which automatically activates overheating protection when the internal temperature of the component exceeds 85 ℃, avoiding component burnout and ensuring the safe operation of the equipment.
Insulation and grounding protection: The insulation resistance between input and output is ≥ 100M Ω, and the insulation strength reaches 3000V AC/1min, effectively preventing leakage accidents; Equipped with an independent grounding terminal with a grounding resistance of ≤ 1 Ω, it can quickly release static electricity and leakage current, avoiding electrostatic breakdown of precision chips (such as FPGA and MCU) in semiconductor equipment
