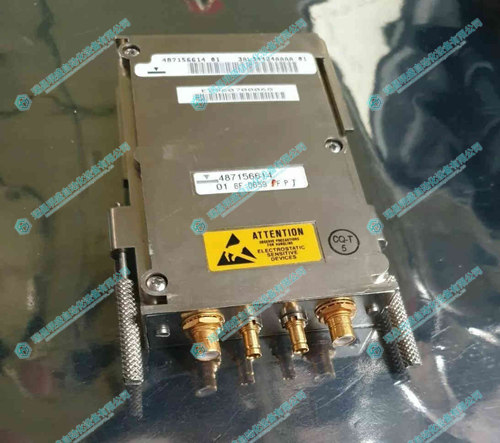

ALCATEL LUCENT  3AL34424AAAA繼電器模塊

1.產 品 資 料 介 紹：

中文資料：

ALCATEL LUCENT 3AL34424AAAA
繼電器模塊（Relay Module）

產品概述：

3AL34424AAAA 是 Alcatel-Lucent 系統中用于電信設備狀態控制和信號切換的繼電器模塊。它通常作為系統的執行組件，依靠控制邏輯接收信號指令，通過繼電器的通斷動作實現電路的轉換、報警響應、或遠程控制功能。

該模塊可被部署于傳輸設備、電源系統、接入節點或控制機架中，是保障通信系統穩定運行的重要部分。

核心功能特點：

• ? 多通道繼電器控制：模塊具備多個獨立繼電器，可分別控制不同設備或電路。

• ? 干接點輸入輸出支持：兼容標準告警信號格式，適用于通信設備告警處理。

• ? 高絕緣可靠性：內部繼電器具備良好電氣隔離，確保強弱電分離運行安全。

• ? 遠程可控：可由主控板或監控系統遠程指令觸發，實現無人值守操作。

• ? 告警與保護功能：在異常情況下自動切換或關閉電路，保護設備安全。

典型應用領域：

1. 通信設備告警系統

   • 接收來自主控、電源、風扇等單元的異常信號，并通過繼電器觸發物理指示或上傳告警信號。

2. 電源切換控制

   • 管理主備電源或不同電源路由之間的切換動作，確保通信設備不斷電運行。

3. 網絡設備遠程重啟

   • 在設備無響應或故障時，通過控制繼電器斷電重啟相關單元。

4. 門禁與環境監控聯動

   • 與機房門禁、煙霧報警、溫濕度監控系統協同工作，執行斷電或發出報警。

5. 工業控制與自動化系統

   • 在更廣泛的工業領域，也可用于實現信號聯鎖、動作反饋與保護切換功能。

英文資料：

ALCATEL LUCENT 3AL34424AAAA

Relay Module

Product Overview:

3AL34424AAA is a relay module used in Alcatel Lucent systems for status control and signal switching of telecommunications equipment. It is usually used as the executing component of the system, relying on control logic to receive signal instructions, and realizing circuit conversion, alarm response, or remote control functions through the on-off action of relays.

This module can be deployed in transmission equipment, power systems, access nodes, or control racks, and is an important part of ensuring the stable operation of communication systems.

Core functional features:

?  Multi channel relay control: The module has multiple independent relays that can control different devices or circuits separately.

?  Dry contact input/output support: compatible with standard alarm signal formats, suitable for communication equipment alarm processing.

?  High insulation reliability: The internal relay has good electrical isolation to ensure safe operation of strong and weak current separation.

?  Remote controllable: It can be triggered by remote instructions from the main control board or monitoring system to achieve unmanned operation.

?  Alarm and protection function: Automatically switch or turn off the circuit in abnormal situations to protect equipment safety.

Typical application areas:

Communication equipment alarm system

Receive abnormal signals from the main control, power supply, fan and other units, and trigger physical indications or upload alarm signals through relays.

Power switching control

Manage the switching actions between primary and backup power sources or different power routes to ensure uninterrupted operation of communication devices.

Remote restart of network devices

When the device is unresponsive or malfunctioning, control the relay to power off and restart the relevant units.

Linkage between access control and environmental monitoring

Collaborate with computer room access control, smoke alarm, and temperature and humidity monitoring systems to execute power outages or issue alarms.

Industrial Control and Automation Systems

In a wider range of industrial fields, it can also be used to achieve signal interlocking, action feedback, and protection switching functions.

2.產      品      展      示
