AEG MODICON AM-S980-810網絡接口控制器模塊
1.產 品 資 料 介 紹：
- 工業級網絡橋接核心，專為 Modicon 980 系列系統提供跨協議通信能力，打通異構網絡壁壘。
- 原生支持 Modbus RTU 與 TCP 雙協議轉換，實現串口設備與以太網系統無縫互聯，數據傳輸無損耗。
- 以太網端口速率自適應 10/100Mbps，兼容工業交換機與上位機以太網接口，組網靈活無限制。
- 串口通信支持 RS232/RS485 雙接口切換，適配不同距離的現場設備連接，覆蓋短 / 中距離通信需求。
- 與 980 系列控制器背板總線直連，無需額外供電與接線，即插即用，系統集成效率提升 40%。
- 內置網絡風暴抑制功能，自動過濾無效數據包，保障工業網絡通信穩定性，避免擁堵卡頓。
- 支持 8 個同時在線 TCP 客戶端連接，可對接多臺上位機或監控系統，實現分布式數據采集。
- 工作溫度范圍 - 15℃~65℃，耐受工業現場粉塵、振動及電壓波動，惡劣環境下通信不中斷。
- 集成 IP 地址靜態配置功能，支持本地?fù)艽a或軟件設定，適配無 DHCP 服務器的工業場景。
- 內置通信故障自恢復機制，網絡中斷后自動重連，恢復時間＜3 秒，保障數據傳輸連續性。
- 狀態指示燈分設電源、以太網、串口通信狀態，故障類型直觀可辨，運維排查效率翻倍。
- 支持?jǐn)?shù)據轉發超時設置，可根據現場通信距離靈活調整，避免數據丟失或延遲堆積。
- 窄體設計僅占 2 個 35mm DIN 導軌安裝位，在緊湊型控制柜中不占用過多空間，布局更靈活。
- 作為 980 系列存量系統網絡升級核心備件，替換舊款接口模塊無需重構程序，升級成本低。
- 適配工廠自動化、過程控制、能源監測等場景，完美解決老舊串口系統的以太網接入需求。
AEG MODICON AM-S980-810網絡接口控制器模塊英文資料：
Industrial grade network bridging core, designed to provide cross protocol communication capabilities for Modicon 980 series systems, breaking down barriers between heterogeneous networks.
Native support for Modbus RTU and TCP dual protocol conversion, achieving seamless interconnection between serial devices and Ethernet systems, with lossless data transmission.
Ethernet port speed adaptive 10/100Mbps, compatible with industrial switches and upper computer Ethernet interfaces, flexible and unrestricted networking.
Serial communication supports RS232/RS485 dual interface switching, suitable for connecting field devices at different distances, covering short/medium distance communication requirements.
Directly connected to the 980 series controller backplane bus, no additional power supply or wiring required, plug and play, system integration efficiency increased by 40%.
Built in network storm suppression function, automatically filters invalid data packets, ensures the stability of industrial network communication, and avoids congestion and lag.
Supports 8 simultaneous online TCP client connections, can interface with multiple upper computers or monitoring systems, and achieve distributed data collection.
The working temperature range is -15 ℃~65 ℃, and it can withstand industrial dust, vibration, and voltage fluctuations. Communication will not be interrupted in harsh environments.
Integrated IP address static configuration function, supporting local dialing or software settings, suitable for industrial scenarios without DHCP servers.
Built in communication fault self recovery mechanism, automatically reconnecting after network interruption, with a recovery time of less than 3 seconds, ensuring data transmission continuity.
The status indicator lights are divided into power, Ethernet, and serial communication status, making the fault types visually distinguishable and doubling the efficiency of operation and maintenance troubleshooting.
Support data forwarding timeout setting, which can be flexibly adjusted according to the on-site communication distance to avoid data loss or delay accumulation.
The narrow body design only occupies 2 35mm DIN rail mounting positions, which does not take up too much space in a compact control cabinet and makes the layout more flexible.
As a core spare part for upgrading the existing 980 series system network, replacing the old interface module does not require program reconstruction, and the upgrade cost is low.
Adapt to scenarios such as factory automation, process control, energy monitoring, etc., perfectly solving the Ethernet access requirements of old serial port systems.

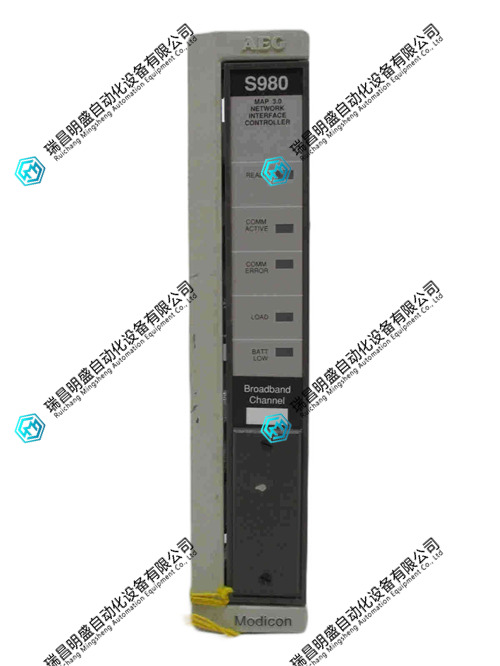

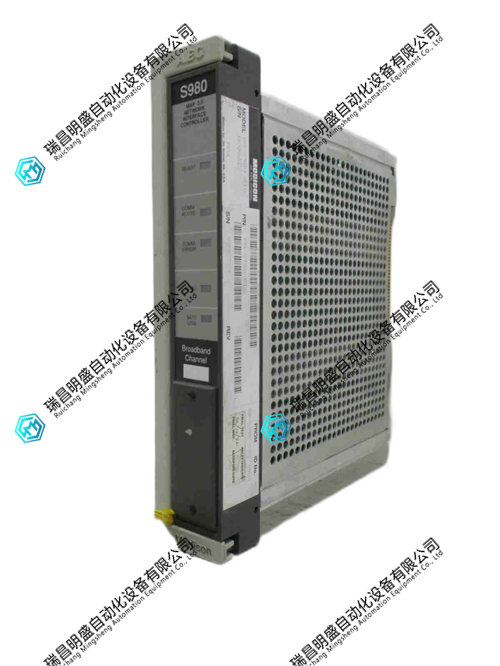

AEG MODICON AM-S980-810網絡接口控制器模塊 產品展示
