ABB SA801F 電源模塊 是一款專為工業自動化應用設計的緊湊型多功能電源模塊。
ABB SA801F 電源模塊 詳情介紹：
SA801F電源模塊是一款專為工業自動化應用設計的緊湊型多功能電源模塊。以下是該電源模塊的主要產品特點：
- 寬輸入電源范圍：SA801F電源模塊具有115~230VAC的寬輸入電源范圍，這使得它能夠在不同的電壓環境下穩定工作，滿足了工業自動化應用中的多樣化需求。
- 高效的輸出能力：模塊提供了3.3VDC+/—3% 5A和5.0VDC+/—3% 5A的輸出，總輸出功率為26.5W，確保為連接的設備提供穩定且高效的電力供應。
- 多重保護功能：SA801F電源模塊具備短路及過載保護功能，可以在異常情況下保護電源和連接的設備，提高系統的可靠性。此外，當電源故障時，該模塊還可以保持至少20ms的輸出，為設備提供足夠的緩沖時間。
- 狀態監控與故障指示：電源模塊提供了輸入及輸出電壓監控功能，并能提供電源故障信號。這使得用戶可以實時了解電源的工作狀態，及時發現并處理潛在問題。
- 易于集成：SA801F電源模塊只能插入到AC800F控制器最左邊的P槽，這樣的設計簡化了安裝和配置過程，使得模塊能夠輕松集成到現有的工業自動化系統中。
- 附加功能豐富：除了基本的電源供應功能外，該模塊還設置了AC800F控制器的基本操作按鈕及控制運行狀態指示燈顯示，方便用戶進行日常操作和維護。此外，它還配備了診測接口（帶EMC濾波），用于診測數據的EEPROM，以及AC800F CPU主板的狀態檢測及操作元件。
綜上所述，SA801F電源模塊以其寬輸入范圍、高效輸出、多重保護、狀態監控、易于集成以及豐富的附加功能等特點，為工業自動化應用提供了穩定可靠的電源解決方案。

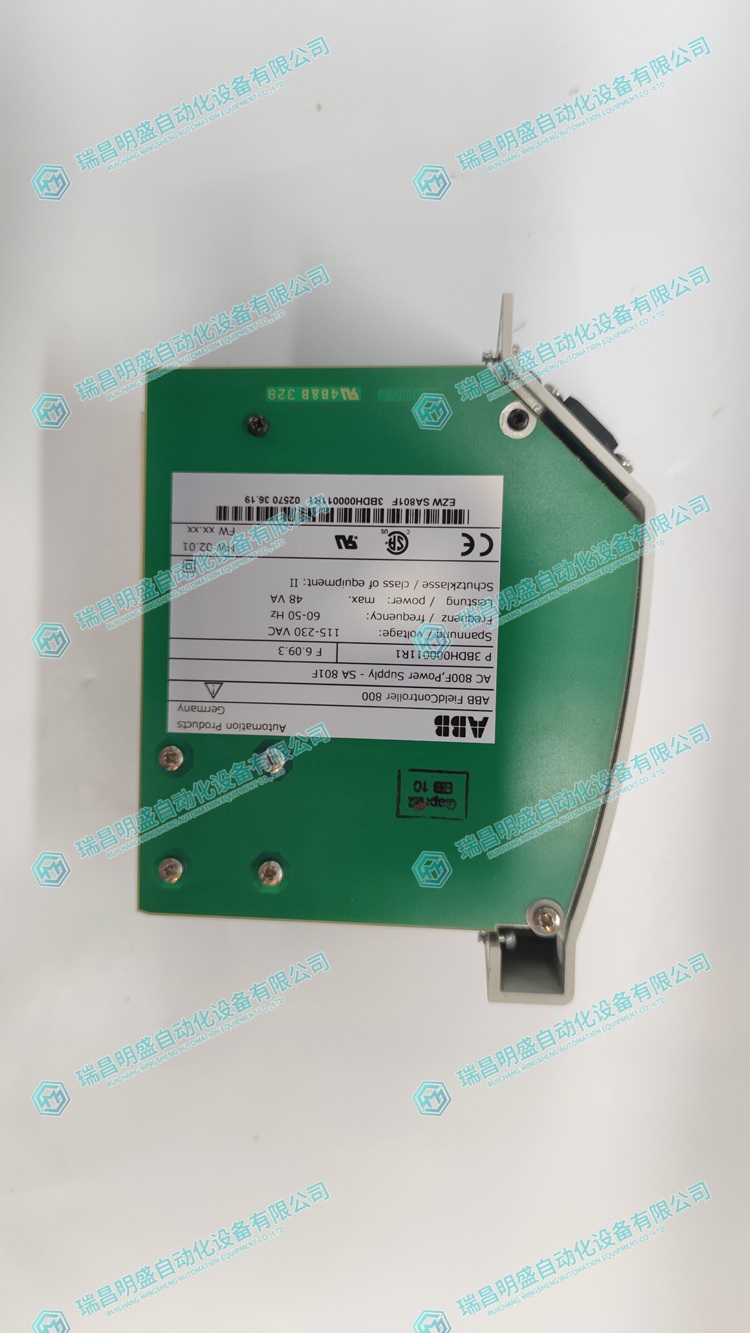

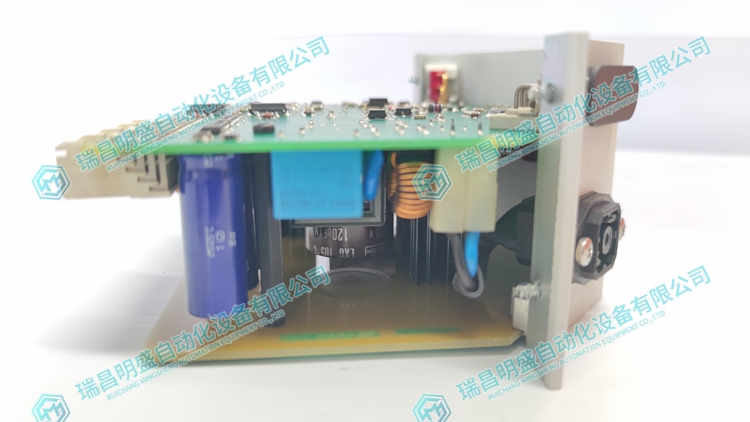

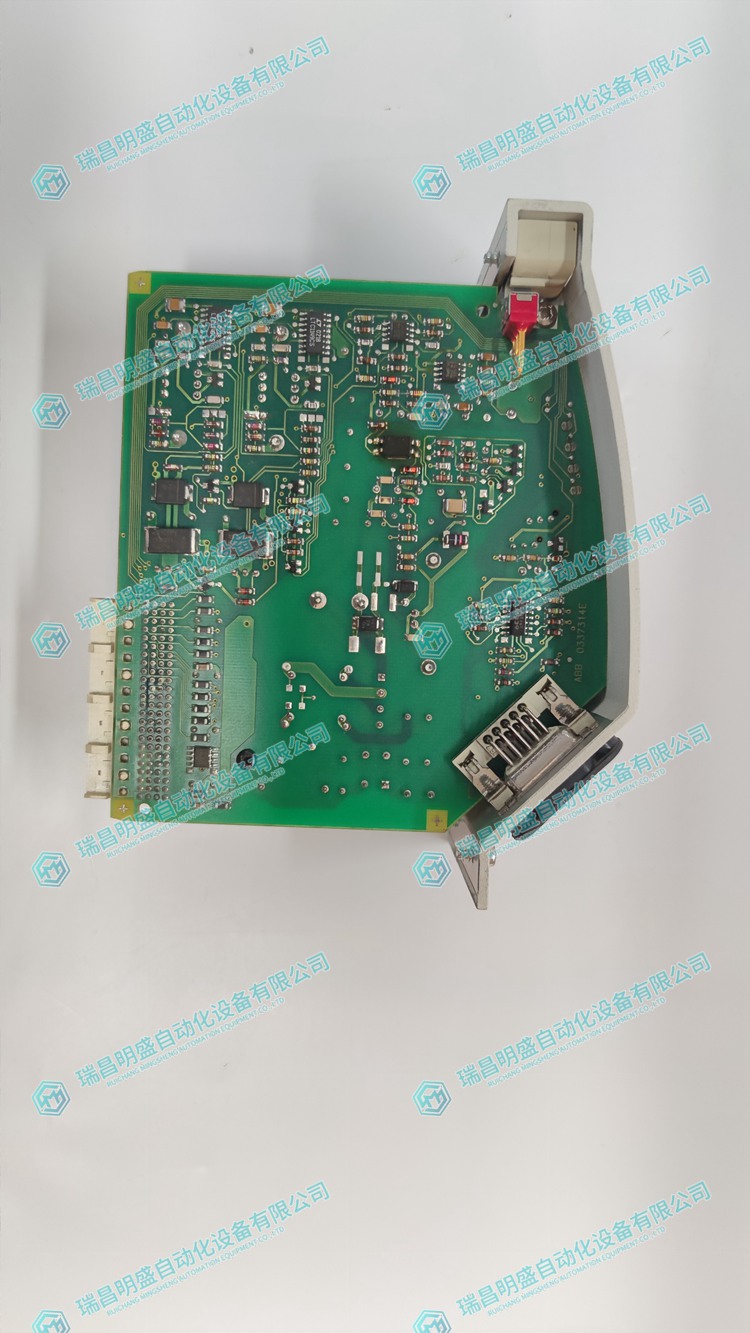

ABB SA801F 電源模塊 實物圖片：
ABB SA801F 電源模塊 實物視頻
ABB SA801F power module details introduction:
The SA801F power module is a compact multifunctional power module designed specifically for industrial automation applications. The following are the main product features of this power module:
Wide input power range: The SA801F power module has a wide input power range of 115~230VAC, which enables it to work stably in different voltage environments and meet the diverse needs of industrial automation applications.
Efficient output capability: The module provides 3.3VDC+/-3% 5A and 5.0VDC+/-3% 5A outputs, with a total output power of 26.5W, ensuring stable and efficient power supply for connected devices.
Multiple protection functions: The SA801F power module has short-circuit and overload protection functions, which can protect the power supply and connected equipment in abnormal situations and improve system reliability. In addition, when the power supply fails, the module can maintain an output of at least 20ms, providing sufficient buffering time for the device.
Status monitoring and fault indication: The power module provides input and output voltage monitoring functions, and can provide power fault signals. This allows users to have real-time understanding of the working status of the power supply, and to promptly identify and address potential issues.
Easy to integrate: The SA801F power module can only be inserted into the leftmost P slot of the AC800F controller. This design simplifies the installation and configuration process, allowing the module to be easily integrated into existing industrial automation systems.
Rich additional features: In addition to the basic power supply function, this module also features the basic operation buttons and control operation status indicator lights of the AC800F controller, making it convenient for users to perform daily operations and maintenance. In addition, it is equipped with a diagnostic interface (with EMC filtering), an EEPROM for diagnostic data, and status detection and operation components for the AC800F CPU motherboard.
In summary, the SA801F power module provides a stable and reliable power solution for industrial automation applications with its wide input range, efficient output, multiple protections, status monitoring, easy integration, and rich additional functions.
