NI PCIE-1427 圖像采集卡 是一種高性能的采集設備，專門設計用于與任何基本配置的Camera link相機配合使用。它具備4個具有ISO/TTL兼容性的外部觸發器，使得相機在需要時可以精確地進行觸發操作。此外，PCIe-1427還有一個正交編碼器，為圖像采集提供了更高的精度和準確性。
NI PCIE-1427 圖像采集卡 詳情介紹：
NI PCIe-1427圖像采集卡是一種高性能的采集設備，專門設計用于與任何基本配置的Camera link相機配合使用。它具備4個具有ISO/TTL兼容性的外部觸發器，使得相機在需要時可以精確地進行觸發操作。此外，PCIe-1427還有一個正交編碼器，為圖像采集提供了更高的精度和準確性。
該圖像采集卡的一個重要特點是配備了帶NI Camera Link擴展板的I/O，使得它能夠與其他設備或系統無縫連接，進行數據交換和共享。同時，它還能夠與CAN、運動和數據采集進行RTSI總線同步，為實時圖像采集和處理提供了強大的支持。
PCIe-1427圖像采集卡的帶寬范圍高達225 MB/s，這意味著它能夠快速且有效地處理大量的圖像數據，滿足各種高速圖像采集的需求。它還具有板載數字I/O，包括用于工業通信的隔離和用于通過視覺采集驅動軟件匹配運動的編碼器輸入，進一步提升了其在工業和科研領域的應用價值。
在電源要求方面，NI PCIe-1427圖像采集卡在+3.3 V時需要1.5 A的電流，而在+12 V時則需要250 mA的電流。它使用包含NI-MAQ驅動程序軟件的NI Vision Acquisition軟件運行，并與LabVIEW、LabWindows等軟件平臺兼容，這使得用戶能夠輕松地進行圖像采集、處理和分析。
PCIe-1427圖像采集卡的應用領域非常廣泛。在醫學影像領域，它可以用于X射線、超聲波、核磁共振等醫學設備的圖像采集和處理，幫助醫生更準確地診斷病情。在工業檢測中，它可以用于機器視覺系統，對產品進行缺陷檢測、計量和分類，提高生產效率和質量。此外，它還可以應用于航空航天、軍事等領域，為這些高科技領域提供強大的圖像采集和處理支持。
與其他圖像采集設備相比，PCIe-1427圖像采集卡具有許多顯著的優勢。首先，PCIe總線的帶寬遠遠超過其他接口，可以滿足高速圖像采集和處理的需求。其次，該圖像采集卡具有更高的精度和更低的噪聲，能夠提供更清晰、更準確的圖像數據。此外，它還具有更好的穩定性和可靠性，可以長時間穩定運行，減少故障和停機時間。
總的來說，NI PCIe-1427圖像采集卡是一款功能強大、性能卓越的圖像采集設備，適用于各種需要高速、高精度圖像采集和處理的場合。無論是醫學影像、工業檢測還是航空航天等領域，它都能發揮出出色的性能，為用戶提供高質量的圖像數據支持。

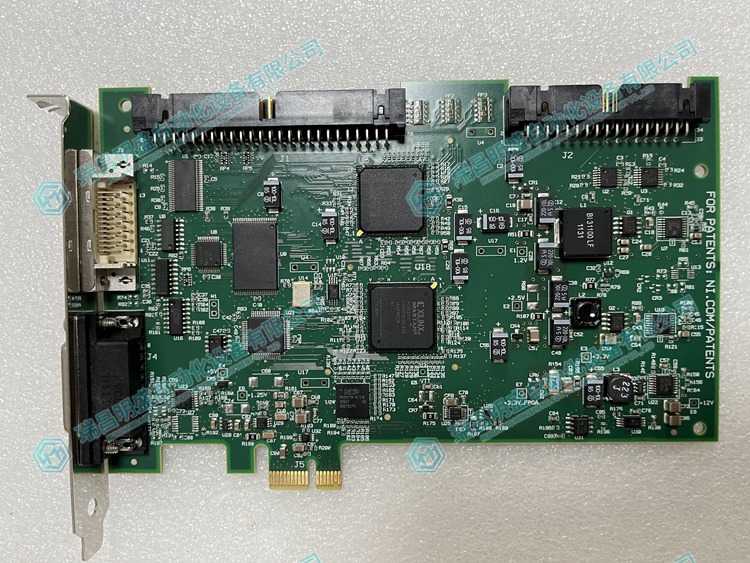

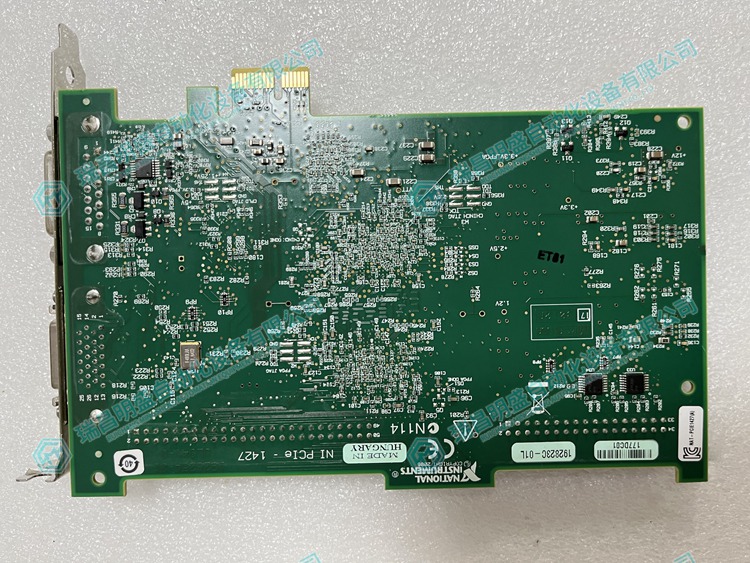

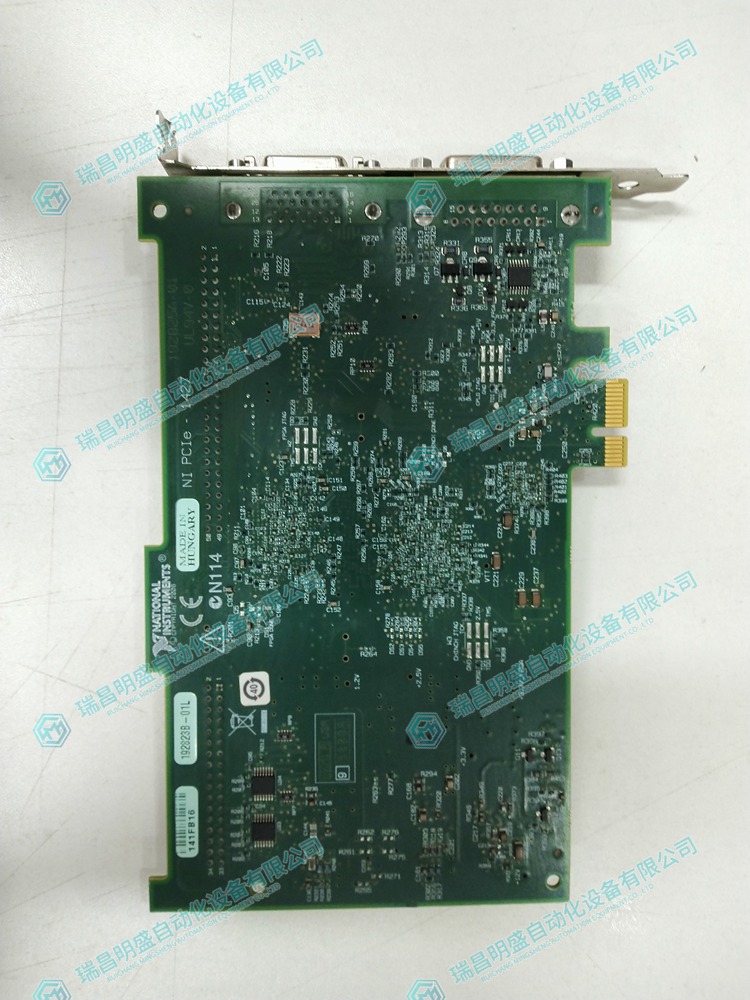

NI PCIE-1427 圖像采集卡 實物圖片：
NI PCIE-1427 圖像采集卡 產品視頻：
NI PCIE-1427 Image Acquisition Card Details Introduction:
The NI PCIe-1427 image capture card is a high-performance acquisition device designed specifically for use with any basic configuration of Camera link cameras. It has four external triggers with ISO/TTL compatibility, allowing the camera to perform precise triggering operations when needed. In addition, PCIe-1427 also has an orthogonal encoder, providing higher accuracy and precision for image acquisition.
An important feature of this image capture card is the equipped I/O with NI Camera Link expansion board, allowing it to seamlessly connect with other devices or systems for data exchange and sharing. At the same time, it can also synchronize with CAN, motion, and data acquisition via RTSI bus, providing strong support for real-time image acquisition and processing.
The bandwidth range of the PCIe-1427 image acquisition card is as high as 225 MB/s, which means it can quickly and effectively process large amounts of image data, meeting various high-speed image acquisition needs. It also has onboard digital I/O, including isolation for industrial communication and encoder input for matching motion through visual acquisition driving software, further enhancing its application value in industrial and scientific fields.
In terms of power requirements, the NI PCIe-1427 image acquisition card requires a current of 1.5 A at+3.3 V and 250 mA at+12 V. It runs using NI Vision Acquisition software, which includes NI-MAQ driver software, and is compatible with software platforms such as LabVIEW and LabWindows, allowing users to easily perform image acquisition, processing, and analysis.
The application field of PCIe-1427 image capture card is very extensive. In the field of medical imaging, it can be used for image acquisition and processing of medical equipment such as X-rays, ultrasound, and magnetic resonance imaging, helping doctors diagnose conditions more accurately. In industrial inspection, it can be used in machine vision systems to detect, measure, and classify defects in products, improving production efficiency and quality. In addition, it can also be applied in aerospace, military and other fields, providing strong image acquisition and processing support for these high-tech fields.
Compared with other image acquisition devices, the PCIe-1427 image acquisition card has many significant advantages. Firstly, the bandwidth of the PCIe bus far exceeds that of other interfaces, which can meet the needs of high-speed image acquisition and processing. Secondly, the image acquisition card has higher accuracy and lower noise, which can provide clearer and more accurate image data. In addition, it also has better stability and reliability, which can operate stably for a long time, reduce faults and downtime.
Overall, the NI PCIe-1427 image acquisition card is a powerful and high-performance image acquisition device suitable for various situations that require high-speed and high-precision image acquisition and processing. It can perform excellently in fields such as medical imaging, industrial testing, and aerospace, providing users with high-quality image data support.
