NI  NI9853  輸出模塊    是一款高速控制器局域網（CAN）接口模塊，專門用于結合NI-RIO驅動在CompactRIO上開發應用程序。該模塊適用于使用LabVIEW FPGA模塊編程基于FPGA的底層控制和觸發應用程序，并是對CAN幀進行字節級操作的理想驅動。

NI  NI9853  輸出模塊     詳情介紹：

1. NI-9853是一款高速控制器局域網（CAN）接口模塊，專門用于結合NI-RIO驅動在CompactRIO上開發應用程序。該模塊適用于使用LabVIEW FPGA模塊編程基于FPGA的底層控制和觸發應用程序，并是對CAN幀進行字節級操作的理想驅動。

2. NI-9853模塊可以插入任何CompactRIO機箱中，為汽車及工業應用提供多樣化的功能。這些功能包括監控車內的CAN總線、從CAN設備（如電子控制單元和制動器）中讀取和寫入數值，以及與工業設備（如運動控制驅動器和馬達）進行通信。此外，工程師可以利用CompactRIO的靈活性和性能優勢，將NI-9853 CAN模塊與任何提供硬件CAN的CompactRIO I/O模塊進行同步化，數據采集同步化分辨率可高達25ns。

3. NI-9853 CAN模塊還提供11位及29位的仲裁識別號碼（arbitration ID）支持，這使其能夠在J1939網絡上通信。同時，工程師可以使用NI-CAN驅動程序軟件，將Vector數據庫文件結合至其應用程序中。

4. 需要注意的是，NI-9853模塊僅與CompactRIO系統兼容。因此，在選擇和使用該模塊時，需要確保它與你的系統配置相匹配。

5. 綜上所述，NI-9853是一款功能強大且高度專業化的輸出模塊，特別適用于需要高速CAN接口和精確控制的CompactRIO系統。

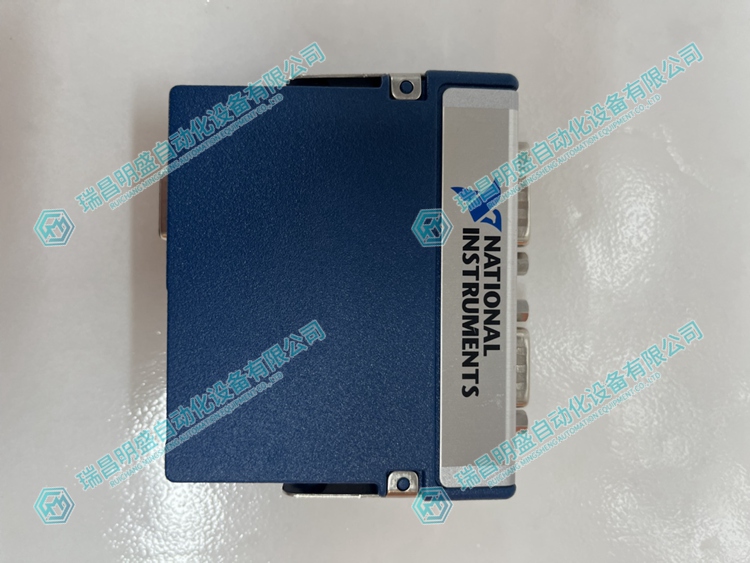

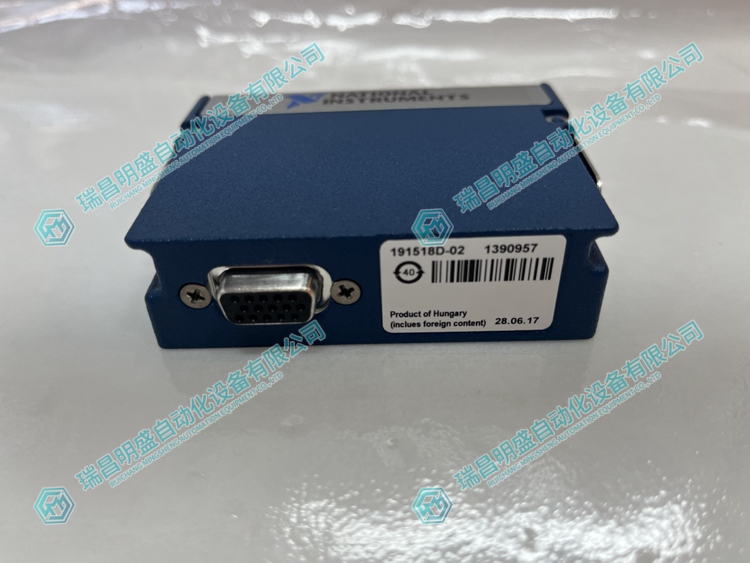

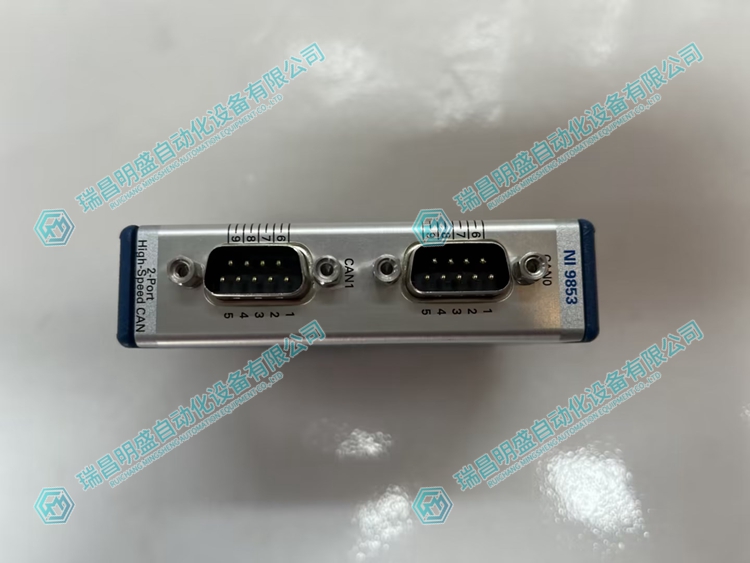

NI  NI9853  輸出模塊     實物圖片：

NI  NI9853  輸出模塊     產品視頻：

Detailed introduction of NI NI9853 output module:

NI-9853 is a high-speed Controller Area Network (CAN) interface module specifically designed for developing applications on CompactRIO in conjunction with NI-RIO drivers. This module is suitable for programming FPGA based low-level control and triggering applications using LabVIEW FPGA modules, and is an ideal driver for byte level operations on CAN frames.

The NI-9853 module can be inserted into any CompactRIO chassis, providing diverse functions for automotive and industrial applications. These functions include monitoring the CAN bus inside the vehicle, reading and writing values from CAN devices (such as electronic control units and brakes), and communicating with industrial devices (such as motion control drivers and motors). In addition, engineers can leverage the flexibility and performance advantages of CompactRIO to synchronize the NI-9853 CAN module with any CompactRIO I/O module that provides hardware CAN, with a data acquisition synchronization resolution of up to 25ns.

The NI-9853 CAN module also provides support for 11 and 29 bit arbitration identification numbers, allowing it to communicate on the J1939 network. Meanwhile, engineers can use NI-CAN driver software to integrate Vector database files into their applications.

It should be noted that the NI-9853 module is only compatible with the CompactRIO system. Therefore, when selecting and using this module, it is necessary to ensure that it matches your system configuration.

In summary, NI-9853 is a powerful and highly specialized output module, particularly suitable for CompactRIO systems that require high-speed CAN interfaces and precise control.
