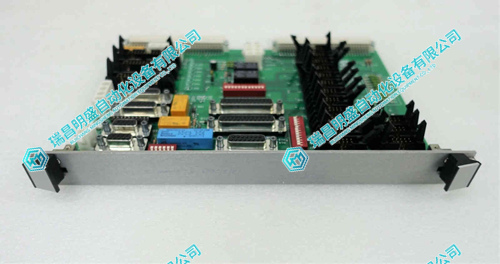

AMAT Applied Materials 0100-00423輸入輸出模塊
1.產 品 資 料 介 紹：
核心規格
功能與優勢
安裝與維護要點
AMAT Applied Materials 0100-00423輸入輸出模塊 英文資料：
AMAT 0100-00423 is a multifunctional input/output module designed by Applied Materials for semiconductor equipment control systems. It integrates digital and analog channels, supports high-speed data acquisition and precise control, and is widely used in platforms such as Centura and Endura.
Core specifications
Project specification remarks
Type mixed I/O module (digital+analog) industrial design
Digital quantity 6 DI+4 DO optoelectronic isolation, anti-interference
Analog quantity 2 AI+2 AO voltage/current optional
Resolution AI 12 bits+sign bit; AO voltage 14 bit, current 13 bit high-precision acquisition/output
Input range AI: ± 10 V, ± 5 V, ± 2.5 V, 0-20 mA, 4-20 mA Compatible with sensors and transmitters
Output range AO: ± 10 V, 0-20 mA, 4-20 mA, can drive regulating valves, proportional valves
Isolation voltage between digital/analog/ground 500 VAC to prevent signal crosstalk
Suitable for a wide temperature environment with a working temperature range of -20 to+80 ℃
Size 318 × 208 × 76 mm standard 19 inch chassis installation
Certified CE, UL, RoHS compliant with international safety standards
Features and advantages
Mixed channel integration: One module meets the requirements of digital and analog control, saving slots and wiring.
High resolution analog: supports high-precision process parameter acquisition and control, such as temperature, pressure, and flow rate.
Stable and reliable: Designed with optoelectronic isolation and high isolation voltage, effectively suppressing electromagnetic interference and ensuring signal quality.
Wide temperature work: Suitable for harsh environments such as high temperature and high humidity in industrial sites.
Standard installation: Suitable for most industrial control cabinets, easy to maintain and expand.
Key points for installation and maintenance
install
ｉｎｓｅｒｔ the module into the 19 inch chassis slot and tighten the screws.
Connect DI/DO, AI/AO, and 24 VDC power supplies according to the terminal markings to ensure correct polarity.
debug
After checking that the power supply is normal, configure the channel parameters through the device control software.
Test the DI input signal, DO output action, and AI/AO accuracy to ensure consistency with the set values.
maintenance
Check the tightness of the terminals every 6-12 months to prevent signal abnormalities caused by looseness.
Clean the module heat sink to prevent dust accumulation from affecting heat dissipation.
Record calibration and replacement records for easy traceability.
